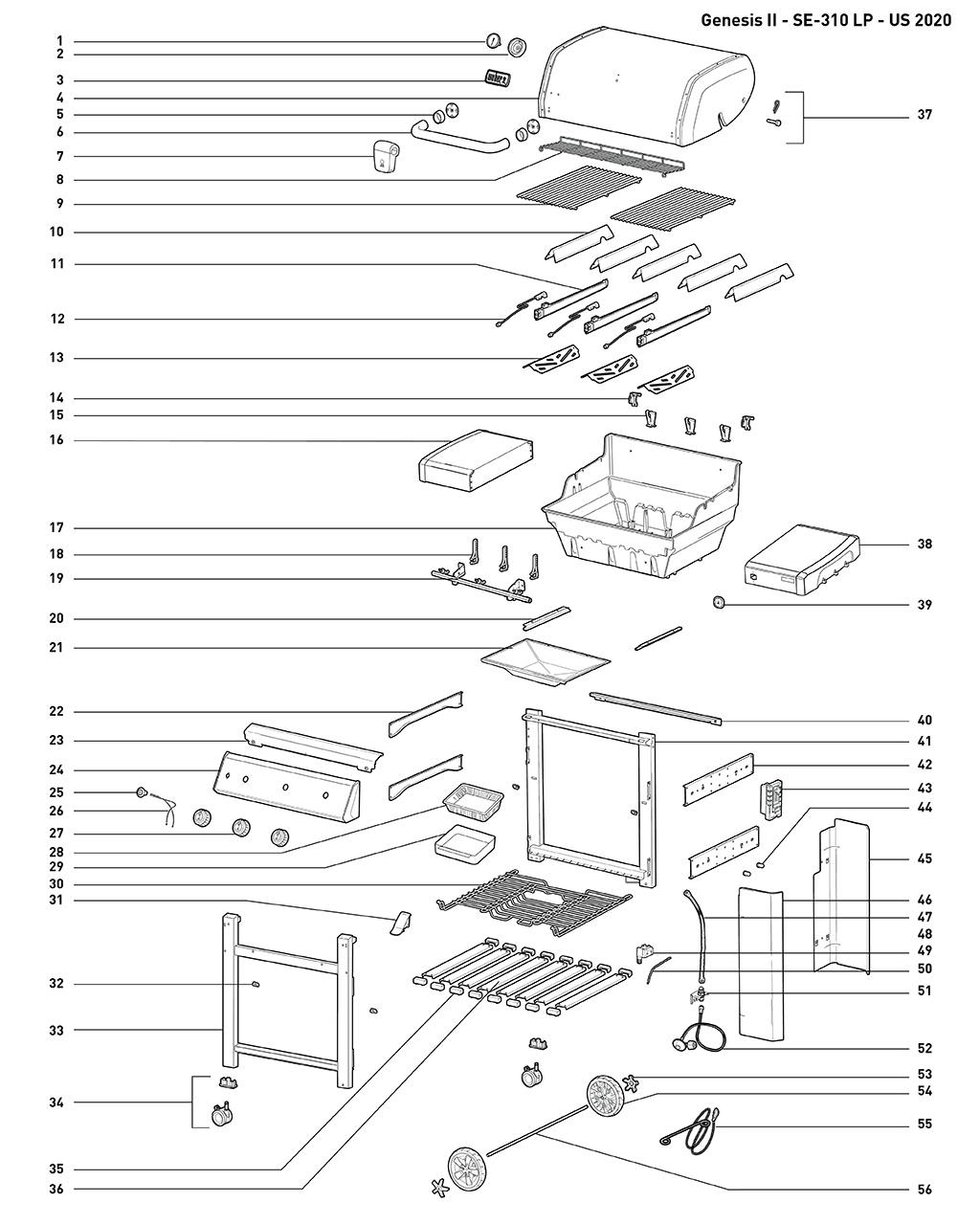

• Schematic Image 961011201
  • Genesis II SE-310 LP BLK US/CA/MX (2020)
  • 961011201

Additional Parts

Seq Part # Description Available Online
1 67088 Lid Thermometer Shop Now$21.99
2 66049 Lid Thermometer Bezel Shop Now$8.99
3 66513 Weber Logo Plate Shop Now$15.99
4 67367 Lid assembly, Genesis II 3 burner, '19, black
4 66061 Lid Bumpers Shop Now$12.99
4 66438 Lid hardware, Genesis/Searwood/Weber Smoque
5 66831 Handle bezel, Genesis II LX, '17
6 66417 Lid handle, Genesis II LX 340
7 69273 Handle light Shop Now$40.49
8 66044 Warming Rack Shop Now$50.99
9 66805 Cooking Grates Shop Now$239.99
10 66795 Flavorizer Bars Shop Now$62.99
11 67489 Burner Tubes Kit Shop Now$84.99
12 69320 Igniter electrode, black wire, 32"
12 69321 Igniter electrode, green wire, 42"
12 69319 Igniter electrode, yellow wire, 23"
13 66685 Heat Deflectors
14 69284 Warming Rack Bracket
15 66029 Burner tube clamp set, Genesis II E/SE series (qty 2)
16 68582 Hardware for fixed table, Genesis II '19
16 67376 LHS fixed table, Genesis II, '19
17 67407 Cookbox, Genesis II 310/315, '19
17 66822 Hardware, manifold, Genesis II LX
17 66824 Hardware for cookbox, Genesis II/II LX
18 66357 Clip for ignition wire routing, round set (qty 2)
19 67458 LP manifold assembly, Genesis II 310/315, '19
20 66028 Bottom tray rails, Genesis II E/SE series
21 66036 Grease tray, Genesis II E-310/340
22 67420 LHS frame connector, Genesis II, '19
23 66229 Top trim for control panel, SS, Genesis II/LX 300 series
24 66254 Control panel assembly, Genesis II E-310
25 69283 Ignition Button
26 69317 Igniter button wire, 3 burner Genesis II
27 66047 Knobs Shop Now$24.99
28 6415 Drip Pans Shop Now$10.99
29 93305 Catch Pan Kit Shop Now$14.99
30 67421 Wire rack/Catch pan holder
31 67422 Retainer for catch pan w/label
32 67447 Set of bushings for wire rack, qty. 4
33 67390 Front frame, Genesis II 310, '19
33 69325 Wire clip management 3 pack
34 67066 Caster insert kit
34 67067 Locking Casters Shop Now$33.99
35 66066 Bottom slat mounting bracket set, Genesis II E/SE series (qty 2)
36 66068 Bottom slat set, Genesis II E/SE series (qty 2)
37 66438 Lid hardware, Genesis/Searwood/Weber Smoque
38 68582 Hardware for fixed table, Genesis II '19
38 67386 RHS fixed table, Genesis II SE, '19
39 67334 iGrill cover w/snap
40 66456 Rear frame top trim, Genesis II LX 340
41 67391 Rear frame, Genesis II 310, '19
42 66218 RHS frame connector, Genesis II E/SE series
43 66232 Tank Scale Assembly Shop Now$32.99
44 66681 Hardware, tank glide buttons
45 66226 Rear tank panel, Genesis II series
45 66679 Hardware, tank panel buttons
46 66679 Hardware, tank panel buttons
46 69330 Front tank panel, Genesis II export
47 67455 Main corrugated gas line, Genesis II, '19
49 69308 Igniter kit, Genesis II 310/315 '20
49 69314 Igniter module
50 69316 Ground wire, blue, 24.25"
51 66212 Bulkhead assembly, Genesis II E-210/310
52 67069 Hose and Regulator Kit Shop Now$52.99
53 67654 Wheel insert kit, Genesis II, '19
54 67445 Wheel Shop Now$32.99
55 66533 Match holder assembly, Genesis II LX 240/340
56 66251 Axle w/hardware, Genesis II E/SE series
410 40441801 Literature kit, Genesis II 310/410 LP, US/CA
470 73043 Full Hardware Kit
470 73417 Hardware bag B, cookbox
470 66679 Hardware, tank panel buttons
470 73053 Hardware for tank panels/scale, Genesis '22
470 73432 Hardware bag D, trim
470 73036 Hardware for igniter/tank panels, Genesis II
470 73395 Hardware bag A, frame/wheel
470 73433 Hardware bag E, fixed table
510 6415 Drip Pans Shop Now$10.99
510 7204 Weber iGrill 3 Thermometer (2016) (USA) Shop Now$109.99
510 7516 Grill Out Handle Light for Spirit/Genesis/Summit
510 7621 Flavorizer Bars
510 7130 Premium Grill Cover
510 7211 Meat Temperature Probe Shop Now$16.49
510 7599 Griddle - Genesis II 300/400/600 series Shop Now$99.99
510 7652 Rotisserie - Genesis II 200/300 and 2022 Genesis 300 series Shop Now$144.99
510 7137 LP Tank Cover Shop Now$13.99
510 7212 Ambient Temperature Probe Shop Now$16.49
510 7620 Flavorizer Bars Shop Now$77.99
510 8854 Sear Grate - Genesis II 300/400/600 series
