A
|
54364
|
Assembly guide, Genesis E/S 300 LP/NG, US/CA/MX, '12
|
|
|
A
|
48902
|
Discontinued - Literature Kit, Genesis 330 LP, US/CA/MX '15
|
|
|
A
|
56826
|
Addendum for Mexico (Required for Mexico only)
|
|
|
A
|
54396
|
Lit kit, Genesis E/S 320/330 LP, USA/CA/MX, '12
|
|
|
B
|
62773
|
Hardware for table assembly, Genesis 300 series, '11
|
|
|
B
|
62776
|
Hardware for frame/rear panel, Genesis '11
|
|
|
B
|
62779
|
Hardware for control panel, Genesis '11
|
|
|
B
|
62775
|
Hardware for cookbox, Genesis 300 series, '11
|
|
|
B
|
67762
|
Hardware kit for bottom panel
|
|
|
B
|
62778
|
Hardware for heat shield/side burner, Genesis '11
|
|
|
B
|
62774
|
Guide screws for burner tubes/grease tray rails screws
|
|
|
B
|
88063
|
Hardware for tank blocker
|
|
|
B
|
62781
|
Hardware for manifold, Genesis '11
|
|
|
B
|
62777
|
Hardware for connectors, Genesis '11
|
|
|
B
|
72387
|
Hardware kit, Genesis 320/330 LP, '15
|
|
|
B
|
62780
|
Hardware for bulkhead, Genesis '11
|
|
|
B
|
88206
|
Hardware for lid assembly
|
|
|
B
|
67765
|
Hardware for side burner table, Genesis
|
|
|
B
|
88065
|
Glide buttons and hardware
|
|
|

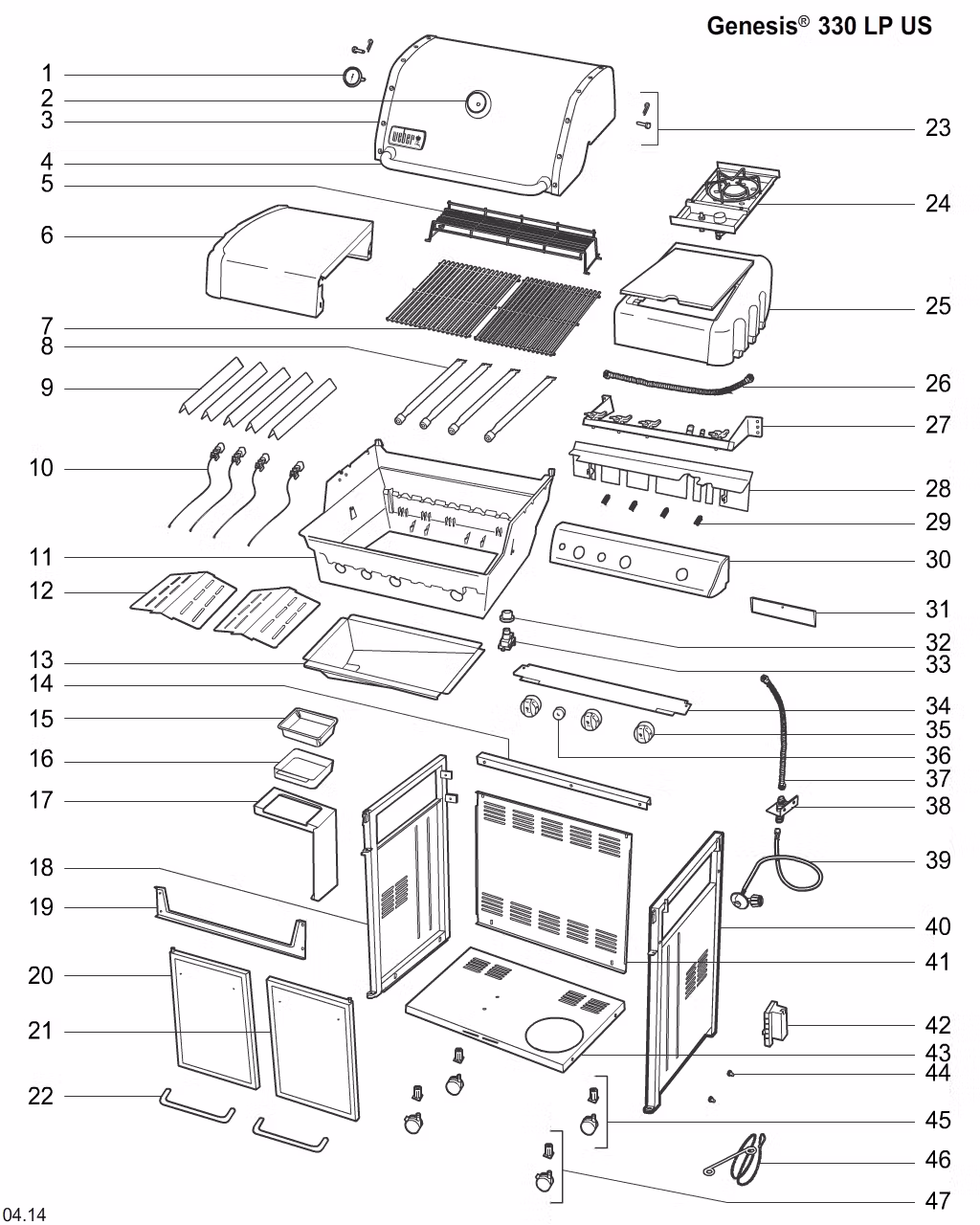

1
|
67088
|
Lid Thermometer
|
Shop Now$21.99
|
|
2
|
67717
|
Bezel for Genesis/Summit, '07
|
|
|
3
|
64854
|
Lid assembly, Genesis 300, smoke/steel gray '14
|
|
|
3
|
68223
|
Lid assembly, Genesis 330 '11, green
|
|
|
3
|
68220
|
Lid assembly, Genesis 330 '11, copper
|
|
|
3
|
62790
|
Lid assembly, Genesis 330 '11, espresso brown
|
|
|
3
|
68219
|
Lid assembly, Genesis 330 '11, black
|
|
|
3
|
66513
|
Weber Logo Plate
|
Shop Now$15.99
|
|
4
|
65908
|
Hardware pack for handle
|
|
|
4
|
67718
|
Lid Handle
|
Shop Now$51.99
|
|
5
|
65054
|
Warming Rack
|
Shop Now$47.99
|
|
6
|
62750
|
LHS table assembly, Genesis '11
|
|
|
6
|
62773
|
Hardware for table assembly, Genesis 300 series, '11
|
|
|
7
|
65937
|
Cooking Grates
|
Shop Now$135.99
|
|
8
|
62752
|
Burner Tube Kit
|
Shop Now$65.99
|
|
8
|
62774
|
Guide screws for burner tubes/grease tray rails screws
|
|
|
8
|
62753
|
Sear Burner Tube
|
|
|
9
|
7620
|
Flavorizer Bars
|
Shop Now$77.99
|
|
9
|
62783
|
Flavorizer Bars
|
Shop Now$65.99
|
|
10
|
65946
|
Igniter kit, Genesis 330, '14
|
Shop Now$52.99
|
|
10
|
62754
|
Ignition electrode set, Genesis 330 '11
|
|
|
11
|
62786
|
Grease tray rails (set)
|
|
|
11
|
62775
|
Hardware for cookbox, Genesis 300 series, '11
|
|
|
11
|
62755
|
Cookbox, Genesis 330, '11
|
|
|
12
|
65505
|
Heat Deflectors
|
Shop Now$48.99
|
|
13
|
62757
|
Grease tray, Genesis '11, black
|
|
|
14
|
67844
|
Rear frame connector, Genesis '08
|
|
|
14
|
62777
|
Hardware for connectors, Genesis '11
|
|
|
15
|
6415
|
Drip Pans
|
Shop Now$10.99
|
|
16
|
93305
|
Catch Pan Kit
|
Shop Now$14.99
|
|
17
|
82181
|
Tank blocker, Genesis '13, US
|
|
|
17
|
88063
|
Hardware for tank blocker
|
|
|
18
|
70332
|
Adjustable door hinge
|
|
|
18
|
62776
|
Hardware for frame/rear panel, Genesis '11
|
|
|
18
|
82179
|
LHS frame, Genesis '13
|
|
|
19
|
62777
|
Hardware for connectors, Genesis '11
|
|
|
19
|
62760
|
Front connector frame, Genesis '11
|
|
|
20
|
61452
|
LHS door assembly, Genesis, copper, '11
|
|
|
20
|
61450
|
LHS door assembly, Genesis, black, '11
|
|
|
20
|
61451
|
LHS door assembly, Genesis, green, '11
|
|
|
20
|
61453
|
LHS door assembly, Genesis, espresso, '11
|
|
|
20
|
66848
|
Door kit, steel gray, Genesis 300
|
|
|
21
|
62745
|
RHS door assembly, Genesis, black, '11
|
|
|
21
|
62748
|
RHS door assembly, Genesis, espresso, '11
|
|
|
21
|
62746
|
RHS door assembly, Genesis, green, '11
|
|
|
21
|
62747
|
RHS door assembly, Genesis, copper, '11
|
|
|
21
|
66848
|
Door kit, steel gray, Genesis 300
|
|
|
22
|
88082
|
Door Handle
|
Shop Now$36.99
|
|
23
|
88206
|
Hardware for lid assembly
|
|
|
24
|
67775
|
Side Burner LP Assembly Genesis
|
|
|
24
|
91174
|
Igniter Kit (for side burner)
|
Shop Now$39.99
|
|
24
|
65506
|
Trivet for side burner, SS
|
|
|
24
|
67765
|
Hardware for side burner table, Genesis
|
|
|
24
|
81252
|
Rubber lid bumper for side burner (Qty 1)
|
|
|
24
|
91173
|
Side burner ring
|
|
|
24
|
30125801
|
Control knob, side burner, grey
|
|
|
25
|
62773
|
Hardware for table assembly, Genesis 300 series, '11
|
|
|
25
|
62751
|
Side burner table assembly, Genesis '11
|
|
|
25
|
66463
|
Side burner lid w/hardware, Summit '17
|
|
|
25
|
67764
|
Hinge rod and clip for side burner lid, Genesis '07
|
|
|
26
|
62761
|
Side burner gas line w/fitting, Genesis '11
|
|
|
27
|
62762
|
LP Manifold assembly, Genesis 330 '11
|
|
|
27
|
62781
|
Hardware for manifold, Genesis '11
|
|
|
28
|
62778
|
Hardware for heat shield/side burner, Genesis '11
|
|
|
28
|
65085
|
Rain/heat shield, Genesis '14
|
|
|
29
|
65084
|
Wire clips w/hardware, Genesis
|
|
|
30
|
62764
|
Control panel, Genesis 330 '11
|
|
|
30
|
65504
|
Control panel hardware '15
|
|
|
30
|
62779
|
Hardware for control panel, Genesis '11
|
|
|
30
|
65500
|
Control panel, Genesis 330 '15
|
|
|
31
|
62765
|
Cookbox Heat Shield
|
|
|
32
|
66836
|
Igniter
|
Shop Now$50.99
|
|
33
|
88826
|
Ignition Module
|
Shop Now$25.99
|
|
34
|
62766
|
Control panel bottom (wind deflector), Genesis '11
|
|
|
34
|
62779
|
Hardware for control panel, Genesis '11
|
|
|
35
|
88848
|
Knobs
|
Shop Now$47.99
|
|
36
|
40255403
|
Sear Knob
|
Shop Now$10.99
|
|
37
|
62772
|
Corrugated main gas line, Genesis '11, SS
|
|
|
38
|
62768
|
Bulkhead assembly, Genesis '11
|
|
|
38
|
62780
|
Hardware for bulkhead, Genesis '11
|
|
|
38
|
69987
|
Bulkhead assembly, SAE3/8, Genesis '13
|
|
|
39
|
65909
|
QCC1 hose and regulator, 30"
|
Shop Now$45.99
|
|
39
|
81611
|
Hose clip w/tag, Genesis/Summit '07
|
|
|
40
|
69992
|
RHS frame assembly
|
|
|
40
|
70332
|
Adjustable door hinge
|
|
|
40
|
62776
|
Hardware for frame/rear panel, Genesis '11
|
|
|
41
|
67755
|
Rear panel with hardware
|
|
|
41
|
62776
|
Hardware for frame/rear panel, Genesis '11
|
|
|
42
|
81803
|
Small hardware pack
|
|
|
42
|
88214
|
Tank scale, Genesis '07
|
|
|
43
|
67762
|
Hardware kit for bottom panel
|
|
|
43
|
82793
|
Bottom Panel
|
|
|
43
|
91357
|
Door Magnet
|
Shop Now$8.99
|
|
44
|
88065
|
Glide buttons and hardware
|
|
|
45
|
70359
|
Caster
|
Shop Now$31.99
|
|
45
|
79499
|
Caster
|
|
|
46
|
81544
|
Match holder
|
|
|
47
|
70360
|
Caster
|
|
|
47
|
79500
|
Locking Caster
|
Shop Now$32.99
|
|
410
|
48902
|
Discontinued - Literature Kit, Genesis 330 LP, US/CA/MX '15
|
|
|
410
|
54364
|
Assembly guide, Genesis E/S 300 LP/NG, US/CA/MX, '12
|
|
|
410
|
54396
|
Lit kit, Genesis E/S 320/330 LP, USA/CA/MX, '12
|
|
|
470
|
62773
|
Hardware for table assembly, Genesis 300 series, '11
|
|
|
470
|
62776
|
Hardware for frame/rear panel, Genesis '11
|
|
|
470
|
62779
|
Hardware for control panel, Genesis '11
|
|
|
470
|
66836
|
Igniter
|
Shop Now$50.99
|
|
470
|
72387
|
Hardware kit, Genesis 320/330 LP, '15
|
|
|
470
|
88065
|
Glide buttons and hardware
|
|
|
470
|
62774
|
Guide screws for burner tubes/grease tray rails screws
|
|
|
470
|
62775
|
Hardware for cookbox, Genesis 300 series, '11
|
|
|
470
|
62777
|
Hardware for connectors, Genesis '11
|
|
|
470
|
62778
|
Hardware for heat shield/side burner, Genesis '11
|
|
|
470
|
62780
|
Hardware for bulkhead, Genesis '11
|
|
|
470
|
62781
|
Hardware for manifold, Genesis '11
|
|
|
470
|
67762
|
Hardware kit for bottom panel
|
|
|
470
|
67765
|
Hardware for side burner table, Genesis
|
|
|
470
|
81803
|
Small hardware pack
|
|
|
470
|
88063
|
Hardware for tank blocker
|
|
|
470
|
88206
|
Hardware for lid assembly
|
|
|
480
|
7629
|
Igniter Kit
|
Shop Now$58.99
|
|
480
|
88848
|
Knobs
|
Shop Now$47.99
|
|
480
|
7627
|
Hose and Regulator Kit
|
|
|
480
|
62752
|
Burner Tube Kit
|
Shop Now$65.99
|
|
480
|
62754
|
Ignition electrode set, Genesis 330 '11
|
|
|
480
|
91174
|
Igniter Kit (for side burner)
|
Shop Now$39.99
|
|
480
|
93305
|
Catch Pan Kit
|
Shop Now$14.99
|
|
510
|
7130
|
Premium Grill Cover
|
|
|
510
|
7516
|
Grill Light - Spirit, Genesis, & Summit
|
|
|
510
|
7578
|
Weber Style Premium Cast-Iron Plancha Genesis 300 Series
|
|
|
510
|
7421
|
Griddle
|
|
|
510
|
7616
|
Grilling Basket Set
|
|
|
510
|
7566
|
Griddle
|
|
|
510
|
7652
|
Rotisserie - Genesis II 200/300 and 2022 Genesis 300 series
|
Shop Now$144.99
|
|
510
|
7615
|
Elevations Tiered Grilling System
|
|
|
510
|
8838
|
Poultry Roaster
|
Shop Now$72.99
|
|
510
|
7549
|
Vinyl cover for Genesis Island Cabinetry
|
|
|
510
|
7587
|
Cooking Grates
|
|
|
510
|
7618
|
Skewer Set
|
|
|
510
|
7617
|
Expansion Rack
|
|
|
510
|
8836
|
Pizza Stone
|
Shop Now$59.99
|
|
510
|
8834
|
Sear Grate
|
Shop Now$59.99
|
|
510
|
8841
|
Ebelskiver Pan
|
|
