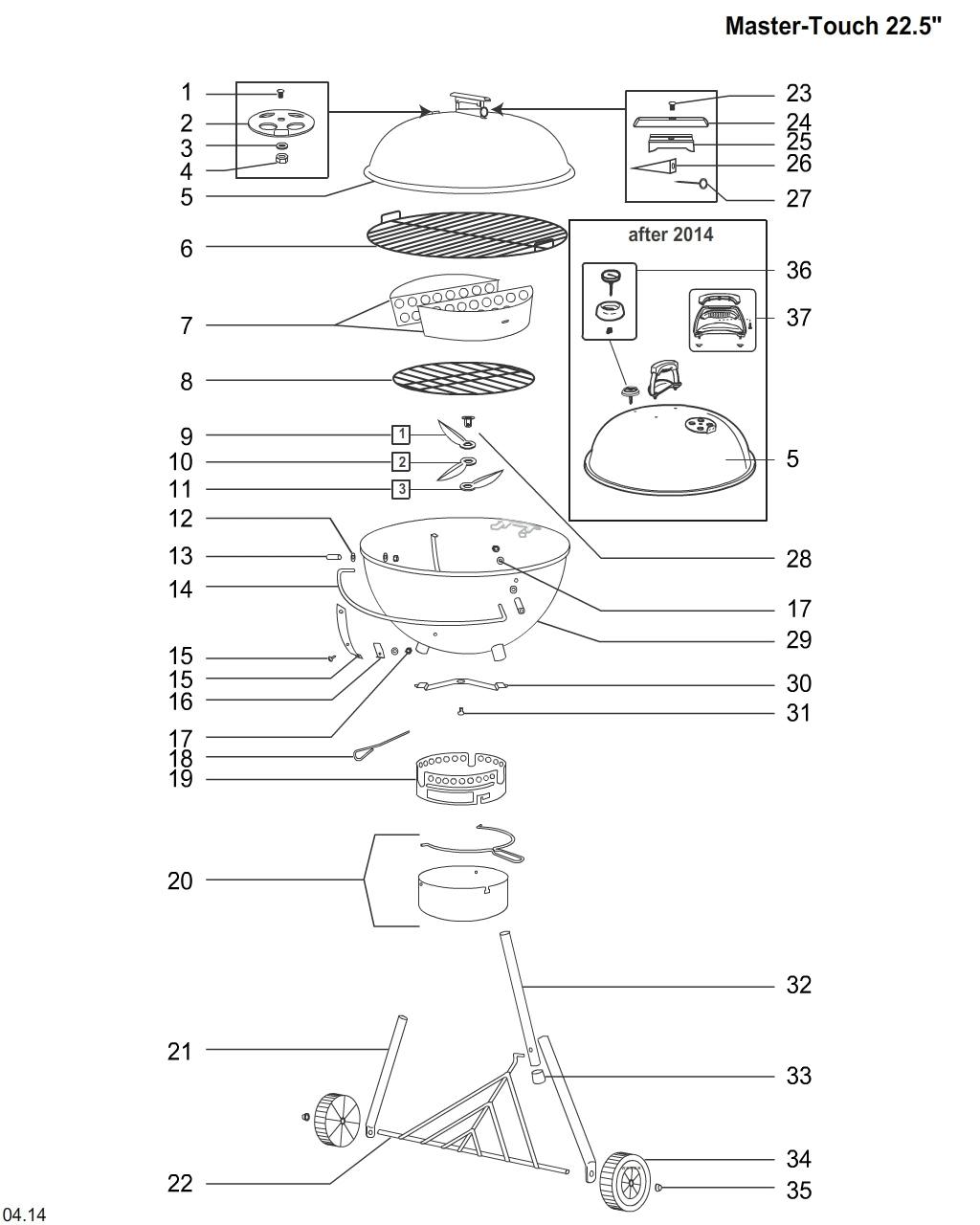

  • Schematic Image 771001
  • Master-Touch 22.5" Blk (USA)
  • 771001

Additional Parts

Seq Part # Description Available Online
A 86050 Instruction sheet for the Master-Touch Charcoal Kettle. USA. 1993 through 1998.
D 91733 Hardware kit, Master-Touch '15
B 62620 Charcoal User Guide
1 63070 Damper kit, '10
2 63070 Damper kit, '10
3 63070 Damper kit, '10
4 63070 Damper kit, '10
5 65173 Lid assembly, 22.5" Performer/Master-Touch, green '15
5 65147 Lid assembly, 22.5" Performer/Master-Touch, black '15
5 65176 Lid assembly, 22.5" Performer/Master-Touch, dark blue, '15
6 80629 Cooking grate, 22.5", hinged Shop Now$39.99
7 62423 Char-Basket assembly (qty. 1)
8 65947 Charcoal grate for 22" kettle Shop Now$19.99
9 90993 One-Touch cleaning kit 22.5", '12 Shop Now$24.99
10 90993 One-Touch cleaning kit 22.5", '12 Shop Now$24.99
11 90993 One-Touch cleaning kit 22.5", '12 Shop Now$24.99
12 87925 1/4-inch aluminum flat washer
13 63049 Hardware for lid support
14 63058 Lid bail w/hardware, Performer & Master-Touch Shop Now$36.99
15 63058 Lid bail w/hardware, Performer & Master-Touch Shop Now$36.99
16 63058 Lid bail w/hardware, Performer & Master-Touch Shop Now$36.99
17 63058 Lid bail w/hardware, Performer & Master-Touch Shop Now$36.99
18 90993 One-Touch cleaning kit 22.5", '12 Shop Now$24.99
21 65130 Leg kit, 18.5"/22.5" '15 Shop Now$46.99
22 80695 Triangle for 22.5" Kettles
23 80671 Handle kit, charcoal, qty 1, '10 Shop Now$14.99
24 80671 Handle kit, charcoal, qty 1, '10 Shop Now$14.99
25 80671 Handle kit, charcoal, qty 1, '10 Shop Now$14.99
27 62538 Thermometer, dual-purpose. Shop Now$9.99
28 90993 One-Touch cleaning kit 22.5", '12 Shop Now$24.99
32 65130 Leg kit, 18.5"/22.5" '15 Shop Now$46.99
33 87201 Leg cap tube, white
34 65930 Wheel, 6", w/Weber name Shop Now$18.99
35 987101 Replacement hubcaps (pack of 3)
36 63027 Bezel for thermometer
36 60540 Thermometer, Q/Spirit/Genesis/Charcoal Shop Now$15.99
37 80672 Handle kit w/shield, gray, '15 Shop Now$24.99
410 86050 Instruction sheet for the Master-Touch Charcoal Kettle. USA. 1993 through 1998.
470 90993 One-Touch cleaning kit 22.5", '12 Shop Now$24.99
480 80671 Handle kit, charcoal, qty 1, '10 Shop Now$14.99
510 7149 Cover, for 22.5" kettle
510 7403 Charcoal briquette holders (Pair) Shop Now$25.99
510 8834 Weber Original Gourmet BBQ System Sear Grate Shop Now$59.49
510 8838 Weber Original Gourmet BBQ System Poultry Roaster Shop Now$72.99
510 2290 Rotisserie for 22.5" Charcoal Kettle Shop Now$234.99
510 7401 Tool holder for 18.5" and 22.5" charcoal grills Shop Now$8.49
510 7454 Cover for kettles using Kettlemate work table
510 8836 Weber Original Gourmet BBQ System Pizza Stone Shop Now$59.49
510 21301 Condiment holder. Fits all 22-1/2 inch charcoal kettles.
510 7176 Grill cover, 22" kettles, gray Shop Now$21.99
510 7421 Weber Original Gourmet BBQ System Griddle Shop Now$59.49
510 8835 Weber Original Gourmet BBQ System Hinged Cooking Grate (plated steel) Shop Now$59.49
510 8841 Weber Original Gourmet BBQ System Ebelskiver - discontinued
