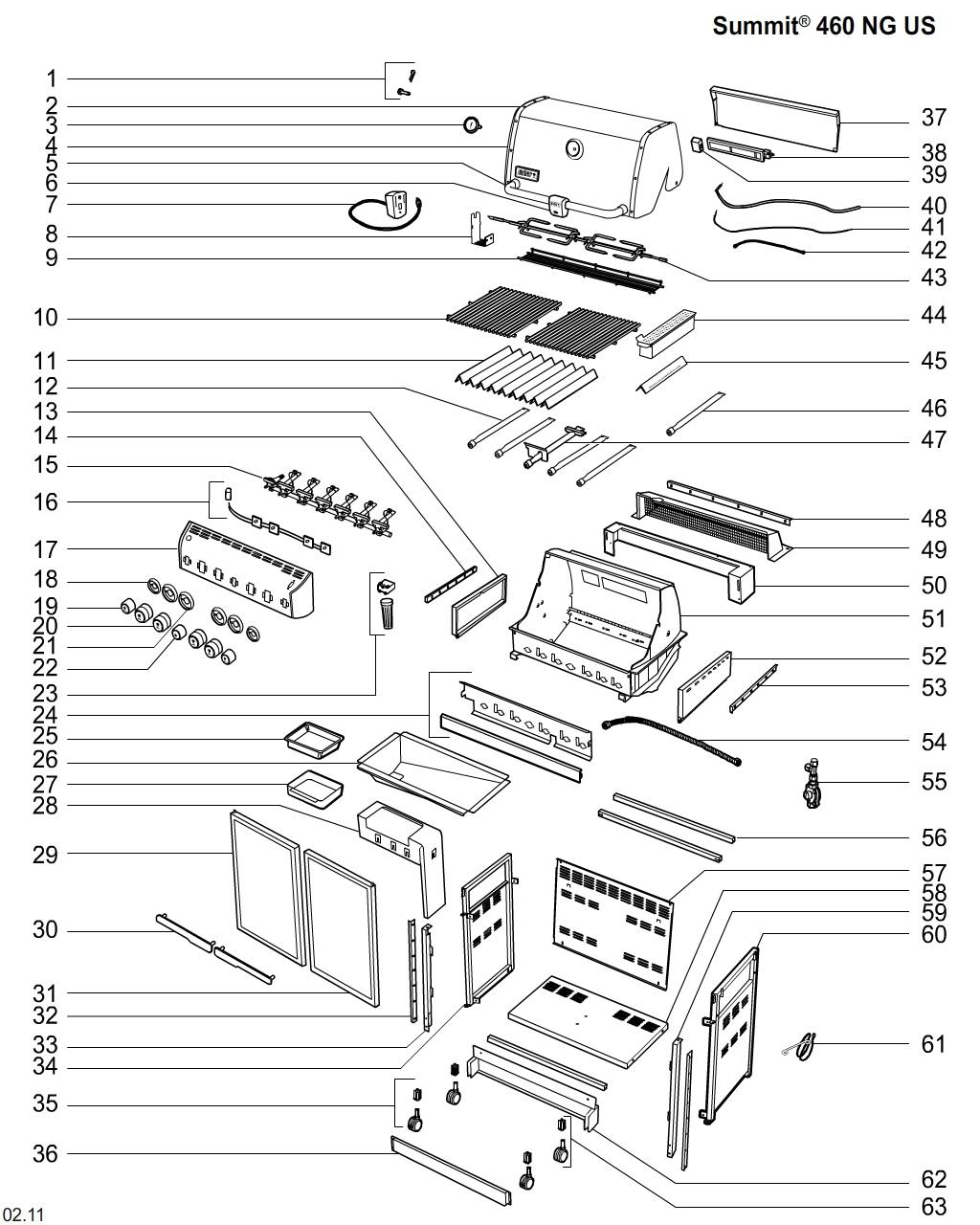

  • Schematic Image 7260001
  • Summit S-460 Built-In NG SS (2012) (USA/Canada/Mexico)
  • 7260001

Additional Parts

Seq Part # Description Available Online
B 62776 Hardware for frame/rear panel, Genesis '11
B 84116 Rotisserie hardware for tuckaway rotisserie, w/forks, '10
B 88063 Hardware for tank blocker
B 88210 Hardware for burner tubes, Genesis/Summit '07
A 56572 Literature kit, Summit 460 built-in NG, '11
B 67762 Hardware kit for bottom panel
B 84272 Hardware for Summit built-in series, '11
B 88067 Manifold hardware, Summit '07
B 88212 Hardware for bulkhead, Summit '07
B 60600 Hardware for cookbox, Summit '10
B 70392 Hardware for IR cover
B 85636 Hardware (10-32 x .375 philips pan head screw, qty 4)
B 88208 Hardware for bezels/control panel
B 88231 Hardware kit for control panel, Summit '11
1 70302 Hinge pin/cotter pin kit
2 66513 Logo plate, SS
2 66379 Lid assembly, SS, Summit 400 series
3 67088 Thermometer, '18
4 67717 Bezel for Genesis/Summit, '07
5 65908 Hardware pack for handle
5 70370 Handle with bezels/spacers/hardware, Summit 400 series Shop Now$41.99
6 69273 Handle light
7 65579 Rotisserie motor, Type B, '15
8 70305 Bracket for rotisserie motor, with hardware
8 70888 Plastic latch w/spring
9 70191 Warming rack, Summit 400 '07 Shop Now$38.99
10 67550 Set of stainless steel grates, Summit 440/450/460/470 Shop Now$233.99
10 70372 Rod-style grate, SS, 11.8", qty. 1
11 67668 Stainless steel flavorizer bars, Summit 440/450/460/470 Shop Now$71.99
11 70375 Flavorizer bars, SS, set of 4
12 70306 Single burner tube for main burner, Summit '07, qty 1
12 67557 Burner tube kit, Summit 460/470
13 85598 Side top panel for LHS, Summit 460/660 built-in, '11
14 85619 Top trim for LHS, Summit 460/660 built-in series, '11
15 79166 NG manifold assembly, Summit E/S 460/470
15 88067 Manifold hardware, Summit '07
16 70881 Wiring harness, Summit 470
16 70189 Momentary light switch, Summit '11
17 66271 Control panel, SS, Summit 460/470 '17
17 88231 Hardware kit for control panel, Summit '11
18 70883 Small bezel w/fasteners, Summit 470/670
18 88208 Hardware for bezels/control panel
19 70378 Control knob for IR burner/smoker burner, qty 1 Shop Now$11.99
20 67691 Control Knob Kit, Summit 460/470 Shop Now$62.99
20 70867 Lighted control knob assembly, qty. 2 (pre-2012 models) Shop Now$31.99
20 91538 Lighted control knob assembly, qty 2 (2012 and later models)
21 70318 Bezel for main burners with hardware
21 88208 Hardware for bezels/control panel
22 70868 Sear knob assembly Shop Now$14.99
23 70879 Battery pack head
23 70880 Battery pack housing
24 88210 Hardware for burner tubes, Genesis/Summit '07
24 70873 Heat shield/water baffel, Summit 470
25 6498 Drip pan (qty 10) Shop Now$12.49
26 70115 Grease tray, Summit 400 '11, SS
27 70379 Catch pan kit
28 70323 Tank blocker, Summit 400 series, export
28 88063 Hardware for tank blocker
29 66279 LHS door assembly, SS, S-460 '17
29 91357 Door magnet
30 70327 Door handles with hardware Shop Now$46.99
31 66272 RHS door assembly, SS, S-460 '17
31 91357 Door magnet
32 85618 Front trim, Summit 460/660 built-in series, '11
33 85596 Left front trim piece
33 85636 Hardware (10-32 x .375 philips pan head screw, qty 4)
34 70981 LHS frame assembly, Summit '11, US
34 70332 Adjustable door hinge
35 70360 Locking caster, Spirit ('09-'12), Genesis ('07-'11) Summit ('07-'11) qty 1 Shop Now$22.99
36 85587 Front bottom panel, Summit 460 built-in, '11
37 70392 Hardware for IR cover
37 85649 Rain cover for IR burner, Summit 460 built-in
38 70389 IR burner with bracket
38 70385 NG Orifice for IR burner, with nut
39 70338 Cover box for IR burner
40 20201822 Thermocouple nut
40 70390 Thermocouple with electrode and wire
41 70390 Thermocouple with electrode and wire
41 20201822 Thermocouple nut
42 70398 Gas line for IR burner, 64"
43 91486 Hardware for Summit rotisserie, includes forks
43 80622 Rotisserie shaft, Summit E/S 400 series, '12
43 84116 Rotisserie hardware for tuckaway rotisserie, w/forks, '10
44 70381 Smoker box assembly
45 70187 Chipper grate, Summit '07 smoker
46 70307 Smoker burner tube, Summit '07
47 70865 Sear burner tube kit, Summit 470
48 85653 Rear trim, Summit 4-460 built-in, '11 (filler strip)
49 85636 Hardware (10-32 x .375 philips pan head screw, qty 4)
49 85637 Rear vent housing, Summit 460 built-in
50 85636 Hardware (10-32 x .375 philips pan head screw, qty 4)
50 85593 Rear top panel, Summit 460 built-in, '11
51 64850 Flavorizer bar brackets, Summit 400 '14
51 60600 Hardware for cookbox, Summit '10
51 70339 Silicone bumpers, quantity 4
51 64845 Cookbox, Summit 460/470 '14
52 85599 Side top panel for RHS, Summit 460/660 built-in, '11
53 85620 Top trim for RHS, Summit 460/660 built-in series, '11
54 97840 Corrugated gas line for Summit built-in grill models.
55 82795 NG bulkhead assembly, Summit built-in, US
56 62776 Hardware for frame/rear panel, Genesis '11
56 70350 Frame connector and hardware, Summit 4 burner
57 70352 Rear panel, LP Summit 400 series
57 67762 Hardware kit for bottom panel
58 67762 Hardware kit for bottom panel
58 91317 Bottom panel, Summit Platinum 4 burner NG, '10
59 85597 Right front trim piece
59 85636 Hardware (10-32 x .375 philips pan head screw, qty 4)
60 70332 Adjustable door hinge
60 70193 RHS frame assembly, Summit NG '11, EXP
61 81544 Match holder
62 85589 Rear bottom panel, Summit 460 built-in, '11
62 62776 Hardware for frame/rear panel, Genesis '11
63 70359 Caster w/o lock, Spirit ('09-'12), Genesis/Summit ('07-'11) qty 1 Shop Now$22.99
410 56572 Literature kit, Summit 460 built-in NG, '11
410 48534 Installation Guide, Summit 460/660 NG Built-in
470 62776 Hardware for frame/rear panel, Genesis '11
470 84116 Rotisserie hardware for tuckaway rotisserie, w/forks, '10
470 88063 Hardware for tank blocker
470 88210 Hardware for burner tubes, Genesis/Summit '07
470 88231 Hardware kit for control panel, Summit '11
470 60600 Hardware for cookbox, Summit '10
470 67762 Hardware kit for bottom panel
470 84272 Hardware for Summit built-in series, '11
470 88067 Manifold hardware, Summit '07
470 88211 Retainer clip for thermocouple/wires
470 91486 Hardware for Summit rotisserie, includes forks
470 70392 Hardware for IR cover
470 85636 Hardware (10-32 x .375 philips pan head screw, qty 4)
470 88208 Hardware for bezels/control panel
470 88212 Hardware for bulkhead, Summit '07
480 70379 Catch pan kit
510 6498 Drip pan (qty 10) Shop Now$12.49
510 7577 Weber Style Premium Cast-Iron Plancha Summit 400/600 Series
510 7616 Weber Elevations Tiered Cooking System Basket with Frame
510 8834 Weber Original Gourmet BBQ System Sear Grate Shop Now$47.99
510 8841 Weber Original Gourmet BBQ System Ebelskiver - discontinued
510 30174399 Cover for Summit 400 Built-in, '16
510 7404 Griddle for Summit E/S 420/670 Shop Now$85.99
510 7585 Gourmet BBQ System Cooking Grate, Summit series
510 7617 Weber Elevations Tiered Cooking System Expansion Rack Shop Now$13.99
510 8836 Weber Original Gourmet BBQ System Pizza Stone
510 21322 NG side burner for Summit Platinum Built-in
510 7421 Weber Original Gourmet BBQ System Griddle Shop Now$47.99
510 7615 Weber Elevations Tiered Cooking System Grill Rack and Skewer Set
510 7618 Weber Elevations Tiered Cooking System 4-Piece Skewer Set
510 8838 Weber Original Gourmet BBQ System Poultry Roaster Shop Now$59.99
510 83004 Built in Summit Dual Side Burner NG
