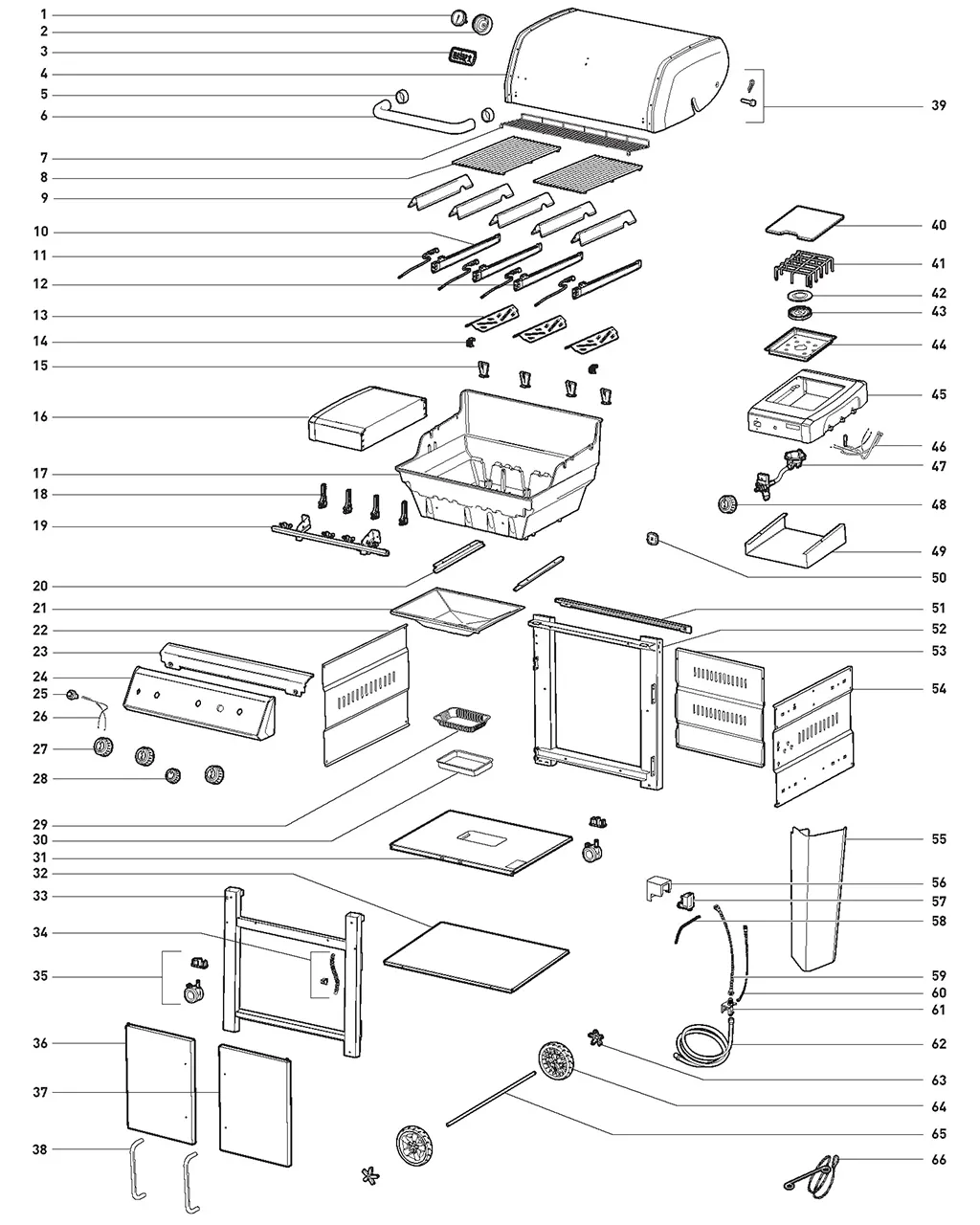

A
|
40435106
|
Literature kit, Genesis II 335/435 NG, US/CA
|
|
|
1
|
67088
|
Thermometer, '18
|
|
|
2
|
66049
|
Thermometer bezel, Genesis
|
Shop Now$8.00
|
|
3
|
66513
|
Logo plate, SS
|
Shop Now$14.99
|
|
4
|
67368
|
Lid assembly, Genesis II 3 burner, SS, '19
|
|
|
4
|
66438
|
Lid hardware, Genesis/Searwood
|
|
|
4
|
66061
|
Lid bumpers (qty 2)
|
Shop Now$11.99
|
|
5
|
66831
|
Handle bezel, Genesis II LX, '17
|
|
|
6
|
66417
|
Lid handle, Genesis II LX 340
|
|
|
7
|
66044
|
Warming rack, Genesis II E-310
|
|
|
8
|
66802
|
Set of cooking grates, SS, 7 mm, Genesis II LX 340
|
Shop Now$139.99
|
|
9
|
66795
|
Stainless steel flavorizer bars, Genesis II LX 340 (qty 5)
|
Shop Now$56.99
|
|
10
|
67491
|
NG main burner tube kit, Genesis II 3 burner, '19
|
|
|
11
|
66365
|
Igniter electrode w/wire, 32", red
|
|
|
11
|
66363
|
Igniter electrode w/wire, 46", green
|
|
|
11
|
66362
|
Igniter electrode w/wire, 36", black
|
|
|
11
|
66833
|
Igniter electrode w/wire, 27", yellow
|
|
|
12
|
67462
|
Sear burner tube, Genesis II NG '19
|
|
|
13
|
66685
|
Heat deflector, SS, Genesis II LX 340 (qty 3)
|
Shop Now$37.99
|
|
14
|
69284
|
Warming rack bracket set
|
|
|
15
|
66029
|
Burner tube clamp set, Genesis II E/SE series (qty 2)
|
|
|
16
|
67376
|
LHS fixed table, Genesis II, '19
|
|
|
16
|
68582
|
Hardware for fixed table, Genesis II '19
|
|
|
17
|
66824
|
Hardware for cookbox, Genesis II/II LX
|
|
|
17
|
66822
|
Hardware, manifold, Genesis II LX
|
|
|
17
|
67408
|
Cookbox, Genesis II 330/335, '19
|
|
|
18
|
66357
|
Clip for ignition wire routing, round set (qty 2)
|
|
|
19
|
67461
|
NG Manifold assembly, Genesis II 330/335 NG '19
|
|
|
20
|
66028
|
Bottom tray rails, Genesis II E/SE series
|
|
|
21
|
66036
|
Grease tray, Genesis II E-310/340
|
|
|
22
|
66766
|
LHS panel, Genesis II LX series
|
|
|
23
|
66229
|
Top trim for control panel, SS, Genesis II/LX 300 series
|
|
|
24
|
67418
|
Control panel assembly, Genesis II 335 '19, US
|
|
|
25
|
69283
|
Igniter/momentary switch, Genesis II '20
|
|
|
26
|
66376
|
Igniter wire assembly, Genesis II E-310
|
|
|
27
|
66047
|
Control knob set, Genesis II 310/610 (qty 3)
|
Shop Now$22.99
|
|
28
|
67444
|
Sear knob, Genesis II '19, qty. 1
|
Shop Now$10.00
|
|
29
|
6415
|
Aluminum drip pans - small (10 pack)
|
Shop Now$10.49
|
|
30
|
93305
|
Aluminum catch pan kit
|
Shop Now$13.99
|
|
31
|
66421
|
Catch pan holder panel, Genesis II LX 340
|
|
|
31
|
83320
|
Door magnet
|
|
|
32
|
66759
|
Bottom panel, Genesis II LX 340
|
|
|
33
|
67388
|
Front frame
|
|
|
34
|
67693
|
Igniter wire conduit clamp, 3 pack
|
|
|
34
|
67161
|
Conduit tube for igniter wires, black
|
|
|
35
|
67066
|
Caster insert kit
|
|
|
35
|
67067
|
Casters (qty 2)
|
Shop Now$31.00
|
|
36
|
67443
|
Door kit, Genesis II 3 burner, '19, SS
|
|
|
36
|
67442
|
LHS Door w/label, Genesis II 3 burner, '19, SS
|
|
|
37
|
67443
|
Door kit, Genesis II 3 burner, '19, SS
|
|
|
37
|
67436
|
RHS Door, Genesis II 3 burner, '19, SS
|
|
|
38
|
69285
|
Door handle w/bezels (qty 1)
|
|
|
39
|
66438
|
Lid hardware, Genesis/Searwood
|
|
|
40
|
66401
|
Side burner lid, Genesis II LX series
|
|
|
41
|
66399
|
Side burner grate/trivet, Genesis II LX series
|
|
|
42
|
66400
|
Side burner cap
|
|
|
43
|
91173
|
Side burner ring
|
|
|
44
|
66397
|
Side burner tray, Genesis II LX series
|
|
|
45
|
68582
|
Hardware for fixed table, Genesis II '19
|
|
|
45
|
67385
|
RHS side burner table, Genesis II, '19
|
|
|
46
|
67534
|
Ignition wires for side burner, Genesis II 330/335
|
|
|
47
|
67527
|
NG Side burner valve/cup
|
|
|
48
|
66398
|
Control knob, side burner, Genesis II LX series
|
Shop Now$16.00
|
|
49
|
66396
|
Heat/water deflector, side burner, Genesis II LX series
|
|
|
49
|
67661
|
Wire clip w/adhesive for side burner/green wires
|
|
|
50
|
67334
|
iGrill cover w/snap
|
|
|
51
|
66456
|
Rear frame top trim, Genesis II LX 340
|
|
|
52
|
67389
|
Rear frame, platinum
|
|
|
53
|
66763
|
Rear panel, Genesis II LX 340
|
|
|
54
|
67425
|
RHS panel, Genesis II NG '19
|
|
|
55
|
67423
|
NG Panel, ignition mount
|
|
|
55
|
66679
|
Hardware, tank panel buttons
|
|
|
56
|
66359
|
Igniter module cover, Genesis II/LX 600 series
|
|
|
57
|
67532
|
Igniter kit, Genesis II 330/335, '19
|
Shop Now$127.99
|
|
57
|
66261
|
Igniter module, Genesis II/LX 600 series
|
|
|
58
|
67536
|
Ground wire for sideburner, Genesis II 330/335
|
|
|
59
|
67455
|
Main corrugated gas line, Genesis II, '19
|
|
|
60
|
66519
|
Side burner gas line w/QD fitting, Genesis II LX series
|
|
|
61
|
66518
|
Bulkhead assembly, Genesis II LX 240/340
|
|
|
62
|
99263
|
NG hose w/quick disconnect - 3/8" hose
|
Shop Now$76.99
|
|
63
|
67654
|
Wheel insert kit, Genesis II, '19
|
|
|
64
|
67445
|
Wheel w/insert, Genesis II, '19
|
Shop Now$29.99
|
|
65
|
66251
|
Axle w/hardware, Genesis II E/SE series
|
|
|
66
|
66533
|
Match holder assembly, Genesis II LX 240/340
|
|
|
410
|
40435106
|
Literature kit, Genesis II 335/435 NG, US/CA
|
|
|
470
|
73403
|
Hardware kit, Genesis II LP, '19
|
|
|
470
|
73432
|
Hardware bag D, trim
|
|
|
470
|
73436
|
Hardware bag E, igniter/bulkhead, '19
|
|
|
470
|
73397
|
Hardware bag G, fixed table, '19
|
|
|
470
|
73418
|
Hardware bag F, doors, '19
|
|
|
470
|
73435
|
Hardware bag C, cookbox '19
|
|
|
470
|
66679
|
Hardware, tank panel buttons
|
|
|
470
|
73415
|
Hardware bag A, frame/wheel '19
|
|
|
470
|
73434
|
Hardware bag B, frame/tank scale
|
|
|
470
|
73437
|
Hardware bag H, tank panels LP, '19
|
|
|
510
|
7130
|
Premium grill cover, Genesis II/LX 300, Genesis E/S 300
|
|
|
510
|
7212
|
iGrill Pro Ambient Probe
|
Shop Now$17.99
|
|
510
|
7620
|
Stainless steel flavorizer bar set (Qty 5) Genesis 300 series '11
|
Shop Now$143.99
|
|
510
|
8854
|
Sear grate, Genesis II/LX 300/400/600
|
Shop Now$66.99
|
|
510
|
6415
|
Aluminum drip pans - small (10 pack)
|
Shop Now$10.49
|
|
510
|
7211
|
iGrill Pro Meat Probe
|
Shop Now$17.99
|
|
510
|
7599
|
Griddle, Genesis II 300/400/600 series
|
Shop Now$118.99
|
|
510
|
7652
|
Rotisserie, Genesis II/LX 200/300 series
|
Shop Now$145.49
|
|
510
|
7204
|
Weber iGrill 3
|
Shop Now$120.99
|
|
510
|
7516
|
Weber Handle Light, 2015-2019
|
|
|
510
|
7621
|
Porcelain enamel flavorizer bar set (Qty 5), Genesis 300 series '11
|
Shop Now$65.99
|
