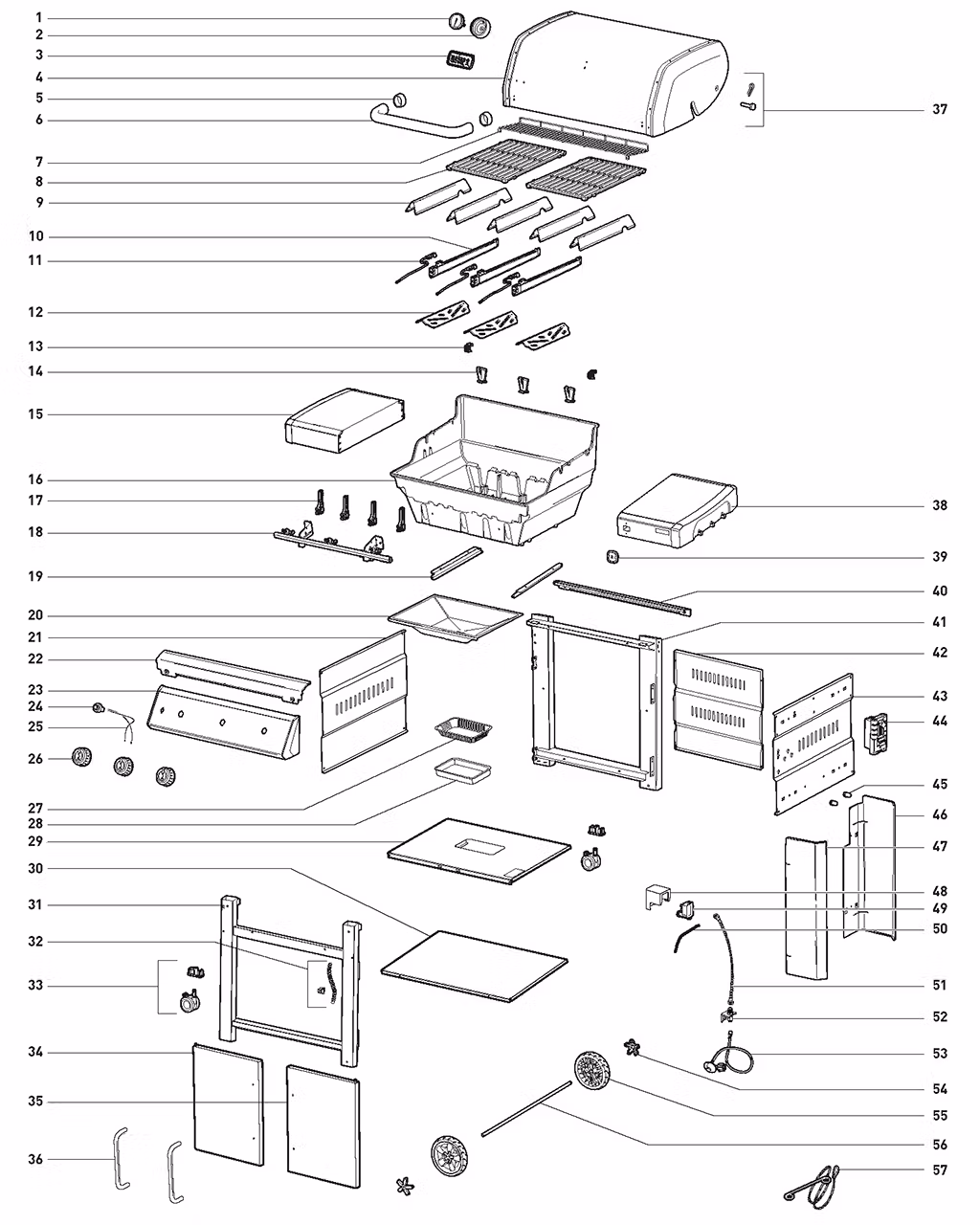

  • Schematic Image 61015001
  • Genesis II E-315 LP Blk (2019) (US/CA/MX)
  • 61015001

Additional Parts

Seq Part # Description Available Online
A 40435103 Literature kit, Genesis II 315/415 LP, '19, US/CA
1 67088 Thermometer, '18
2 66049 Thermometer bezel, Genesis
3 66513 Logo plate, SS
4 67367 Lid assembly, Genesis II 3 burner, '19, black
4 66438 Lid hardware, Genesis II LX series
4 66061 Lid bumpers, Genesis II (qty 2)
5 66831 Handle bezel, Genesis II LX, '17
6 66417 Lid handle, Genesis II LX 340
7 66044 Warming rack, Genesis II E-310
8 66095 Set of porcelain enamel cast iron grates, Genesis II E-310 Shop Now$117.99
9 66795 Stainless steel flavorizer bars, Genesis II LX 340 (qty 5)
10 67489 Burner tube kit, Genesis II 3 burner LP
11 66833 Igniter electrode w/wire, 27", yellow
11 66363 Igniter electrode w/wire, 46", green
11 66362 Igniter electrode w/wire, 36", black
12 66685 Heat deflector, SS, Genesis II LX 340 (qty 3)
13 69284 Warming rack bracket set
14 66029 Burner tube clamp set, Genesis II E/SE series (qty 2)
15 68582 Hardware for fixed table, Genesis II '19
15 67376 LHS fixed table, Genesis II, '19
16 66822 Hardware, manifold, Genesis II LX
16 67407 Cookbox, Genesis II 310/315, '19
16 66824 Hardware for cookbox, Genesis II/II LX
17 66357 Clip for ignition wire routing, round set (qty 2)
18 67458 LP manifold assembly, Genesis II 310/315, '19
19 66028 Bottom tray rails, Genesis II E/SE series
20 66036 Grease tray, Genesis II E-310/340
21 66766 LHS panel, Genesis II LX series
22 66229 Top trim for control panel, SS, Genesis II/LX 300 series
23 67417 Control panel assembly, Genesis II 315, '19
24 69283 Igniter/momentary switch, Genesis II '20
25 66376 Igniter button wire assembly, Genesis II E-310
26 66047 Control knob set, Genesis II 310/610 (qty 3)
27 6415 Aluminum drip pans - small (10 pack) Shop Now$8.49
28 93305 Aluminum catch pan kit
29 66421 Catch pan holder panel, Genesis II LX 340
29 83320 Door magnet
30 66759 Bottom panel, Genesis II LX 340
31 67388 Front frame
32 67693 Igniter wire conduit clamp, 3 pack
32 67161 Conduit tube for igniter wires, black
33 67066 Caster insert kit
33 67067 Casters (qty 2)
34 67428 LHS door w/label, black
35 67430 RHS door, black
36 69285 Door handle w/bezels
37 66438 Lid hardware, Genesis II LX series
38 67384 RHS fixed table, Genesis II, '19
38 68582 Hardware for fixed table, Genesis II '19
39 67334 iGrill cover w/snap
40 66456 Rear frame top trim, Genesis II LX 340
41 67389 Rear frame, platinum
42 66763 Rear panel, Genesis II LX 340
43 67446 RHS LP panel
44 66232 Tank scale assembly
45 66681 Hardware, tank glide buttons
46 66226 Rear tank panel, Genesis II series
46 66679 Hardware, tank panel buttons
47 67419 Front tank panel, Genesis II series
47 66679 Hardware, tank panel buttons
48 66358 Igniter module cover, Genesis II 210/310/410
49 66354 Igniter kit, Genesis II E-310/315
49 66260 Igniter module, Genesis II 310/410/340/440
50 66834 Ground wire, blue, 28.25", Genesis II LX
51 67455 Main corrugated gas line, Genesis II, '19
52 66212 Bulkhead assembly, Genesis II E-210/310
53 67069 QCC1 Hose and Regulator, 21" Shop Now$38.99
54 67654 Wheel insert kit, Genesis II, '19
55 67445 Wheel w/insert, Genesis II, '19
56 66533 Match holder assembly, Genesis II LX 240/340
57 66251 Axle w/hardware, Genesis II E/SE series
410 40435103 Literature kit, Genesis II 315/415 LP, '19, US/CA
470 73403 Hardware kit, Genesis II LP, '19
470 73432 Hardware bag D, trim
470 73436 Hardware bag E, igniter/bulkhead, '19
470 73397 Hardware bag G, fixed table, '19
470 73418 Hardware bag F, doors, '19
470 73435 Hardware bag C, cookbox '19
470 66679 Hardware, tank panel buttons
470 73415 Hardware bag A, frame/wheel '19
470 73434 Hardware bag B, frame/tank scale
470 73437 Hardware bag H, tank panels LP, '19
510 7130 Premium grill cover, Genesis II/LX 300, Genesis E/S 300 Shop Now$82.99
510 7211 iGrill Pro Meat Probe Shop Now$14.99
510 7599 Griddle, Genesis II 300/400/600 series
510 7652 Rotisserie, Genesis II/LX 200/300 series Shop Now$119.99
510 6415 Aluminum drip pans - small (10 pack) Shop Now$8.49
510 7204 Weber iGrill 3 Shop Now$99.99
510 7516 Weber Handle Light, 2015-2019
510 7621 Porcelain enamel flavorizer bar set (Qty 5), Genesis 300 series '11 Shop Now$52.99
510 7137 Cover for 20 lb. propane tank Shop Now$11.99
510 7212 iGrill Pro Ambient Probe Shop Now$14.99
510 7620 Stainless steel flavorizer bar set (Qty 5) Genesis 300 series '11 Shop Now$116.99
510 8854 Sear grate, Genesis II/LX 300/400/600 Shop Now$53.99
