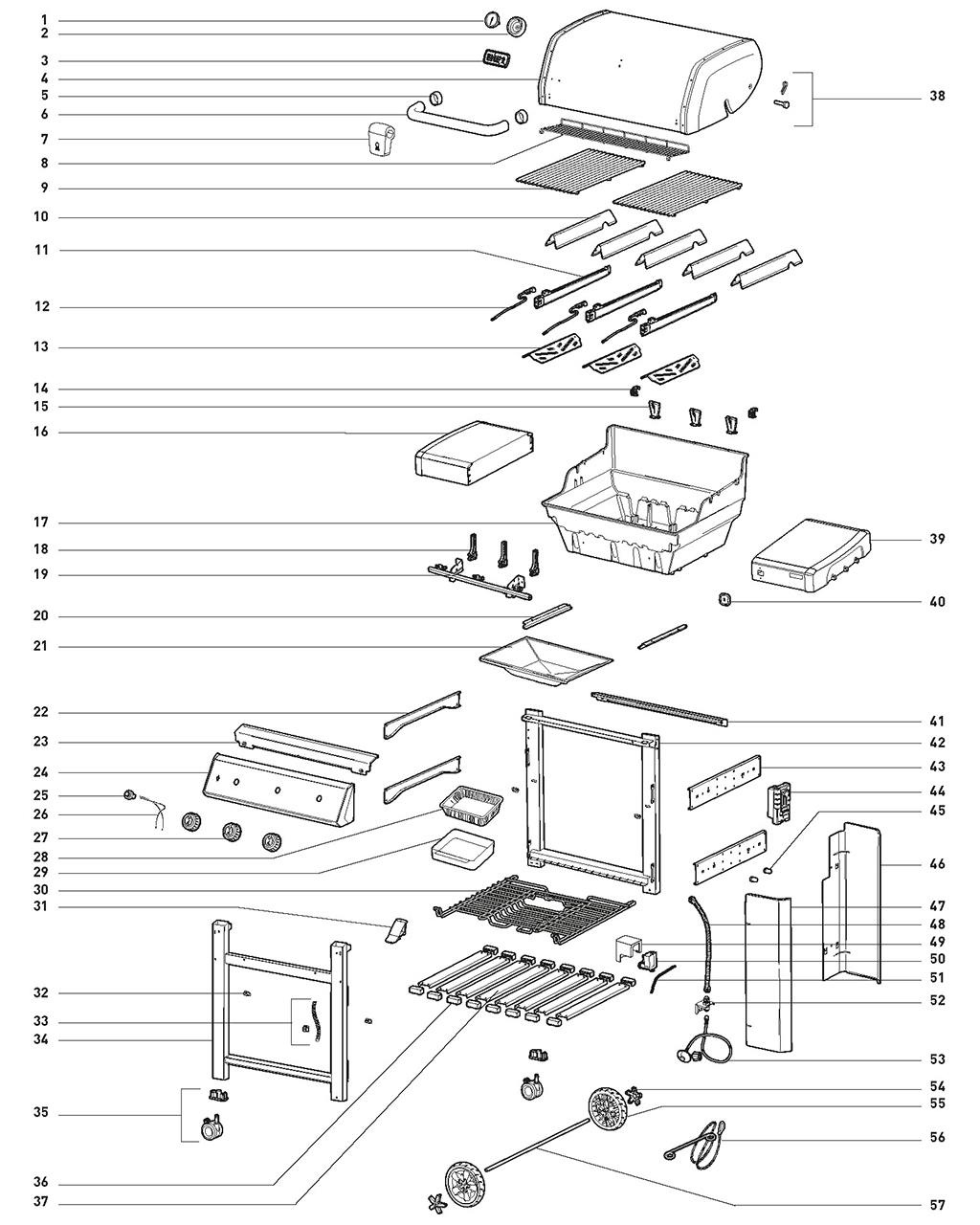

  • Schematic Image 61011201
  • Genesis II SE-310 LP Blk (2019) (US/CA/MX)
  • 61011201

Additional Parts

Seq Part # Description Available Online
A 40435101 Literature kit, Genesis II 310/410 LP, US/CA/MX
1 67088 Thermometer, '18
2 66049 Thermometer bezel, Genesis
3 66513 Logo plate, SS
4 67367 Lid assembly, Genesis II 3 burner, '19, black
4 66438 Lid hardware, Genesis II LX series
4 66061 Lid bumpers (qty 2)
5 66831 Handle bezel, Genesis II LX, '17
6 66417 Lid handle, Genesis II LX 340
7 69273 Handle light Shop Now$40.49
8 66044 Warming rack, Genesis II E-310
9 66805 Stainless steel grates, 9 mm, Genesis II LX 300 series (qty 2) Shop Now$217.99
10 66795 Stainless steel flavorizer bars, Genesis II LX 340 (qty 5)
11 67489 Burner tube kit, Genesis II 3 burner LP
12 66363 Igniter electrode w/wire, 46", green
12 66362 Igniter electrode w/wire, 36", black
12 66833 Igniter electrode w/wire, 27", yellow
13 66685 Heat deflector, SS, Genesis II LX 340 (qty 3)
14 69284 Warming rack bracket set
15 66029 Burner tube clamp set, Genesis II E/SE series (qty 2)
16 68582 Hardware for fixed table, Genesis II '19
16 67376 LHS fixed table, Genesis II, '19
17 67407 Cookbox, Genesis II 310/315, '19
17 66824 Hardware for cookbox, Genesis II/II LX
17 66822 Hardware, manifold, Genesis II LX
18 66357 Clip for ignition wire routing, round set (qty 2)
19 67458 LP manifold assembly, Genesis II 310/315, '19
20 66028 Bottom tray rails, Genesis II E/SE series
21 66036 Grease tray, Genesis II E-310/340
22 67420 LHS frame connector, Genesis II, '19
23 66229 Top trim for control panel, SS, Genesis II/LX 300 series
24 66254 Control panel assembly, Genesis II E-310
25 69283 Igniter/momentary switch, Genesis II '20
26 66376 Igniter wire assembly, Genesis II E-310
27 66047 Control knob set, Genesis II 310/610 (qty 3)
28 6415 Aluminum drip pans - small (10 pack) Shop Now$10.49
29 93305 Aluminum catch pan kit
30 67421 Wire rack/Catch pan holder
31 67422 Retainer for catch pan w/label
32 67447 Set of bushings for wire rack, qty. 4
33 67693 Igniter wire conduit clamp, 3 pack
33 67161 Conduit tube for igniter wires, black
34 67390 Front frame, Genesis II 310, '19
35 67067 Casters (qty 2)
35 67066 Caster insert kit
36 66066 Bottom slat mounting bracket set, Genesis II E/SE series (qty 2)
37 66068 Bottom slat set, Genesis II E/SE series (qty 2)
38 66438 Lid hardware, Genesis II LX series
39 67386 RHS fixed table, Genesis II SE, '19
39 68582 Hardware for fixed table, Genesis II '19
40 67334 iGrill cover w/snap
41 66456 Rear frame top trim, Genesis II LX 340
42 67391 Rear frame, Genesis II 310, '19
43 66218 RHS frame connector, Genesis II E/SE series
44 66232 Tank scale assembly
45 66681 Hardware, tank glide buttons
46 66679 Hardware, tank panel buttons
46 66226 Rear tank panel, Genesis II series
47 66679 Hardware, tank panel buttons
47 66225 Front tank panel, Genesis II E/SE series
48 67455 Main corrugated gas line, Genesis II, '19
49 66358 Igniter module cover, Genesis II 210/310/410
50 66354 Igniter kit, Genesis II E-310/315
50 66260 Igniter module, Genesis II 310/410/340/440
51 66834 Ground wire, blue, 28.25", Genesis II LX
52 66212 Bulkhead assembly, Genesis II E-210/310
53 67069 QCC1 Hose and Regulator, 21" Shop Now$47.99
54 67654 Wheel insert kit, Genesis II, '19
55 67445 Wheel w/insert, Genesis II, '19
56 66533 Match holder assembly, Genesis II LX 240/340
57 66251 Axle w/hardware, Genesis II E/SE series
410 40435101 Literature kit, Genesis II 310/410 LP, US/CA/MX
470 66679 Hardware, tank panel buttons
470 73396 Hardware bag C, frame/tank scale
470 73432 Hardware bag D, trim
470 73395 Hardware bag A, frame/wheel
470 73417 Hardware bag B, cookbox
470 73388 Hardware kit, Genesis II LP, '19
470 73398 Hardware bag F, igniter
470 73433 Hardware bag E, fixed table
510 7130 Premium grill cover, Genesis II/LX 300, Genesis E/S 300 Shop Now$82.99
510 7211 iGrill Pro Meat Probe Shop Now$17.99
510 7599 Griddle, Genesis II 300/400/600 series Shop Now$118.99
510 7652 Rotisserie, Genesis II/LX 200/300 series Shop Now$145.49
510 6415 Aluminum drip pans - small (10 pack) Shop Now$10.49
510 7204 Weber iGrill 3 Shop Now$120.99
510 7516 Weber Handle Light, 2015-2019
510 7621 Porcelain enamel flavorizer bar set (Qty 5), Genesis 300 series '11 Shop Now$65.99
510 7137 Cover for 20 lb. propane tank Shop Now$14.49
510 7212 iGrill Pro Ambient Probe Shop Now$17.99
510 7620 Stainless steel flavorizer bar set (Qty 5) Genesis 300 series '11 Shop Now$143.99
510 8854 Sear grate, Genesis II/LX 300/400/600 Shop Now$66.99
