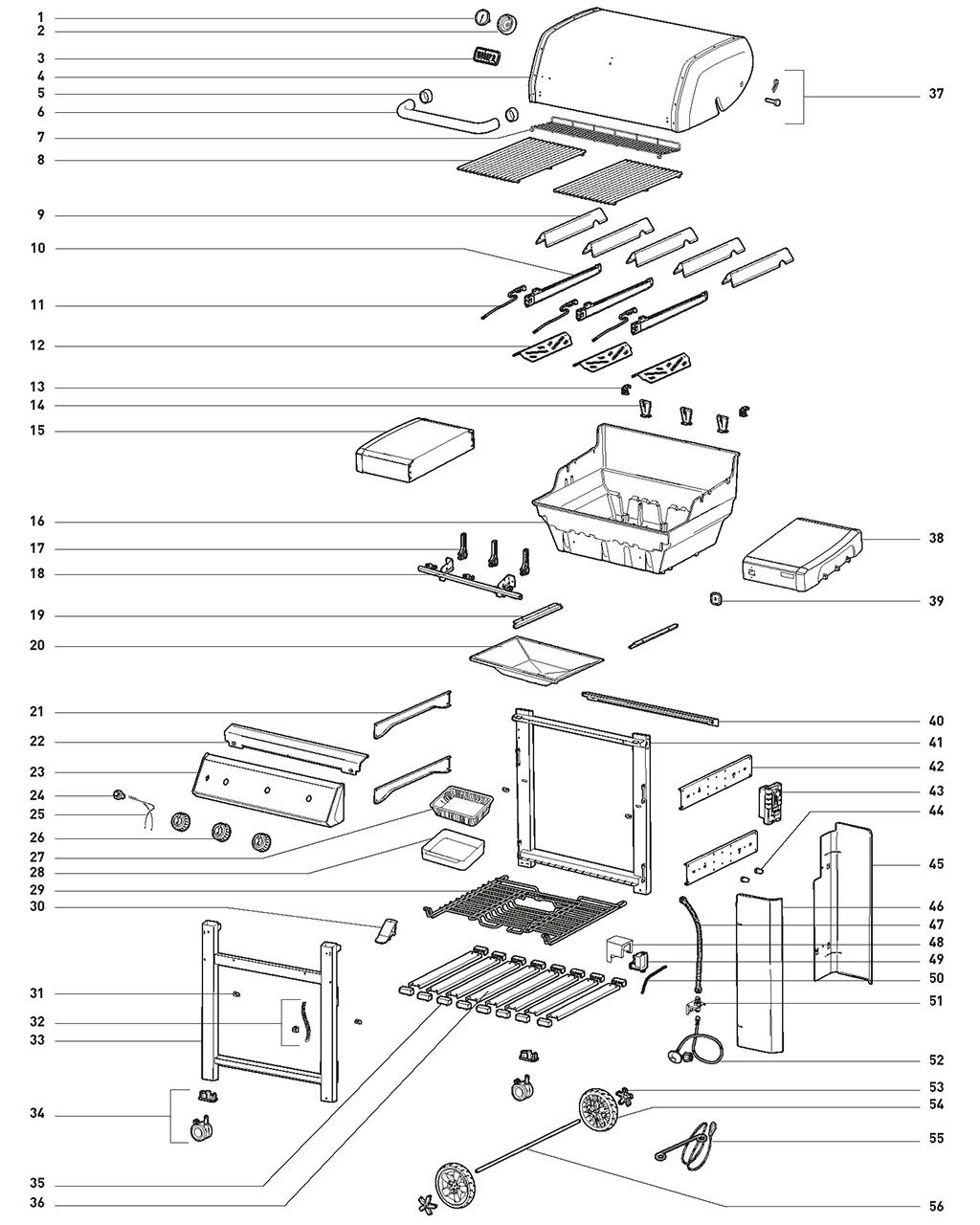

  • Schematic Image 61001001
  • Genesis II S-310 LP SS (2019) (US/CA/MX)
  • 61001001

Additional Parts

Seq Part # Description Available Online
A 40435101 Literature kit, Genesis II 310/410 LP, US/CA/MX
1 67088 Thermometer, '18
2 66049 Thermometer bezel, Genesis
3 66513 Logo plate, SS
4 66061 Lid bumpers, Genesis II (qty 2)
4 67368 Lid assembly, Genesis II 3 burner, SS, '19
4 66438 Lid hardware, Genesis II LX series
5 66831 Handle bezel, Genesis II LX, '17
6 66417 Lid handle, Genesis II LX 340
7 66044 Warming rack, Genesis II E-310
8 66802 Set of cooking grates, SS, 7 mm, Genesis II LX 340 Shop Now$112.99
9 66795 Stainless steel flavorizer bars, Genesis II LX 340 (qty 5)
10 67489 Burner tube kit, Genesis II 3 burner LP
11 66362 Igniter electrode w/wire, 36", black
11 66833 Igniter electrode w/wire, 27", yellow
11 66363 Igniter electrode w/wire, 46", green
12 66685 Heat deflector, SS, Genesis II LX 340 (qty 3)
13 69284 Warming rack bracket set
14 66029 Burner tube clamp set, Genesis II E/SE series (qty 2)
15 67376 LHS fixed table, Genesis II, '19
15 68582 Hardware for fixed table, Genesis II '19
16 66824 Hardware for cookbox, Genesis II/II LX
16 66822 Hardware, manifold, Genesis II LX
16 67407 Cookbox, Genesis II 310/315, '19
17 66357 Clip for ignition wire routing, round set (qty 2)
18 67458 LP manifold assembly, Genesis II 310/315, '19
19 66028 Bottom tray rails, Genesis II E/SE series
20 66036 Grease tray, Genesis II E-310/340
21 67420 LHS frame connector, Genesis II, '19
22 66229 Top trim for control panel, SS, Genesis II/LX 300 series
23 66254 Control panel assembly, Genesis II E-310
24 69283 Igniter/momentary switch, Genesis II '20
25 66376 Igniter button wire assembly, Genesis II E-310
26 66047 Control knob set, Genesis II 310/610 (qty 3)
27 6415 Aluminum drip pans - small (10 pack) Shop Now$8.49
28 93305 Aluminum catch pan kit
29 67421 Wire rack/Catch pan holder
30 67422 Retainer for catch pan w/label
31 67447 Set of bushings for wire rack, qty. 4
32 67161 Conduit tube for igniter wires, black
33 67390 Front frame, Genesis II 310, '19
34 67067 Casters (qty 2)
34 67066 Caster insert kit
35 66066 Bottom slat mounting bracket set, Genesis II E/SE series (qty 2)
36 66068 Bottom slat set, Genesis II E/SE series (qty 2)
37 66438 Lid hardware, Genesis II LX series
38 67384 RHS fixed table, Genesis II, '19
38 68582 Hardware for fixed table, Genesis II '19
39 67334 iGrill cover w/snap
40 66456 Rear frame top trim, Genesis II LX 340
41 67391 Rear frame, Genesis II 310, '19
42 66218 RHS frame connector, Genesis II E/SE series
43 66232 Tank scale assembly
44 66681 Hardware, tank glide buttons
45 66679 Hardware, tank panel buttons
45 66226 Rear tank panel, Genesis II series
46 66679 Hardware, tank panel buttons
46 66225 Front tank panel, Genesis II E/SE series
47 67455 Main corrugated gas line, Genesis II, '19
48 66358 Igniter module cover, Genesis II 210/310/410
49 66354 Igniter kit, Genesis II E-310/315
49 66260 Igniter module, Genesis II 310/410/340/440
50 66834 Ground wire, blue, 28.25", Genesis II LX
51 66212 Bulkhead assembly, Genesis II E-210/310
52 67069 QCC1 Hose and Regulator, 21" Shop Now$38.99
53 67654 Wheel insert kit, Genesis II, '19
54 67445 Wheel w/insert, Genesis II, '19
55 66533 Match holder assembly, Genesis II LX 240/340
56 66251 Axle w/hardware, Genesis II E/SE series
410 40435101 Literature kit, Genesis II 310/410 LP, US/CA/MX
470 66679 Hardware, tank panel buttons
470 73396 Hardware bag C, frame/tank scale
470 73432 Hardware bag D, trim
470 73395 Hardware bag A, frame/wheel
470 73417 Hardware bag B, cookbox
470 73388 Hardware kit, Genesis II LP, '19
470 73398 Hardware bag F, igniter
470 73433 Hardware bag E, fixed table
510 7130 Premium grill cover, Genesis II/LX 300, Genesis E/S 300 Shop Now$82.99
510 7211 iGrill Pro Meat Probe Shop Now$14.99
510 7599 Griddle, Genesis II 300/400/600 series
510 7652 Rotisserie, Genesis II/LX 200/300 series Shop Now$119.99
510 6415 Aluminum drip pans - small (10 pack) Shop Now$8.49
510 7204 Weber iGrill 3 Shop Now$99.99
510 7516 Weber Handle Light, 2015-2019
510 7621 Porcelain enamel flavorizer bar set (Qty 5), Genesis 300 series '11 Shop Now$52.99
510 7137 Cover for 20 lb. propane tank Shop Now$11.99
510 7212 iGrill Pro Ambient Probe Shop Now$14.99
510 7620 Stainless steel flavorizer bar set (Qty 5) Genesis 300 series '11 Shop Now$116.99
510 8854 Sear grate, Genesis II/LX 300/400/600 Shop Now$53.99
