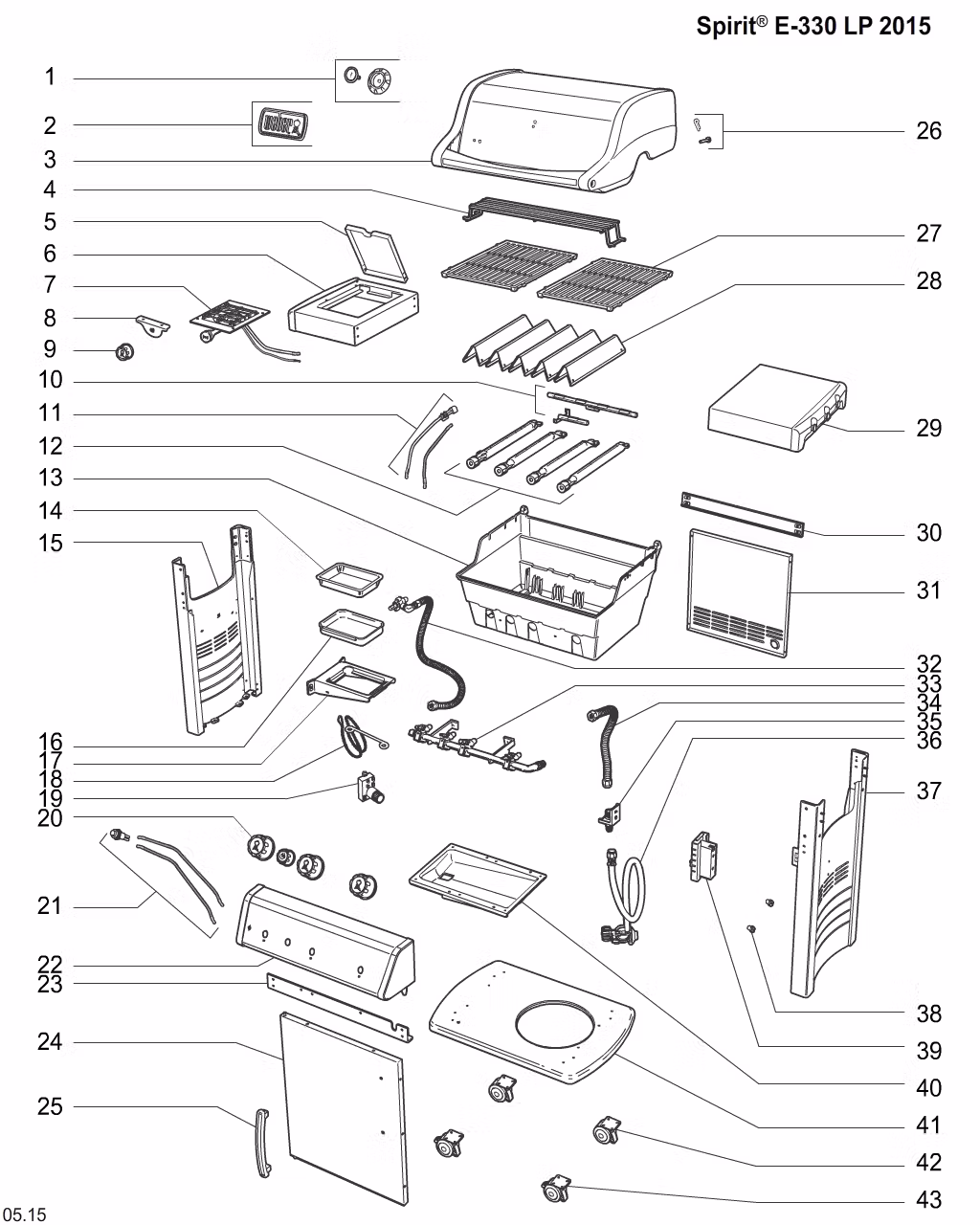

  • Schematic Image 46810001
  • Spirit E-330 LP Blk (2015) (US/CA/MX)
  • 46810001

Additional Parts

Seq Part # Description Available Online
A 58601 Assembly Guide, Spirit 330, US/CA/MX '16
W 69846 Hardware for fixed table
W 83656 Hardware for door w/hinge, Spirit 210/310/320 '14
W 84686 Hardware, ignition module assembly (Hardware bag D)
W 84693 Hardware, SS side burner assembly
A 58600 Literature Kit, Spirit 330 LP, US/CA/MX '16
W 69844 Hardware, lid assembly, Spirit '13
W 83649 Hardware for frame assembly, Spirit 310/320, Australia/New Zealand '14
W 84685 Hardware, tank scale assembly (Hardware bag C)
W 84692 Hardware bag K, fixed table assembly
A 56826 Addendum for Mexico (Required for Mexico only)
W 69843 Hardware for mounting manifold, Spirit '13
W 83229 Hardware kit for Spirit E-320 LP, '13
W 84683 Hardware bag A, caster assembly
W 84691 Hardware bag J, control panel assembly, Spirit 300
1 69823 Bezel for thermometer, Spirit '13
1 60540 Thermometer, Q/Spirit/Genesis/Charcoal
2 69857 Logo, Spirit '13
3 65528 Lid assembly, Spirit 330, black '16
4 91289 Warming rack, Spirit '09, 3 burner
5 69856 Lid for side burner, Spirit '13, SS
6 69876 Side burner table, SS, Spirit '13, US
6 69846 Hardware for fixed table
7 69881 Side burner assembly, Spirit 220/320, '13
7 69851 Electronic igniter kit, Spirit 220-330
7 69897 Hardware for side burner tray, Spirit '13
7 69842 Flame ring for side burner, Spirit '13
7 69883 Trivet for side burner, Spirit '13
8 69859 Mounting plate for side burner, SS
8 84693 Hardware, SS side burner assembly
9 69854 Side burner knob, Spirit '13
10 65517 Crossover tube for sear burner, Spirit 330
10 69413 Crossover Burner tube Spirit 300 series
11 69851 Electronic igniter kit, Spirit 220-330
11 69794 Electrode for electronic ignition, Spirit '13
12 68948 Burner tube kit, Spirit 335
13 67160 Hardware for burners/cookbox rails, Spirit II
13 65521 Cookbox, Spirit 330 '16
13 69867 Grease tray rails, Spirit '13
13 69843 Hardware for mounting manifold, Spirit '13
14 6415 Aluminum drip pans - small (10 pack) Shop Now$10.49
15 84684 Hardware, frame assembly (Hardware bag B)
15 64817 LHS panel assembly, Spirit '14
16 83156 Catch pan kit
17 69843 Hardware for mounting manifold, Spirit '13
17 69806 Catch pan holder, Spirit 300, '13
18 69894 Match holder w/chain
19 84686 Hardware, ignition module assembly (Hardware bag D)
19 69851 Electronic igniter kit, Spirit 220-330
19 69849 Ignition module, Spirit 220/320, Spirit '13
20 69893 Set of control knobs, Spirit 300, '13
20 65516 Sear burner knob, Spirit 330
21 69851 Electronic igniter kit, Spirit 220-330
21 69871 Electronic ignition switch/button, Spirit '13
22 84691 Hardware bag J, control panel assembly, Spirit 300
22 65522 Control panel, SS, Spirit 330 '16
23 84684 Hardware, frame assembly (Hardware bag B)
23 65515 Front frame connector, Spirit 330
24 64837 Door assembly, Spirit 300, black
24 83656 Hardware for door w/hinge, Spirit 210/310/320 '14
25 69847 Door handle w/hardware, Spirit '13
26 69844 Hardware, lid assembly, Spirit '13
27 69801 Set of porcelain enameled cast iron cooking grates, Spirit 300 series Shop Now$89.99
28 69797 Set of porcelain enameled flavorizer bars, Spirit 300, '13 Shop Now$49.99
29 69846 Hardware for fixed table
29 69873 Fixed table, SS, Spirit '13
30 84684 Hardware, frame assembly (Hardware bag B)
30 69833 Rear cross piece, Spirit 300, '13
31 84684 Hardware, frame assembly (Hardware bag B)
31 74222 Rear panel, Spirit 300, '13
32 69888 LP side burner valve w/gas line
33 69843 Hardware for mounting manifold, Spirit '13
33 65524 Manifold assembly, Spirit 330 LP '16
34 69841 Corrugated gas line, Spirit '13
35 69790 Bulkhead assembly, Spirit '13
36 69891 QCC1 hose and regulator, 17" Shop Now$43.99
37 64818 RHS panel assembly, Spirit '14
37 84684 Hardware, frame assembly (Hardware bag B)
37 83320 Door magnet
38 84685 Hardware, tank scale assembly (Hardware bag C)
39 84685 Hardware, tank scale assembly (Hardware bag C)
39 69877 Tank scale, Spirit '13
40 69804 Grease tray, Spirit 300, '13
41 84684 Hardware, frame assembly (Hardware bag B)
41 69810 Bottom panel, Spirit 300 LP, '13, US
42 69827 Rolling caster w/plate - qty. 2 Shop Now$43.99
42 84683 Hardware bag A, caster assembly
43 84683 Hardware bag A, caster assembly
43 69828 Locking caster w/plate - qty. 2 Shop Now$43.99
410 58601 Assembly Guide, Spirit 330, US/CA/MX '16
410 58600 Literature Kit, Spirit 330 LP, US/CA/MX '16
410 56826 Addendum for Mexico (Required for Mexico only)
470 69846 Hardware for fixed table
470 83656 Hardware for door w/hinge, Spirit 210/310/320 '14
470 84686 Hardware, ignition module assembly (Hardware bag D)
470 84693 Hardware, SS side burner assembly
470 69844 Hardware, lid assembly, Spirit '13
470 83649 Hardware for frame assembly, Spirit 310/320, Australia/New Zealand '14
470 84685 Hardware, tank scale assembly (Hardware bag C)
470 84692 Hardware bag K, fixed table assembly
470 69843 Hardware for mounting manifold, Spirit '13
470 83229 Hardware kit for Spirit E-320 LP, '13
470 84683 Hardware bag A, caster assembly
470 84691 Hardware bag J, control panel assembly, Spirit 300
480 83156 Catch pan kit
480 69851 Electronic igniter kit, Spirit 220-330
510 7139 Premium Grill Cover, Spirit II 300
510 7579 Weber Style Premium Cast-Iron Plancha Spirit 300
510 7586 Gourmet BBQ System Cooking Grate, Spirit 300 series Shop Now$117.49
510 7615 Weber Elevations Tiered Cooking System Grill Rack and Skewer Set
510 7658 Griddle, porcelain enamel cast iron, Spirit II 200/300 Shop Now$118.99
510 8836 Weber Original Gourmet BBQ System Pizza Stone
510 33106 Discontinued - Cover, Spirit 220/300 series - (210 with tables up)
510 7516 Weber Handle Light, 2015-2019
510 7614 Rotisserie Kit, Spirit 200/300 series
510 7617 Weber Elevations Tiered Cooking System Expansion Rack
510 8834 Weber Original Gourmet BBQ System Sear Grate Shop Now$59.49
510 8841 Weber Original Gourmet BBQ System Ebelskiver - discontinued
510 7421 Weber Original Gourmet BBQ System Griddle Shop Now$59.49
510 7616 Weber Elevations Tiered Cooking System Basket with Frame
510 7659 Rotisserie kit, Spirit II 200/300, US/MX/CA Shop Now$134.49
510 8838 Weber Original Gourmet BBQ System Poultry Roaster Shop Now$72.99
