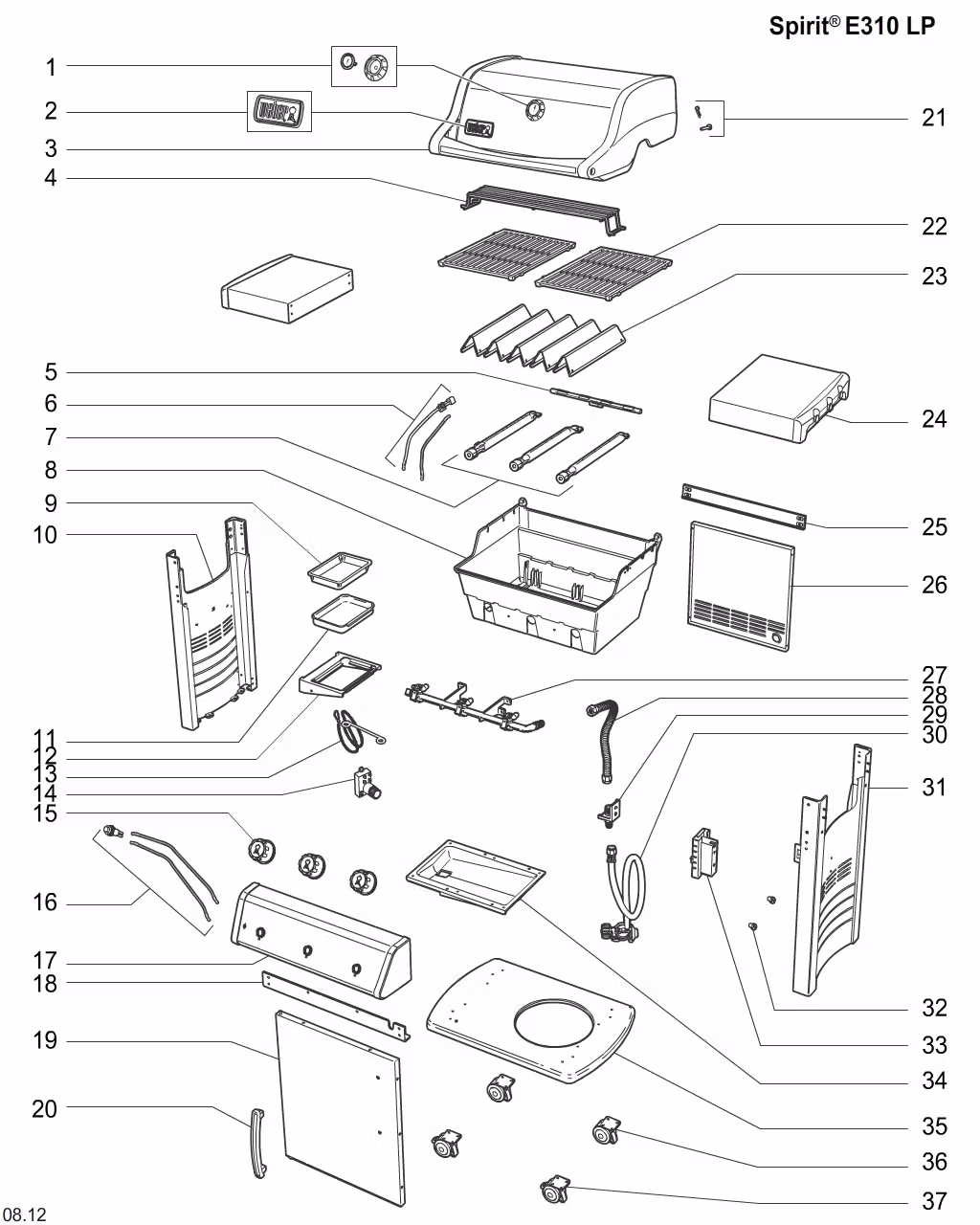

  • Schematic Image 46510001
  • Spirit E-310 LP Blk (2013) (US/CA/MX)
  • 46510001

Additional Parts

Seq Part # Description Available Online
A 57202 Assembly guide, Spirit 310 OBS
W 69843 Hardware for mounting manifold, Spirit '13
W 83243 Complete hardware kit, Spirit 300 LP, '13, US/CA/MX
W 84684 Hardware, frame assembly (Hardware bag B)
W 84689 Hardware for door w/hinge (Hardware bag G) '13 (models made prior to 10/1/2013)
A 56826 Addendum for Mexico (Required for Mexico only)
A 58301 Assembly guide, Spirit 310 US '14
W 69846 Hardware for fixed table
W 84683 Hardware bag A, caster assembly
W 84686 Hardware, ignition module assembly (Hardware bag D)
W 84692 Hardware bag K, fixed table assembly
A 48938 Literature Kit, Spirit 210/310 LP, US/CA
A 57364 Literature kit, Spirit 210/310 LP, '13
W 69844 Hardware, lid assembly, Spirit '13
W 83656 Hardware for door w/hinge, Spirit 210/310/320 '14
W 84685 Hardware, tank scale assembly (Hardware bag C)
W 84691 Hardware bag J, control panel assembly, Spirit 300
1 69823 Bezel for thermometer, Spirit '13
1 60540 Thermometer, Q/Spirit/Genesis/Charcoal
2 69857 Logo, Spirit '13
3 69763 Lid assembly, Spirit 300, '13, black
4 91289 Warming rack, Spirit '09, 3 burner
5 68950 Burner tube kit, Spirit 315 LP
5 69413 Crossover Burner tube Spirit 300 series
6 69850 Electronic igniter kit, Spirit 210/310 Shop Now$53.99
6 69794 Electrode for electronic ignition, Spirit '13
7 68950 Burner tube kit, Spirit 315 LP
8 69783 Cookbox, Spirit 300 series, '13
8 67160 Hardware for burners/cookbox rails, Spirit II
8 69867 Grease tray rails, Spirit '13
8 69843 Hardware for mounting manifold, Spirit '13
9 6415 Aluminum drip pans - small (10 pack) Shop Now$10.49
10 84684 Hardware, frame assembly (Hardware bag B)
10 69860 LHS panel assembly, Spirit '13
10 64817 LHS panel assembly, Spirit '14
11 83156 Catch pan kit
12 69843 Hardware for mounting manifold, Spirit '13
12 69806 Catch pan holder, Spirit 300, '13
13 69894 Match holder w/chain
14 69850 Electronic igniter kit, Spirit 210/310 Shop Now$53.99
14 69848 Ignition module, Spirit 210/310, Spirit '13
14 84686 Hardware, ignition module assembly (Hardware bag D)
15 69893 Set of control knobs, Spirit 300, '13
16 69850 Electronic igniter kit, Spirit 210/310 Shop Now$53.99
16 69871 Electronic ignition switch/button, Spirit '13
17 84691 Hardware bag J, control panel assembly, Spirit 300
17 64808 Control panel, Spirit 300, SS (2014)
18 84684 Hardware, frame assembly (Hardware bag B)
18 69831 Front cross piece, Spirit 300, '13
19 64837 Door assembly, Spirit 300, black
19 84689 Hardware for door w/hinge (Hardware bag G) '13 (models made prior to 10/1/2013)
19 83656 Hardware for door w/hinge, Spirit 210/310/320 '14
20 69847 Door handle w/hardware, Spirit '13
21 69844 Hardware, lid assembly, Spirit '13
22 69801 Set of porcelain enameled cast iron cooking grates, Spirit 300 series Shop Now$117.49
23 69797 Set of porcelain enameled flavorizer bars, Spirit 300, '13 Shop Now$65.99
24 69873 Fixed table, SS, Spirit '13
24 69846 Hardware for fixed table
25 69833 Rear cross piece, Spirit 300, '13
25 84684 Hardware, frame assembly (Hardware bag B)
26 84684 Hardware, frame assembly (Hardware bag B)
26 74222 Rear panel, Spirit 300, '13
27 69843 Hardware for mounting manifold, Spirit '13
27 69774 LP manifold assembly, Spirit 310 LP, '13, US
28 69841 Corrugated gas line, Spirit '13
29 69790 Bulkhead assembly, Spirit '13
30 69891 QCC1 hose and regulator, 17" Shop Now$43.99
31 64818 RHS panel assembly, Spirit '14
31 84684 Hardware, frame assembly (Hardware bag B)
31 83320 Door magnet
32 84685 Hardware, tank scale assembly (Hardware bag C)
33 84685 Hardware, tank scale assembly (Hardware bag C)
33 69877 Tank scale, Spirit '13
34 69804 Grease tray, Spirit 300, '13
35 84684 Hardware, frame assembly (Hardware bag B)
35 69810 Bottom panel, Spirit 300 LP, '13, US
36 84683 Hardware bag A, caster assembly
36 69827 Rolling caster w/plate - qty. 2 Shop Now$43.99
37 69828 Locking caster w/plate - qty. 2 Shop Now$43.99
37 84683 Hardware bag A, caster assembly
410 56826 Addendum for Mexico (Required for Mexico only)
410 58301 Assembly guide, Spirit 310 US '14
410 48938 Literature Kit, Spirit 210/310 LP, US/CA
410 57364 Literature kit, Spirit 210/310 LP, '13
410 57202 Assembly guide, Spirit 310 OBS
470 69846 Hardware for fixed table
470 84683 Hardware bag A, caster assembly
470 84686 Hardware, ignition module assembly (Hardware bag D)
470 84692 Hardware bag K, fixed table assembly
470 69844 Hardware, lid assembly, Spirit '13
470 83656 Hardware for door w/hinge, Spirit 210/310/320 '14
470 84685 Hardware, tank scale assembly (Hardware bag C)
470 84691 Hardware bag J, control panel assembly, Spirit 300
470 69843 Hardware for mounting manifold, Spirit '13
470 83243 Complete hardware kit, Spirit 300 LP, '13, US/CA/MX
470 84684 Hardware, frame assembly (Hardware bag B)
470 84689 Hardware for door w/hinge (Hardware bag G) '13 (models made prior to 10/1/2013)
480 83156 Catch pan kit
480 69850 Electronic igniter kit, Spirit 210/310 Shop Now$53.99
480 68950 Burner tube kit, Spirit 315 LP
510 7516 Weber Handle Light, 2015-2019
510 7586 Gourmet BBQ System Cooking Grate, Spirit 300 series Shop Now$117.49
510 7614 Rotisserie Kit, Spirit 200/300 series
510 7617 Weber Elevations Tiered Cooking System Expansion Rack
510 8834 Weber Original Gourmet BBQ System Sear Grate Shop Now$59.49
510 8841 Weber Original Gourmet BBQ System Ebelskiver - discontinued
510 7421 Weber Original Gourmet BBQ System Griddle Shop Now$59.49
510 7579 Weber Style Premium Cast-Iron Plancha Spirit 300
510 7616 Weber Elevations Tiered Cooking System Basket with Frame
510 7659 Rotisserie kit, Spirit II 200/300, US/MX/CA Shop Now$134.49
510 8838 Weber Original Gourmet BBQ System Poultry Roaster Shop Now$72.99
510 7139 Premium Grill Cover, Spirit II 300 Shop Now$89.49
510 7615 Weber Elevations Tiered Cooking System Grill Rack and Skewer Set
510 7658 Griddle, porcelain enamel cast iron, Spirit II 200/300 Shop Now$118.99
510 8836 Weber Original Gourmet BBQ System Pizza Stone Shop Now$59.49
