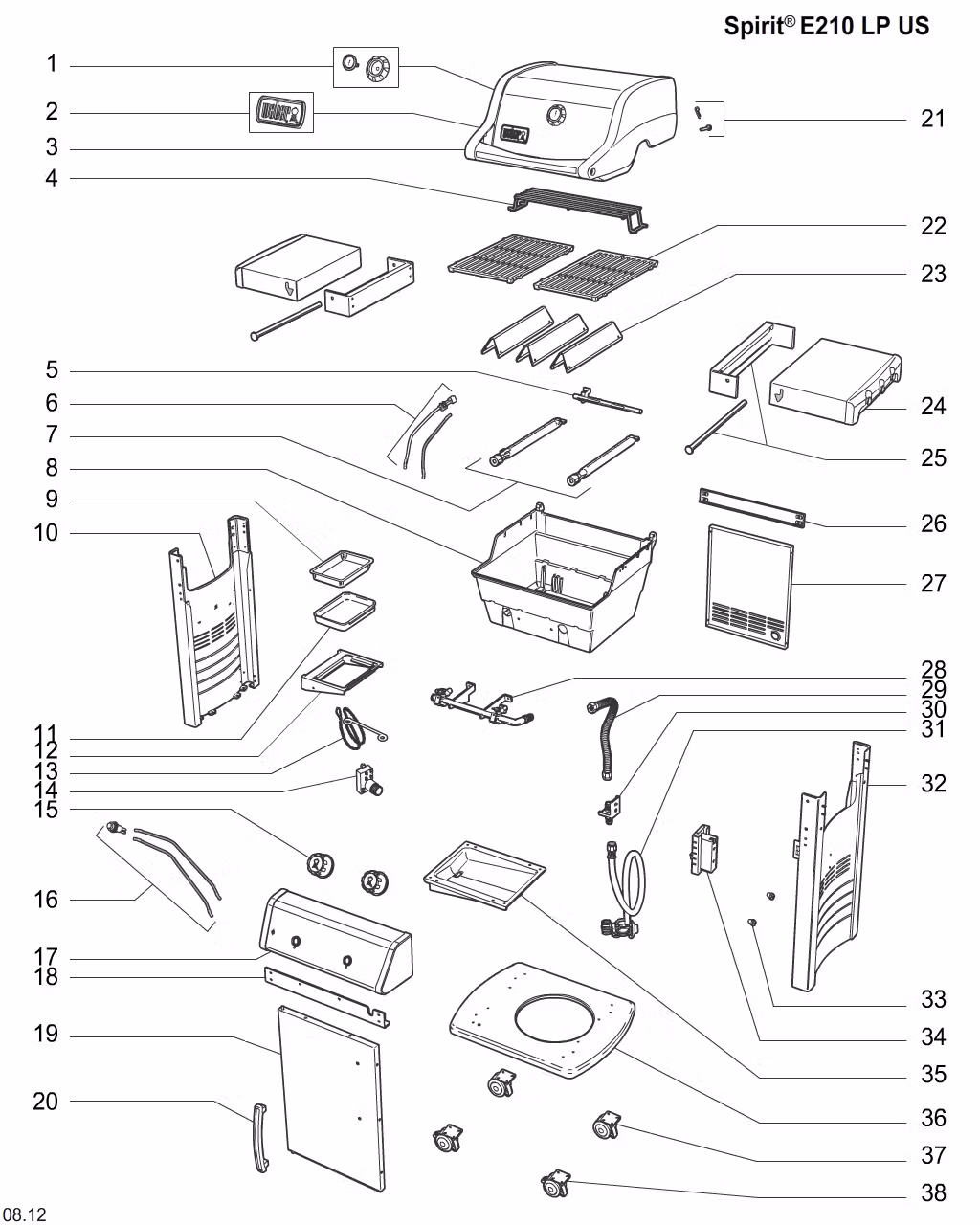

  • Schematic Image 46110001
  • Spirit E-210 LP Blk (2013) (US/CA/MX)
  • 46110001

Additional Parts

Seq Part # Description Available Online
A 56826 Addendum for Mexico (Required for Mexico only)
A 57364 Literature kit, Spirit 210/310 LP, '13
W 69844 Hardware, lid assembly, Spirit '13
W 83656 Hardware for door w/hinge, Spirit 210/310/320 '14
W 84685 Hardware, tank scale assembly (Hardware bag C)
W 84688 Hardware, drop down table (Hardware bag F)
A 48938 Literature Kit, Spirit 210/310 LP, US/CA
A 57201 Assembly guide, Spirit 210-Do not order-advise to go to website
W 69843 Hardware for mounting manifold, Spirit '13
W 83351 Hardware bag for Spirit 210, '13
W 84684 Hardware, frame assembly (Hardware bag B)
W 84687 Hardware, control panel assembly, Spirit 200 (Hardware bag E)
A 58300 Assembly guide, Spirit 210 US (2013-2015)
W 69845 Hardware, pivoting table, Spirit '13
W 84683 Hardware bag A, caster assembly
W 84686 Hardware, ignition module assembly (Hardware bag D)
W 84689 Hardware for door w/hinge (Hardware bag G) '13 (models made prior to 10/1/2013)
1 60540 Thermometer, Q/Spirit/Genesis/Charcoal
1 69823 Bezel for thermometer, Spirit '13
2 69857 Logo, Spirit '13
3 69761 Lid assembly, Spirit 200, '13, black
4 69866 Warming rack, Spirit 200, '13
5 69899 Crossover tube
5 68949 Burner tube kit, Spirit E-215
6 69850 Electronic igniter kit, Spirit 210/310
6 69794 Electrode for electronic ignition, Spirit '13
7 68949 Burner tube kit, Spirit E-215
8 69843 Hardware for mounting manifold, Spirit '13
8 69782 Cookbox, Spirit 200, '13
8 67160 Hardware for burners/cookbox rails, Spirit II
8 69867 Grease tray rails, Spirit '13
9 6415 Aluminum drip pans - small (10 pack) Shop Now$8.49
10 64817 LHS panel assembly, Spirit '14
10 84684 Hardware, frame assembly (Hardware bag B)
10 69860 LHS panel assembly, Spirit '13
11 83156 Catch pan kit
12 69843 Hardware for mounting manifold, Spirit '13
12 69805 Catch pan holder, Spirit 200, '13
13 69894 Match holder w/chain
14 84686 Hardware, ignition module assembly (Hardware bag D)
14 69850 Electronic igniter kit, Spirit 210/310
14 69848 Ignition module, Spirit 210/310, Spirit '13
15 69892 Set of control knobs, Spirit 200, '13 Shop Now$21.99
16 69871 Electronic ignition switch/button, Spirit '13
16 69850 Electronic igniter kit, Spirit 210/310
17 84687 Hardware, control panel assembly, Spirit 200 (Hardware bag E)
17 64813 Control panel, Spirit 200, SS, '14
18 84684 Hardware, frame assembly (Hardware bag B)
18 69830 Front cross piece, Spirit 200, '13
19 64838 Door assembly, Spirit 200, black '14
19 84689 Hardware for door w/hinge (Hardware bag G) '13 (models made prior to 10/1/2013)
19 83656 Hardware for door w/hinge, Spirit 210/310/320 '14
20 69847 Door handle w/hardware, Spirit '13
21 69844 Hardware, lid assembly, Spirit '13
22 69799 Porcelain enameled cast iron grates, qty 2, Spirit 200 series
23 69796 Set of porcelain enameled flavorizer bars, Spirit 200, '13
24 69880 Pivot table, SS, Spirit '13
25 69845 Hardware, pivoting table, Spirit '13
25 69826 Bracket for pivoting table, platinum
25 84688 Hardware, drop down table (Hardware bag F)
26 84684 Hardware, frame assembly (Hardware bag B)
26 69832 Rear cross piece
27 84684 Hardware, frame assembly (Hardware bag B)
27 74221 Rear panel, Spirit 200, '13
28 69768 LP manifold assembly, Spirit 210 LP, '13, US
28 69843 Hardware for mounting manifold, Spirit '13
29 69841 Corrugated gas line, Spirit '13
30 69790 Bulkhead assembly, Spirit '13
31 69891 QCC1 hose and regulator, 17" Shop Now$34.99
32 64818 RHS panel assembly, Spirit '14
32 84684 Hardware, frame assembly (Hardware bag B)
32 83320 Door magnet
33 84685 Hardware, tank scale assembly (Hardware bag C)
34 84685 Hardware, tank scale assembly (Hardware bag C)
34 69877 Tank scale, Spirit '13
35 69803 Grease tray, Spirit 200, '13
36 84684 Hardware, frame assembly (Hardware bag B)
36 69807 Bottom panel, Spirit 200 LP, '13, US
37 69827 Rolling caster w/plate - qty. 2
37 84683 Hardware bag A, caster assembly
38 84683 Hardware bag A, caster assembly
38 69828 Locking caster w/plate - qty. 2 Shop Now$35.99
410 56826 Addendum for Mexico (Required for Mexico only)
410 57364 Literature kit, Spirit 210/310 LP, '13
410 48938 Literature Kit, Spirit 210/310 LP, US/CA
410 57201 Assembly guide, Spirit 210-Do not order-advise to go to website
410 58300 Assembly guide, Spirit 210 US (2013-2015)
470 69844 Hardware, lid assembly, Spirit '13
470 83656 Hardware for door w/hinge, Spirit 210/310/320 '14
470 84685 Hardware, tank scale assembly (Hardware bag C)
470 84688 Hardware, drop down table (Hardware bag F)
470 69843 Hardware for mounting manifold, Spirit '13
470 83351 Hardware bag for Spirit 210, '13
470 84684 Hardware, frame assembly (Hardware bag B)
470 84687 Hardware, control panel assembly, Spirit 200 (Hardware bag E)
470 69845 Hardware, pivoting table, Spirit '13
470 84683 Hardware bag A, caster assembly
470 84686 Hardware, ignition module assembly (Hardware bag D)
470 84689 Hardware for door w/hinge (Hardware bag G) '13 (models made prior to 10/1/2013)
480 69850 Electronic igniter kit, Spirit 210/310
480 68949 Burner tube kit, Spirit E-215
480 83156 Catch pan kit
510 7516 Weber Handle Light, 2015-2019
510 7659 Rotisserie kit, Spirit II 200/300, US/MX/CA Shop Now$106.99
510 7138 Premium Grill Cover, Spirit II 200 Shop Now$64.99
510 7658 Griddle, porcelain enamel cast iron, Spirit II 200/300 Shop Now$95.99
510 7614 Rotisserie Kit, Spirit 200/300 series
