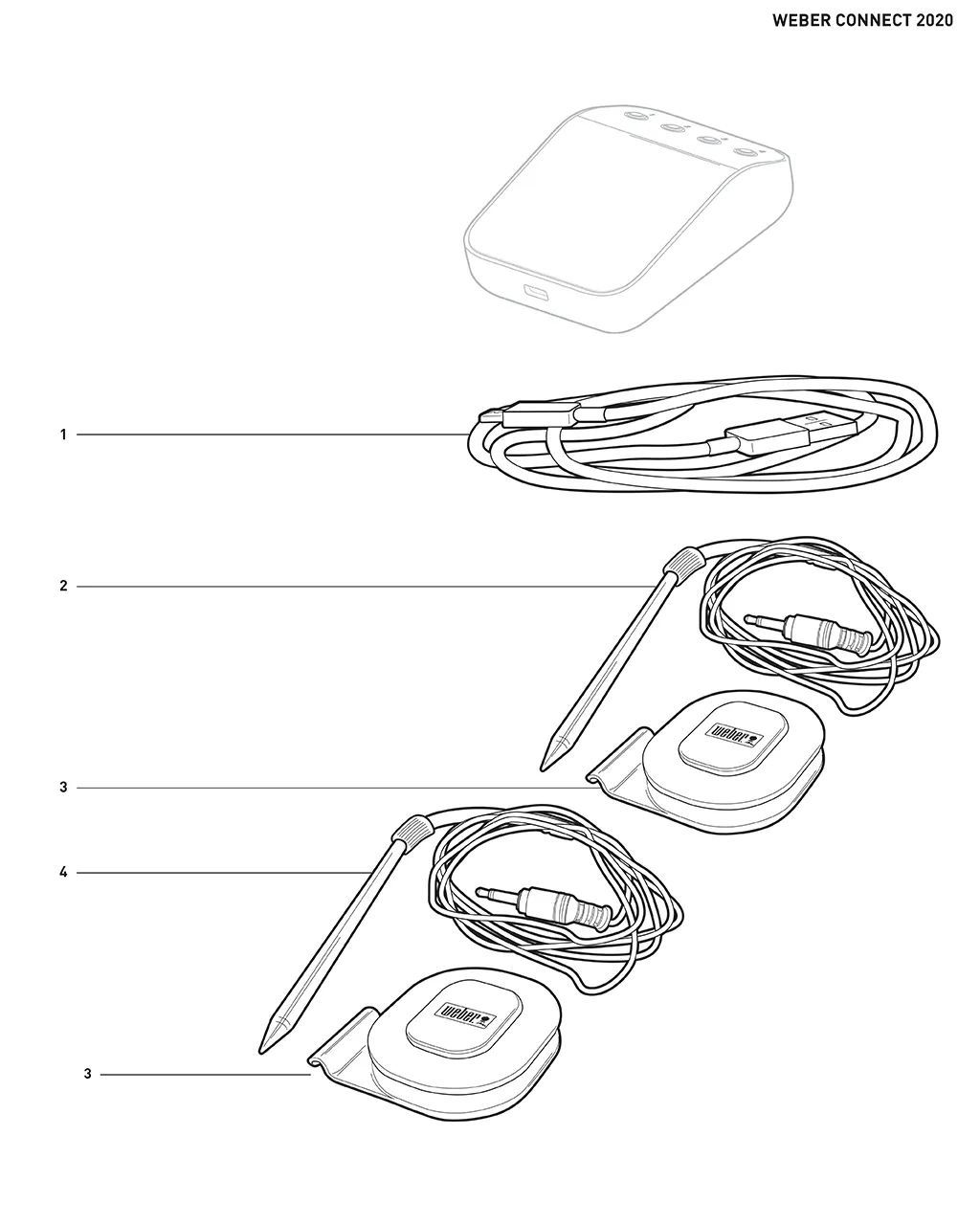

Seq	Part #	Description
1	69290	Charging cable
2	69332	Probe Sleeve, 4 pack, Weber Connect
2	69291	Ambient probe w/blue sleeve
3	66693	Probe holder
4	69332	Probe Sleeve, 4 pack, Weber Connect
4	69292	Meat probe w/red sleeve
