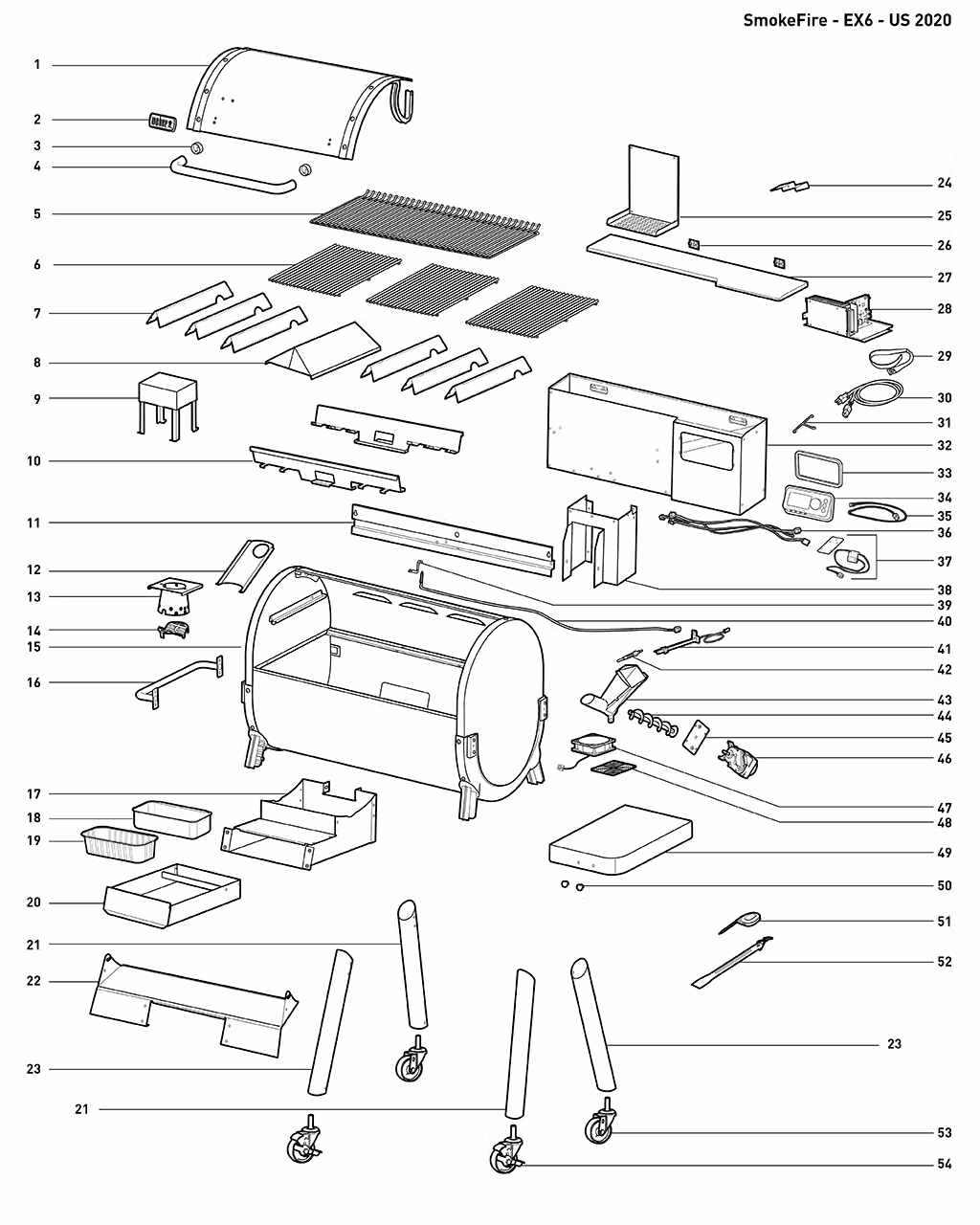

  • Schematic Image 23510001
  • SmokeFire EX6 Wood Fired Pellet Grill
  • 23510001

Additional Parts

Seq Part # Description Available Online
1 68992 Lid assembly, black, 36" SmokeFire
1 69259 Lid Hardware (nuts & washers)
2 67063 Logo plate, SS w/black filling, Spirit II
3 69249 Lid handle spacer/bezel
4 68989 Lid handle, EX-6
4 68974 Lid hardware (screws & washers)
5 68932 Upper cooking grate, EX-6 (nickel plated steel)
6 68926 Lower cooking grate, EX-6, set of 3, (nickel plated steel)
7 69262 Flavorizer bar, set of 6, EX-6, SS
8 68947 Large Flavorizer Bar, EX-4/EX-6
9 68937 Diffuser weldment
10 68936 Flavorizer bar bracket (single)
11 68963 Hopper support bar
12 68938 Pellet slide
13 68939 Burn pot
14 68940 Burn pot grate
15 69259 Lid Hardware (nuts & washers)
15 69252 Cookbox assembly, EX-6
15 68972 Side table/side handle reinforcement plate/bracket set
16 68972 Side table/side handle reinforcement plate/bracket set
16 68916 LHS handle
17 68923 Enclosure for grease tray
17 68973 Hardware for legs/skirt
18 70379 Catch pan kit
19 6498 Drip pan (qty 10) Shop Now$11.99
20 68924 Grease tray assembly
21 68919 Leg, right-front, left-rear
22 68922 Front skirt, EX-6
23 68920 Leg, right-rear, left-front
24 68941 Pellet hatch release
25 68958 Hopper access panel
26 68978 Hopper hinge kit w/hardware
27 68987 Hopper lid, EX-6
28 68967 Motherboard/power assembly, 120V, EX-6
28 68977 Controller mount hardware
29 69307 Cord wrap hook & loop, 14" x .75
30 69258 Power cord/plug
31 68971 Hopper T-guard wire
32 68976 Hopper mount hardware
32 68975 Wire clip (qty 3)
32 69254 Hopper assembly, EX-6
32 69230 Hopper Pellet Slide, EX-6
33 68965 Controller bezel
34 68964 Connect Controller Assembly
35 68943 Wiring harness
36 68944 Cable for fan
36 68975 Wire clip (qty 3)
36 68946 Cable for glow plug
36 68945 Cable for motor
37 68981 Pellet sensor shield
37 68955 Pellet sensor bracket
38 69373 Hopper lower panel
39 68954 Thermocouple bracket
40 68942 Thermocouple
41 68956 Glow plug bracket assembly
42 68957 Glow plug igniter
43 69374 Welded chute assembly, SmokeFire
43 68979 Hardware for auger tube
43 69376 Auger/Motor/Tube/Spout Weld SmokeFire
44 68982 Auger
44 68979 Hardware for auger tube
44 69375 Motor/Auger Assembly SmokeFire 20
45 69377 Plate Mount, tube/motor, SmokeFire
46 68984 Auger Motor
46 69375 Motor/Auger Assembly SmokeFire 20
47 68952 Fan Assembly
48 68953 Fan guard
49 68990 RHS table, stainless steel
49 68972 Side table/side handle reinforcement plate/bracket set
50 69263 Tool hook (qty 2)
51 68970 Meat probe w/red sleeve, SmokeFire
52 69257 Grease scraping tool
53 68917 Rolling casting, SmokeFire, (qty 1)
54 68918 Locking caster, SmokeFire, (qty 1)
410 40223501 Literature Kit
470 68972 Side table/side handle reinforcement plate/bracket set
470 68975 Wire clip (qty 3)
470 68979 Hardware for auger tube
470 68974 Lid hardware (screws & washers)
470 68977 Controller mount hardware
470 75926 Hardware Kit, SmokeFire
470 68973 Hardware for legs/skirt
470 68976 Hopper mount hardware
470 69259 Lid Hardware (nuts & washers)
