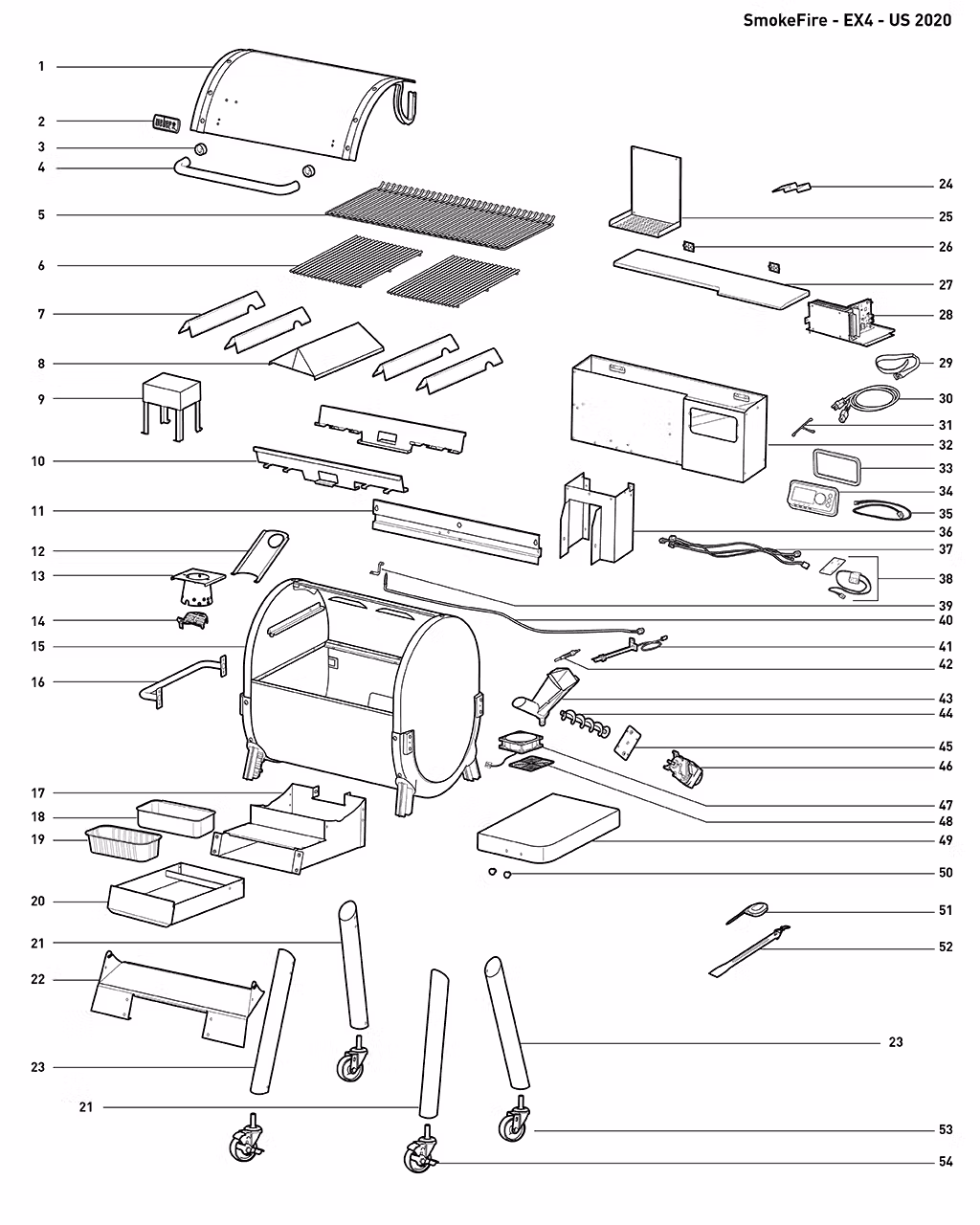

  • Schematic Image 22510201
  • SmokeFire EX4 (2nd Gen) Wood Fired Pellet Grill
  • 22510201

Additional Parts

Seq Part # Description Available Online
1 69259 Lid Hardware (nuts & washers)
1 68991 Lid assembly, EX-4, black
2 67063 Logo plate, SS w/black filling, Spirit II
3 69249 Lid handle spacer/bezel
4 68974 Lid hardware (screws & washers)
4 68988 Lid handle, EX-4
5 68931 Upper cooking grate, EX-4 (nickel plated steel)
6 68925 Lower cooking grate, EX-4, set of 2, (nickel plated steel)
6 69239 Grate clips, SmokeFire
7 69261 Flavorizer bar, set of 4, EX-4, SS
8 68947 Large Flavorizer Bar, EX-4/EX-6
9 68937 Diffuser weldment
10 68935 Flavorizer bar bracket, EX-4 (qty. 1)
11 68959 Hopper support bar, EX-4
12 68938 Pellet slide
12 64763 Welded Burn Pot/Grate w/Slide
13 68939 Burn pot
13 69455 Burn System Kit, SmokeFire
14 69455 Burn System Kit, SmokeFire
14 68940 Burn pot grate
15 69259 Lid Hardware (nuts & washers)
15 69251 Cookbox assembly, EX-4
15 68972 Side table/side handle reinforcement plate/bracket set
15 69397 Felt strip pack (5 total)
16 68972 Side table/side handle reinforcement plate/bracket set
16 68916 LHS handle
17 68973 Hardware for legs/skirt
17 68923 Enclosure for grease tray
18 70379 Catch pan kit
19 6498 Drip pan (qty 10) Large Grills Shop Now$15.49
20 64762 Grease Tray
21 68919 Leg, right-front, left-rear
21 68973 Hardware for legs/skirt
22 69389 Front Skirt, 24" Black
22 68973 Hardware for legs/skirt
23 68973 Hardware for legs/skirt
23 68920 Leg, right-rear, left-front
24 68941 Pellet hatch release
25 68958 Hopper access panel
26 68978 Hopper hinge kit w/hardware
27 68986 Hopper lid, EX-4
28 69403 SmokeFire Fuse (1.6A/250V)
28 68977 Controller mount hardware
28 68966 Motherboard/power assembly, 120V, EX-4
29 69307 Cord wrap hook & loop, 14" x .75
30 69258 Power cord/plug
31 68971 Hopper T-guard wire
32 69232 Hopper Pellet Slide, EX-4
32 68976 Hopper mount hardware
32 68975 Wire clip (qty 3)
32 69253 Hopper assembly, EX-4
33 68965 Controller bezel
34 68964 Connect Controller Assembly
35 68943 Wiring harness
36 69373 Hopper lower panel
37 68944 Cable for fan
37 68975 Wire clip (qty 3)
37 68946 Cable for glow plug
37 68945 Cable for motor
38 68981 Pellet sensor shield
38 68955 Pellet sensor bracket
39 68954 Thermocouple bracket
40 68942 Thermocouple
41 68956 Glow plug bracket assembly
42 69436 Glow Plug Igniter SF '21 Shop Now$24.49
43 69376 Auger/Motor/Tube/Spout Weld SmokeFire
43 69374 Welded chute assembly, SmokeFire
43 68979 Hardware for auger tube
44 69375 Motor/Auger Assembly SmokeFire 20
44 68982 Auger
44 68979 Hardware for auger tube
45 69377 Plate Mount, tube/motor, SmokeFire
46 69375 Motor/Auger Assembly SmokeFire 20
46 68984 Auger Motor
47 68952 Fan Assembly
48 68953 Fan guard
49 68972 Side table/side handle reinforcement plate/bracket set
49 68990 RHS table, stainless steel
50 69263 Tool hook (qty 2)
51 68970 Meat probe w/red sleeve, SmokeFire Shop Now$17.99
52 69257 Grease scraping tool
53 68917 Rolling caster, SmokeFire, (qty 1)
54 68918 Locking caster, SmokeFire, (qty 1)
410 40223511 Literature Kit SmokeFire 24"/36" US/
410 76688 KIT ADDENDUM/INSERTS SMOKEFIRE
470 68972 Side table/side handle reinforcement plate/bracket set
470 68975 Wire clip (qty 3)
470 68979 Hardware for auger tube
470 68974 Lid hardware (screws & washers)
470 68977 Controller mount hardware
470 75926 Hardware Kit, SmokeFire
470 68973 Hardware for legs/skirt
470 68976 Hopper mount hardware
470 69259 Lid Hardware (nuts & washers)
510 7001 SmokeFire side table Shop Now$85.99
510 7005 SmokeFire cutting board Shop Now$40.49
510 7004 SmokeFire Wet Smoke Kit Shop Now$24.49
510 7002 SmokeFire 24" front table Shop Now$85.99
