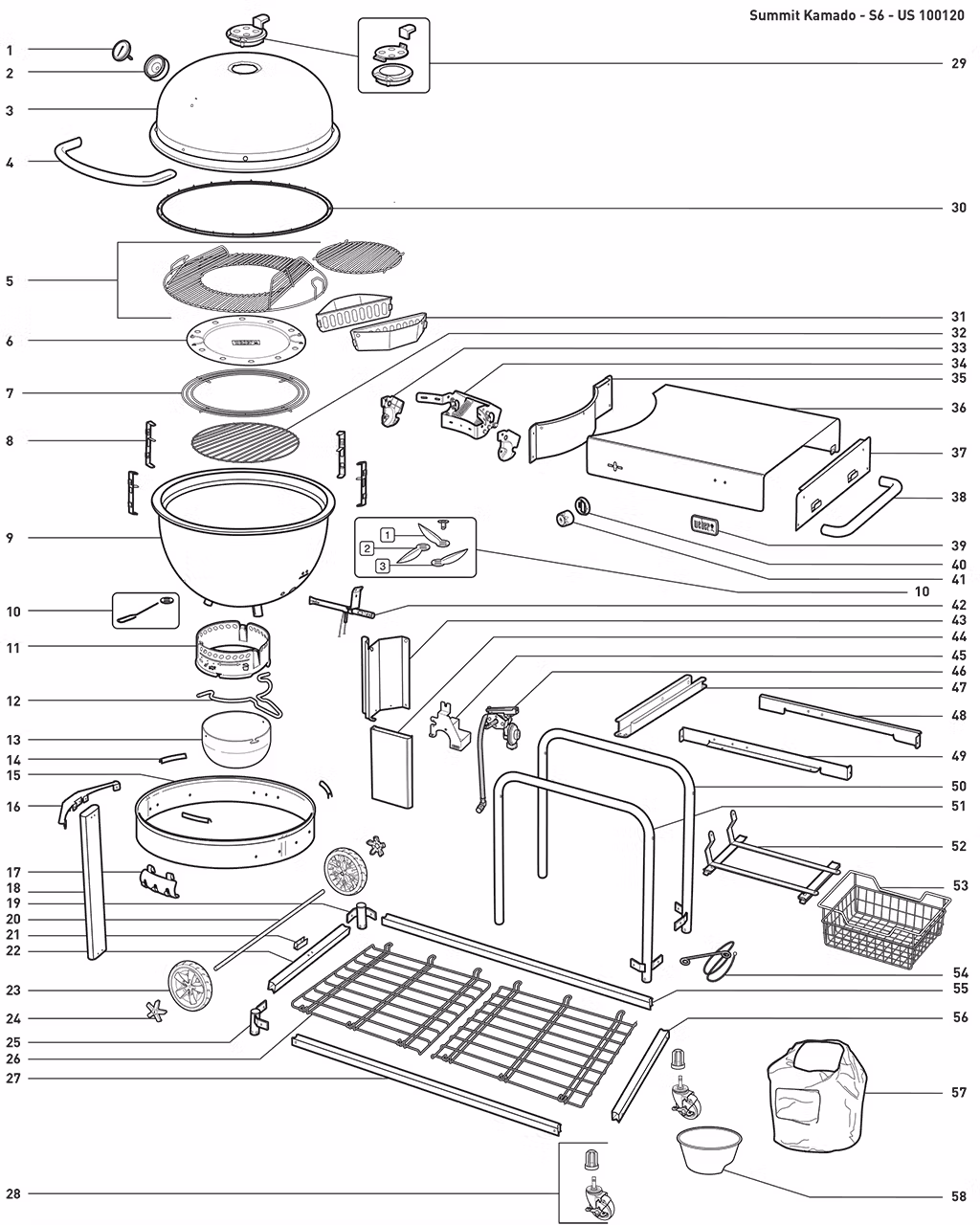

  • Schematic Image 18501101
  • Summit® Kamado S6 Charcoal Grill Center
  • 18501101

Additional Parts

Seq Part # Description Available Online
1 65828 Thermometer, Summit Charcoal
2 65827 Bezel for thermometer, qty. 1
3 65824 Lid assembly, 24", black
4 65826 Handle for lid
5 65865 Cooking grate GBS set, 24"
5 65812 Grate insert for 24" GBS Summit Charcoal
6 69437 Diffuser plate, stainless steel, Summit Kamado
7 65816 Middle grate/diffuser support
8 65833 Grill straps, set of 4
9 65832 Bowl assembly, Summit Charcoal, '16
10 90720 One-Touch cleaning kit, 22"
11 67594 Ash catcher assembly w/smoke setting, Master Touch
11 65818 Ash catcher ring w/ Smoke Indicator '19
12 67594 Ash catcher assembly w/smoke setting, Master Touch
12 67575 Ash catcher handle
13 67586 Ash catcher bowl, black
13 67594 Ash catcher assembly w/smoke setting, Master Touch
14 65817 Spacer, silicone
15 65843 Mounting ring for bowl
16 65844 Ring support bracket
17 65879 Tool holder
18 65842 Vertical tube
19 65852 Wheel mount bracket, Summit Charcoal '16
20 69458 Axle for Cart, Summit S6
21 65866 Lower vertical bracket
22 65848 LHS bottom frame connector
23 67585 Wheel w/insert, Master-Touch
24 67059 Wheel insert kit
25 65890 Hardware kit, wheel bracket
25 65851 Front wheel mount bracket
26 69446 Wire bottom rack, Summit Kamado S6
27 65838 Front bottom rail
28 66695 Caster insert, Summit Charcoal, '16
28 65839 Caster kit, Summit Charcoal
29 66982 Damper assembly, Summit Charcoal
29 65829 Damper handle, black
30 65825 Gasket, lid/bowl, fiberglass
31 62423 Char-Basket assembly (qty. 1)
32 65815 Lower charcoal grate
33 65875 Hinge covers, left/right, black
34 67231 Hinge assembly for lid/bowl, Summit Charcoal
35 65862 LHS table panel, black
36 69447 Table, Summit Kamado S6
36 65891 Hardware kit, table
37 65860 RHS table panel, black
38 65868 Handle for cart
39 91361 Weber logo
40 70883 Small bezel w/fasteners, Summit 470/670
40 88208 Hardware for bezels/control panel
41 30134602 Sear knob assembly, Summit '11, export
42 65834 Burner tube assembly, Summit Charcoal
42 65886 Hardware kit, burner/igniter
43 65855 Heat shield, tank compartment
44 65856 Door, tank compartment
44 65910 Hardware kit, Summit Charcoal door
45 65857 Regulator mounting bracket
46 41552 Retaining clip
46 65888 Hardware kit, valve/regulator
46 65864 Valve/regulator, Summit Charcoal Grilling Center '16, US
47 65859 LHS shelf bracket
48 65840 Rear table mount bracket
49 65837 Front table mount bracket
50 65836 Rear frame, black
51 65835 Front frame assembly
52 65863 Hanger, wire basket assembly
53 65850 Basket, wire assembly
54 67694 Match stick holder w/chain
55 65841 Rear bottom rail
56 65847 RHS bottom frame connector
57 7007 Fuel storage bag Shop Now$33.49
58 80664 Measuring cup, black
410 53237 Assembly/Owner's Guide, Summit Kamado S6
470 65892 Hardware kit, cart
470 65887 Hardware, plug/wingnut/magnet
470 65821 Hardware, hinge covers/lock
470 73133 Hardware kit, Summit Charcoal Grill Center, '16
