A
|
43885
|
Welcome book, Summit Charcoal, domestic
|
|
|
W
|
65821
|
Hardware, hinge covers/lock
|
|
|
W
|
73133
|
Hardware kit, Summit Charcoal Grill Center, '16
|
|
|
A
|
56232
|
Brochure, Gourmet Barbecue System
|
|
|
W
|
65892
|
Hardware kit, cart
|
|
|
A
|
44087
|
Literature kit, Summit Charcoal Grill Center
|
|
|
W
|
65887
|
Hardware, plug/wingnut/magnet
|
|
|

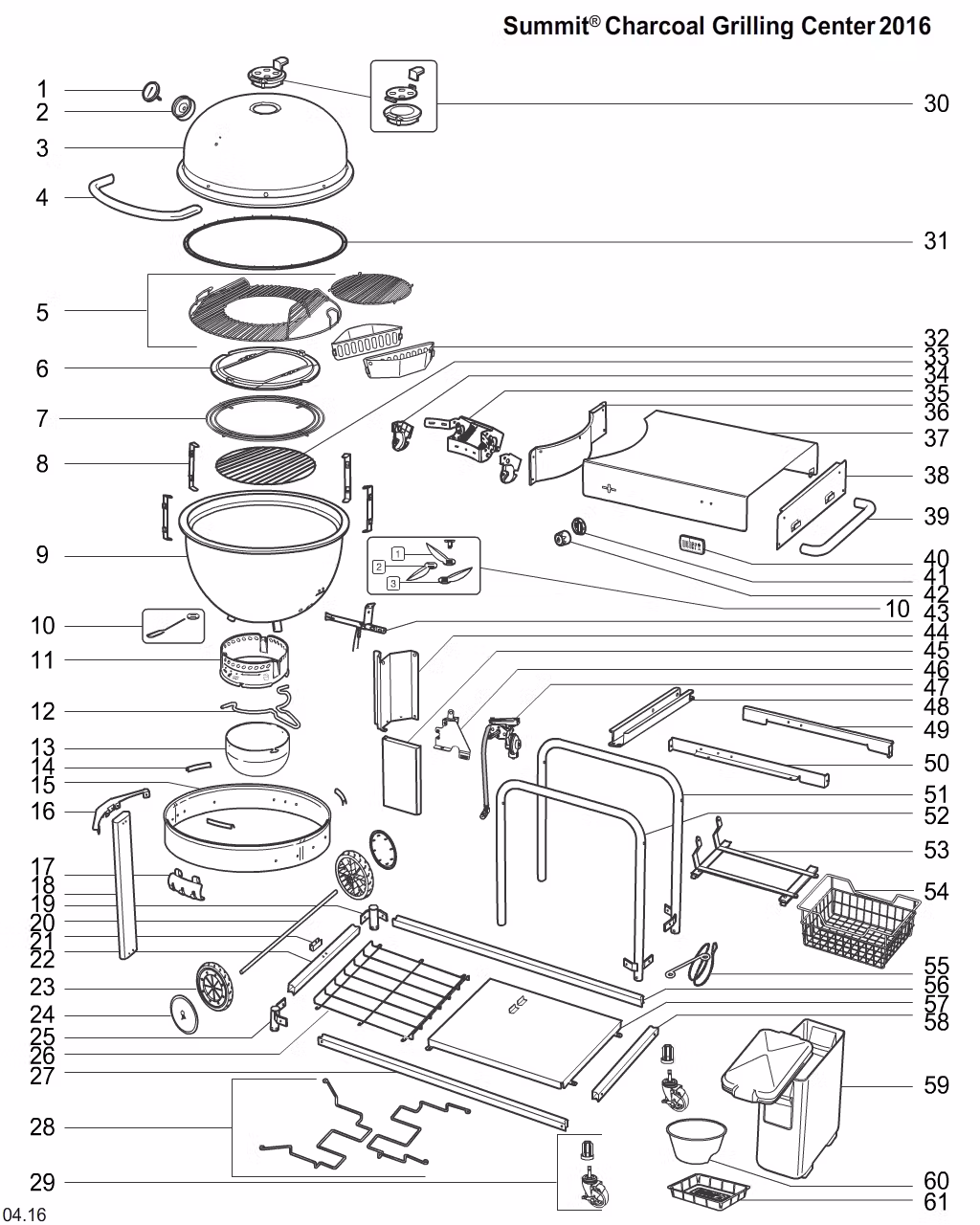

1
|
65828
|
Thermometer, Summit Charcoal
|
|
|
2
|
65827
|
Bezel for thermometer, qty. 1
|
|
|
3
|
65824
|
Lid assembly, 24", black
|
|
|
4
|
65826
|
Handle for lid
|
|
|
5
|
65865
|
Cooking grate GBS set, 24"
|
|
|
5
|
65812
|
Grate insert for 24" GBS Summit Charcoal
|
|
|
6
|
65814
|
Diffuser plate assembly
|
|
|
7
|
65816
|
Middle grate/diffuser support
|
|
|
8
|
65833
|
Grill straps, set of 4
|
|
|
9
|
65832
|
Bowl assembly, Summit Charcoal, '16
|
|
|
10
|
90720
|
One-Touch cleaning kit, 22"
|
|
|
11
|
65818
|
Ash catcher ring w/ Smoke Indicator '19
|
|
|
11
|
67594
|
Ash catcher assembly w/smoke setting, Master Touch
|
|
|
12
|
67594
|
Ash catcher assembly w/smoke setting, Master Touch
|
|
|
12
|
67575
|
Ash catcher handle
|
|
|
13
|
67594
|
Ash catcher assembly w/smoke setting, Master Touch
|
|
|
13
|
67586
|
Ash catcher bowl, black
|
|
|
14
|
65817
|
Spacer, silicone
|
|
|
15
|
65843
|
Mounting ring for bowl
|
|
|
16
|
65844
|
Ring support bracket
|
|
|
17
|
65879
|
Tool holder
|
|
|
18
|
65842
|
Vertical tube
|
|
|
19
|
65852
|
Wheel mount bracket, Summit Charcoal '16
|
|
|
20
|
65853
|
Axle for cart
|
|
|
21
|
65866
|
Lower vertical bracket
|
|
|
22
|
65848
|
LHS bottom frame connector
|
|
|
23
|
65854
|
Wheel w/cover, 8"
|
|
|
24
|
65881
|
Wheel inserts, 8", gray, qty 2
|
|
|
25
|
65890
|
Hardware kit, wheel bracket
|
|
|
25
|
65851
|
Front wheel mount bracket
|
|
|
26
|
65845
|
RHS wire bottom rack
|
|
|
27
|
65838
|
Front bottom rail
|
|
|
28
|
65813
|
Diffuser holder
|
|
|
29
|
66695
|
Caster insert, Summit Charcoal, '16
|
|
|
29
|
65839
|
Caster kit, Summit Charcoal
|
|
|
30
|
65829
|
Damper handle, black
|
|
|
30
|
66982
|
Damper assembly, Summit Charcoal
|
|
|
31
|
65825
|
Gasket, lid/bowl, fiberglass
|
|
|
32
|
62423
|
Char-Basket assembly (qty. 1)
|
|
|
33
|
65815
|
Lower charcoal grate
|
|
|
34
|
65875
|
Hinge covers, left/right, black
|
|
|
35
|
67231
|
Hinge assembly for lid/bowl, Summit Charcoal
|
|
|
36
|
65862
|
LHS table panel, black
|
|
|
37
|
58937
|
Domed label, Summit Charcoal
|
|
|
37
|
65891
|
Hardware kit, table
|
|
|
37
|
65858
|
Table for Summit Charcoal
|
|
|
38
|
65860
|
RHS table panel, black
|
|
|
39
|
65868
|
Handle for cart
|
|
|
40
|
91361
|
Weber logo
|
|
|
41
|
70883
|
Small bezel w/fasteners, Summit 470/670
|
|
|
41
|
88208
|
Hardware for bezels/control panel
|
|
|
42
|
30134602
|
Sear knob assembly, Summit '11, export
|
|
|
43
|
65834
|
Burner tube assembly, Summit Charcoal
|
|
|
43
|
65886
|
Hardware kit, burner/igniter
|
|
|
44
|
65855
|
Heat shield, tank compartment
|
|
|
45
|
65856
|
Door, tank compartment
|
|
|
45
|
65910
|
Hardware kit, Summit Charcoal door
|
|
|
46
|
65857
|
Regulator mounting bracket
|
|
|
47
|
41552
|
Retaining clip
|
|
|
47
|
69433
|
Ground wire terminal
|
|
|
47
|
65888
|
Hardware kit, valve/regulator
|
|
|
47
|
65864
|
Valve/regulator, Summit Charcoal Grilling Center '16, US
|
|
|
48
|
65859
|
LHS shelf bracket
|
|
|
49
|
65840
|
Rear table mount bracket
|
|
|
50
|
65837
|
Front table mount bracket
|
|
|
51
|
65836
|
Rear frame, black
|
|
|
52
|
65835
|
Front frame assembly
|
|
|
53
|
65863
|
Hanger, wire basket assembly
|
|
|
54
|
65850
|
Basket, wire assembly
|
|
|
55
|
67694
|
Match stick holder w/chain
|
|
|
56
|
65841
|
Rear bottom rail
|
|
|
57
|
65846
|
Bottom panel, black
|
|
|
58
|
65847
|
RHS bottom frame connector
|
|
|
59
|
65820
|
Charcoal bin
|
|
|
60
|
80664
|
Measuring cup, black
|
|
|
61
|
6416
|
Aluminum drip pans - large. Package of 10
|
