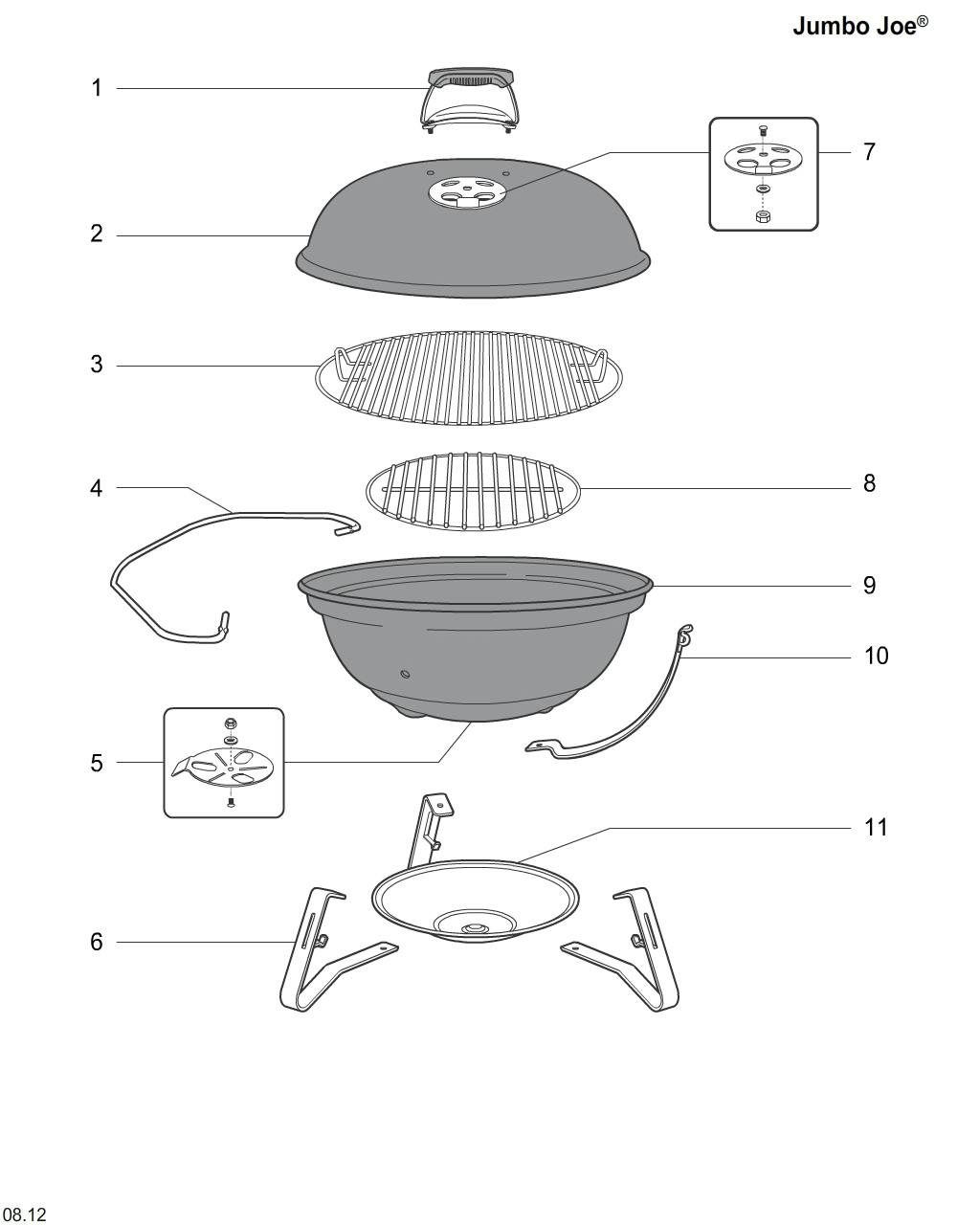

  • Schematic Image 1211001
  • Jumbo Joe 18" Blk (2013) (USA)
  • 1211001

Additional Parts

Seq Part # Description Available Online
A 54777 Charcoal owners guide, US
A 58444 Owners Guide, Portable charcoal '15
A 54774 Assembly Guide, Jumbo Joe '13, US
A 57856 Assembly Guide, Jumbo Joe, USA '15
W 83192 Small hardware pack for Jumbo Joe '13
1 80661 Handle kit w/shield, Smokey Joe, '10, gray
2 61496 Lid for Jumbo Joe '13, black (w/out handle)
3 62888 18.5" Cooking grate, nickel plated
4 61497 Wire lid lock, Jumbo Joe '13
5 61498 Bowl damper
6 61499 Leg kit for Jumbo Joe '13
7 63059 Damper kit
8 65949 Charcoal grate, 18"/47 cm
9 61500 Bowl assembly, Jumbo Joe '13, black
10 61501 Lid support, Jumbo Joe '13
11 61503 Ash catcher, Jumbo Joe '13
410 54774 Assembly Guide, Jumbo Joe '13, US
410 57856 Assembly Guide, Jumbo Joe, USA '15
410 54777 Charcoal owners guide, US
410 58444 Owners Guide, Portable charcoal '15
470 83192 Small hardware pack for Jumbo Joe '13
480 61499 Leg kit for Jumbo Joe '13
510 7447 Compact Rapidfire Chimney Starter Shop Now$18.99
