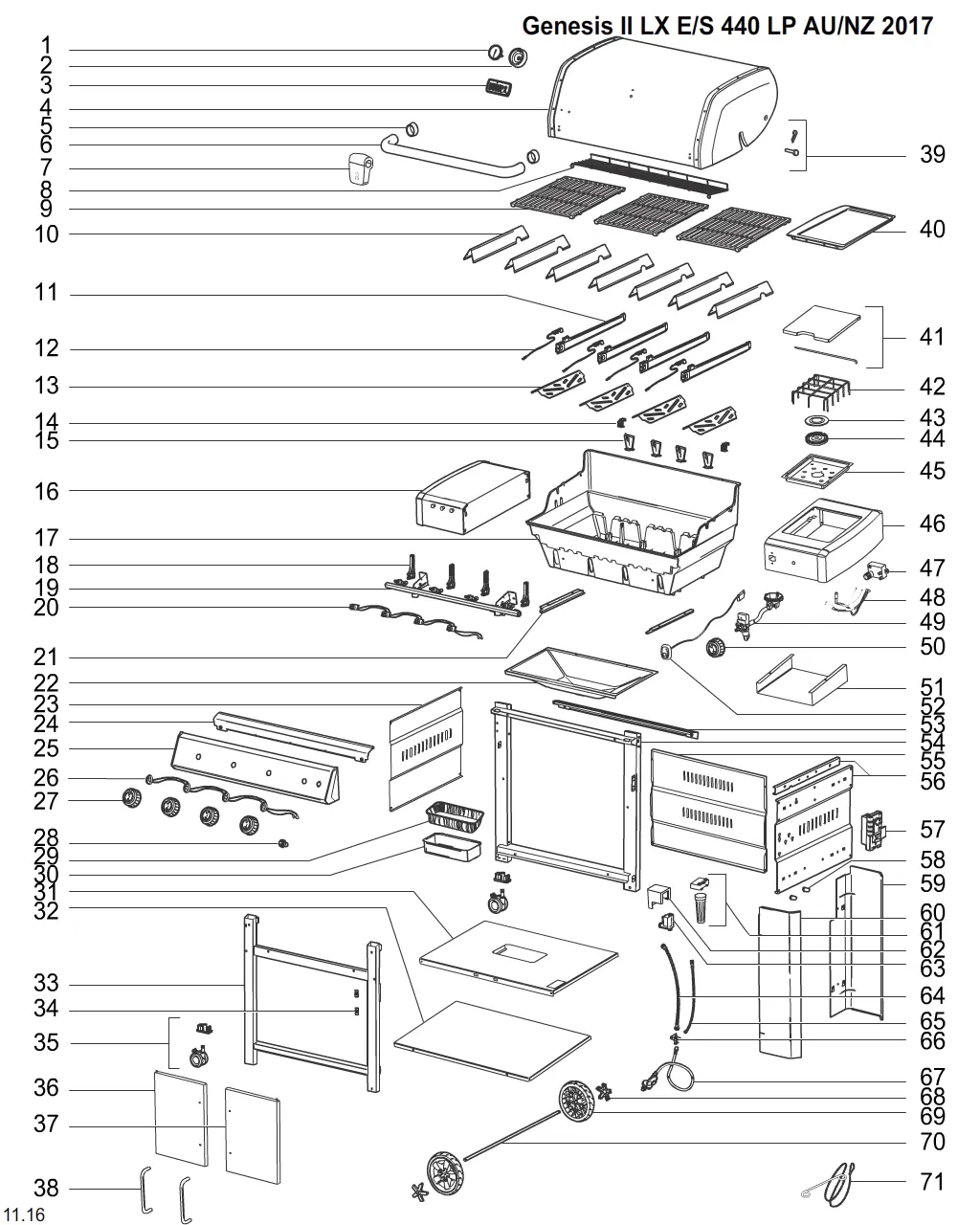

1
|
67089
|
Thermometer, C/F, Genesis II, export
|
|
|
2
|
66049
|
Thermometer bezel, Genesis
|
|
|
3
|
66282
|
Weber logo
|
|
|
4
|
67203
|
Lid assembly, Genesis II LX, black '18
|
|
|
4
|
66061
|
Lid bumpers (qty 2)
|
|
|
4
|
66434
|
Lid assembly, Genesis II LX E-440, black
|
|
|
5
|
66831
|
Handle bezel, Genesis II LX, '17
|
|
|
6
|
66820
|
Hardware, handle, Genesis II LX
|
|
|
6
|
66418
|
Lid handle, Genesis II LX 440
|
|
|
7
|
69273
|
Handle light
|
|
|
8
|
66800
|
Warming rack, SS, Genesis II LX 440
|
|
|
9
|
66097
|
Set of porcelain enamel cast iron grates, Genesis II E-410
|
|
|
10
|
66797
|
Stainless steel flavorizer bars, Genesis II LX 440 (qty 7)
|
|
|
10
|
67208
|
LP Burner tube set, Genesis II LX, qty 2
|
|
|
11
|
67208
|
LP Burner tube set, Genesis II LX, qty 2
|
|
|
12
|
66364
|
Igniter electrode w/wire, 51", blue
|
|
|
12
|
66362
|
Igniter electrode w/wire, 36", black
|
|
|
12
|
66833
|
Igniter electrode w/wire, 27", yellow
|
|
|
12
|
66363
|
Igniter electrode w/wire, 46", green
|
|
|
13
|
66686
|
Heat deflector, Genesis/Summit (qty 4)
|
|
|
14
|
66683
|
Hardware for cookbox rails/brackets, Genesis II/LX series
|
|
|
14
|
69284
|
Warming rack bracket set
|
|
|
15
|
66683
|
Hardware for cookbox rails/brackets, Genesis II/LX series
|
|
|
15
|
66029
|
Burner tube clamp set, Genesis II E/SE series (qty 2)
|
|
|
16
|
74335
|
Pressure plates, Genesis II LX series (qty 2)
|
|
|
16
|
66889
|
LHS table, Genesis II, export
|
|
|
16
|
74333
|
Hardware kit, fixed table, Genesis II LX series
|
|
|
17
|
66824
|
Hardware for cookbox, Genesis II/II LX
|
|
|
17
|
66683
|
Hardware for cookbox rails/brackets, Genesis II/LX series
|
|
|
17
|
67412
|
Cookbox, Genesis II 410/415, '19
|
|
|
17
|
66822
|
Hardware, manifold, Genesis II LX
|
|
|
18
|
66357
|
Clip for ignition wire routing, round set (qty 2)
|
|
|
19
|
66480
|
LP manifold assembly, Genesis II LX 440
|
|
|
19
|
66822
|
Hardware, manifold, Genesis II LX
|
|
|
20
|
66414
|
Igniter harness, Genesis II LX 440
|
|
|
21
|
66028
|
Bottom tray rails, Genesis II E/SE series
|
|
|
21
|
66683
|
Hardware for cookbox rails/brackets, Genesis II/LX series
|
|
|
22
|
66037
|
Grease tray, Genesis II/LX E/SE-410/440
|
|
|
23
|
66766
|
LHS panel, Genesis II LX series
|
|
|
23
|
66819
|
Hardware, frame/panels, Genesis II LX
|
|
|
24
|
66823
|
Hardware, mid panel/scale/hanger
|
|
|
24
|
66230
|
Top trim for control panel, SS, Genesis II/LX 400 series
|
|
|
25
|
66461
|
Control panel assembly, Genesis II LX 440
|
|
|
25
|
66819
|
Hardware, frame/panels, Genesis II LX
|
|
|
26
|
66410
|
LED harness wire/clip assembly, Genesis II LX 440
|
|
|
27
|
66725
|
Rain boot for knobs, Genesis II LX (qty 2)
|
|
|
27
|
66754
|
Control knob kit, Genesis II LX (qty 2)
|
|
|
28
|
69282
|
Light/momentary switch, Genesis/Summit
|
|
|
29
|
6498
|
Drip pan (qty 10) Large Grills
|
Shop Now$35.95
|
|
30
|
70379
|
Catch pan kit
|
|
|
31
|
66422
|
Catch pan holder panel, Genesis II LX 440
|
|
|
31
|
66823
|
Hardware, mid panel/scale/hanger
|
|
|
31
|
83320
|
Door magnet
|
|
|
32
|
66760
|
Bottom panel, Genesis II LX 440
|
|
|
32
|
66914
|
Hardware for rear/bottom panel, Genesis II LX
|
|
|
33
|
66989
|
Front frame, Genesis II LX 4 burner
|
|
|
33
|
66819
|
Hardware, frame/panels, Genesis II LX
|
|
|
34
|
66830
|
Wire clips (qty 3)
|
|
|
35
|
67070
|
Insert kit for casters, Genesis II LX
|
|
|
35
|
67067
|
Casters (qty 2)
|
|
|
36
|
66468
|
LHS door assembly, Genesis II LX E-440
|
|
|
37
|
66469
|
RHS door assembly, Genesis II LX E-440
|
|
|
38
|
69285
|
Door handle w/bezels (qty 1)
|
|
|
39
|
66438
|
Lid hardware, Genesis/Searwood
|
|
|
40
|
66881
|
Griddle, porcelain enamel
|
|
|
41
|
66893
|
Side burner lid, Genesis II 340/355/440/455, export
|
|
|
42
|
66399
|
Side burner grate/trivet, Genesis II LX series
|
|
|
43
|
66400
|
Side burner cap
|
|
|
44
|
91173
|
Side burner ring
|
|
|
45
|
66397
|
Side burner tray, Genesis II LX series
|
|
|
46
|
66388
|
LP side burner assembly, Genesis II LX series
|
|
|
46
|
74333
|
Hardware kit, fixed table, Genesis II LX series
|
|
|
46
|
66511
|
Side burner table, Genesis II LX series
|
|
|
46
|
74335
|
Pressure plates, Genesis II LX series (qty 2)
|
|
|
46
|
66347
|
iGrill Plugs, Genesis II E/SE series (qty 2)
|
|
|
46
|
66830
|
Wire clips (qty 3)
|
|
|
47
|
66259
|
Igniter module, Gen II 2B or Gen II/LX/Summit S/B
|
|
|
48
|
66394
|
Igniter kit for side burner, Genesis II LX, '17
|
|
|
48
|
66395
|
Igniter electrode w/wires, side burner, Genesis II LX series
|
|
|
49
|
73229
|
Brass hex nut
|
|
|
49
|
66391
|
LP valve assembly, side burner, Genesis II LX series
|
|
|
50
|
66398
|
Control knob, side burner, Genesis II LX series
|
|
|
51
|
66396
|
Heat/water deflector, side burner, Genesis II LX series
|
|
|
52
|
66757
|
Tank scale sensor, Genesis II LX series
|
|
|
53
|
66457
|
Top trim for rear frame, SS, Genesis II/LX 440
|
|
|
53
|
66819
|
Hardware, frame/panels, Genesis II LX
|
|
|
54
|
66449
|
Rear frame, Genesis II LX 400 series, export
|
|
|
54
|
66819
|
Hardware, frame/panels, Genesis II LX
|
|
|
55
|
66914
|
Hardware for rear/bottom panel, Genesis II LX
|
|
|
55
|
66764
|
Rear panel, Genesis II LX 440
|
|
|
56
|
66985
|
RHS panel assembly, LP
|
|
|
56
|
66819
|
Hardware, frame/panels, Genesis II LX
|
|
|
56
|
66830
|
Wire clips (qty 3)
|
|
|
57
|
88229
|
Hardware kit for LED sensor, Summit '11
|
|
|
57
|
66823
|
Hardware, mid panel/scale/hanger
|
|
|
57
|
66880
|
Tank scale assembly, export
|
|
|
58
|
66681
|
Hardware, tank glide buttons
|
|
|
59
|
66679
|
Hardware, tank panel buttons
|
|
|
59
|
66226
|
Rear tank panel, Genesis II series
|
|
|
60
|
66679
|
Hardware, tank panel buttons
|
|
|
60
|
67419
|
Front tank panel, Genesis II series
|
|
|
61
|
67202
|
Battery pack head, Genesis II LX, '18
|
|
|
61
|
70880
|
Battery pack housing
|
|
|
62
|
66358
|
Igniter module cover, Genesis II 210/310/410
|
|
|
63
|
66260
|
Igniter module, Genesis II 310/410/340/440
|
|
|
63
|
67161
|
Conduit tube for igniter wires, black
|
|
|
63
|
66505
|
Igniter kit, Genesis II LX 440
|
|
|
63
|
67693
|
Igniter wire conduit clamp, 3 pack
|
|
|
63
|
66830
|
Wire clips (qty 3)
|
|
|
64
|
66496
|
Corrugated gas line, Genesis II LX 440/640
|
|
|
65
|
66519
|
Side burner gas line w/QD fitting, Genesis II LX series
|
|
|
66
|
66516
|
LP bulkhead assembly, Genesis II LX 440/640
|
|
|
66
|
66823
|
Hardware, mid panel/scale/hanger
|
|
|
67
|
74189
|
LP hose and regulator, 90 cm, AU
|
|
|
68
|
67654
|
Wheel insert kit, Genesis II, '19
|
|
|
69
|
67445
|
Wheel w/insert, Genesis II, '19
|
|
|
70
|
66251
|
Axle w/hardware, Genesis II E/SE series
|
|
|
70
|
66682
|
Hardware for wheels
|
|
|
71
|
66534
|
Match holder assembly, Genesis LX, 440/640
|
|
|
410
|
40421106
|
Literature Kit, Genesis II 340/440, export
|
|
|
410
|
40421141
|
Literature Kit, Genesis II 340/440, export
|
|
|
470
|
66679
|
Hardware, tank panel buttons
|
|
|
470
|
66683
|
Hardware for cookbox rails/brackets, Genesis II/LX series
|
|
|
470
|
66822
|
Hardware, manifold, Genesis II LX
|
|
|
470
|
66830
|
Wire clips (qty 3)
|
|
|
470
|
73893
|
Hardware kit, Genesis II LP
|
|
|
470
|
66681
|
Hardware, tank glide buttons
|
|
|
470
|
66819
|
Hardware, frame/panels, Genesis II LX
|
|
|
470
|
66823
|
Hardware, mid panel/scale/hanger
|
|
|
470
|
66914
|
Hardware for rear/bottom panel, Genesis II LX
|
|
|
470
|
74333
|
Hardware kit, fixed table, Genesis II LX series
|
|
|
470
|
66438
|
Lid hardware, Genesis/Searwood
|
|
|
470
|
66682
|
Hardware for wheels
|
|
|
470
|
66820
|
Hardware, handle, Genesis II LX
|
|
|
470
|
66824
|
Hardware for cookbox, Genesis II/II LX
|
|
|
470
|
73174
|
Igniter module cap w/battery, Genesis II LX series
|
|
|
470
|
88229
|
Hardware kit for LED sensor, Summit '11
|
|
