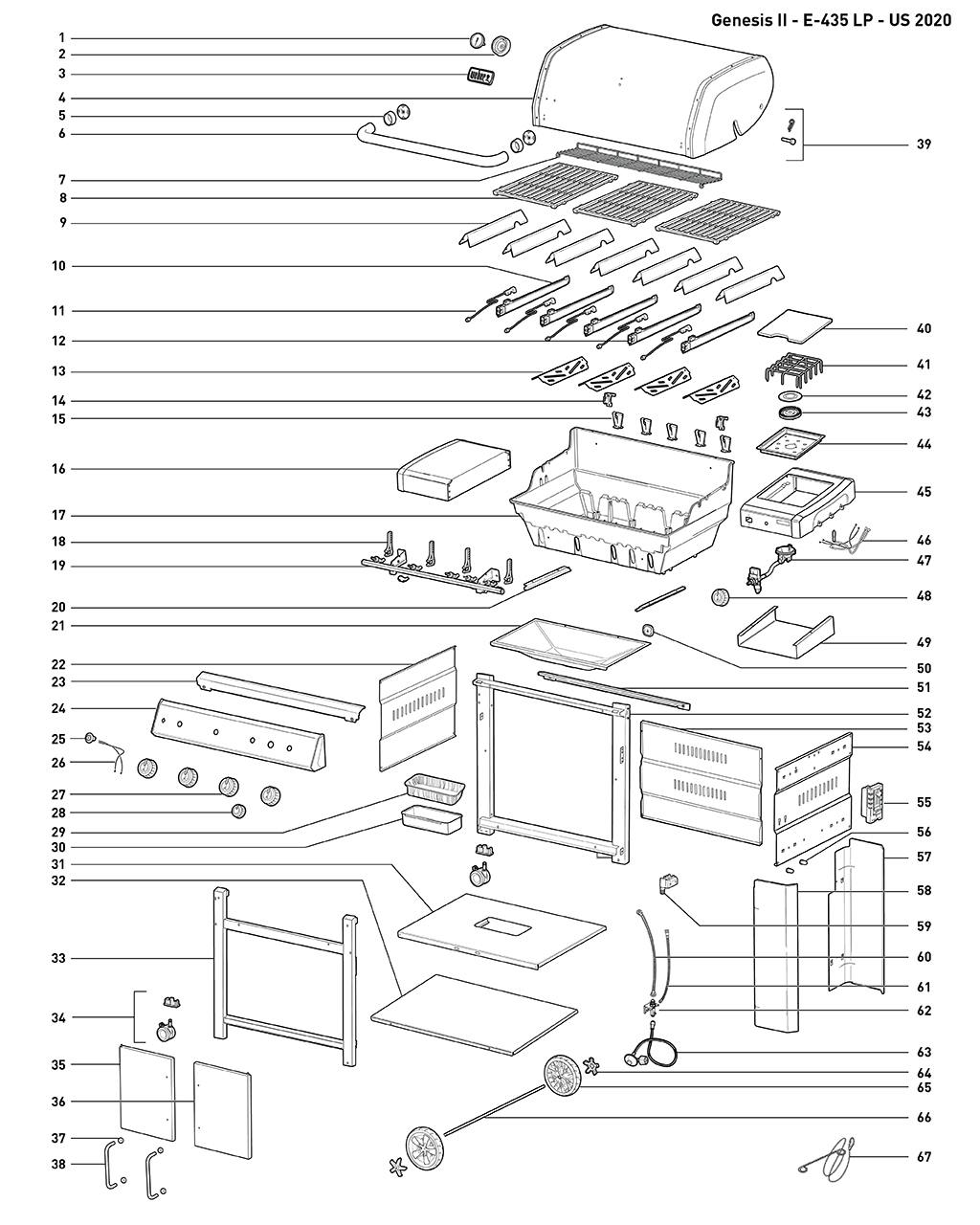

1
|
67088
|
Thermometer, '18
|
|
|
2
|
66049
|
Thermometer bezel, Genesis
|
|
|
3
|
66513
|
Logo plate, SS
|
|
|
4
|
66061
|
Lid bumpers (qty 2)
|
|
|
4
|
66438
|
Lid hardware, Genesis/Searwood
|
|
|
4
|
67373
|
Lid assembly, Genesis II 4 burner, '19, black
|
|
|
5
|
66831
|
Handle bezel, Genesis II LX, '17
|
|
|
6
|
66418
|
Lid handle, Genesis II LX 440
|
|
|
7
|
66045
|
Warming rack, Genesis II 410
|
|
|
8
|
66097
|
Set of porcelain enamel cast iron grates, Genesis II E-410
|
|
|
9
|
66797
|
Stainless steel flavorizer bars, Genesis II LX 440 (qty 7)
|
|
|
10
|
67490
|
Burner tube kit, Genesis II 4 burner
|
|
|
11
|
69319
|
Igniter electrode, yellow wire, 23"
|
|
|
11
|
69322
|
Igniter electrode, blue wire, 47"
|
|
|
11
|
69320
|
Igniter electrode, black wire, 32"
|
|
|
11
|
69323
|
Igniter electrode, red wire, 28"
|
|
|
11
|
69321
|
Igniter electrode, green wire, 42"
|
|
|
12
|
67454
|
Sear burner tube, Genesis '19
|
|
|
13
|
66686
|
Heat deflector, Genesis/Summit (qty 4)
|
|
|
14
|
69284
|
Warming rack bracket set
|
|
|
15
|
66029
|
Burner tube clamp set, Genesis II E/SE series (qty 2)
|
|
|
16
|
67376
|
LHS fixed table, Genesis II, '19
|
|
|
16
|
68582
|
Hardware for fixed table, Genesis II '19
|
|
|
17
|
66824
|
Hardware for cookbox, Genesis II/II LX
|
|
|
17
|
67413
|
Cookbox, Genesis II 430/435 '19
|
|
|
17
|
66822
|
Hardware, manifold, Genesis II LX
|
|
|
18
|
66357
|
Clip for ignition wire routing, round set (qty 2)
|
|
|
19
|
67464
|
LP Manifold assembly, Genesis II 430/435 '19
|
|
|
20
|
66028
|
Bottom tray rails, Genesis II E/SE series
|
|
|
21
|
66037
|
Grease tray, Genesis II/LX E/SE-410/440
|
|
|
22
|
66766
|
LHS panel, Genesis II LX series
|
|
|
23
|
66230
|
Top trim for control panel, SS, Genesis II/LX 400 series
|
|
|
24
|
67415
|
Control panel, Genesis II 435 '19
|
|
|
25
|
69283
|
Igniter/momentary switch, Genesis II '20
|
|
|
26
|
69318
|
Igniter button wire, 4 burner Genesis II
|
|
|
27
|
66048
|
Control knob set, Genesis II E/SE series (qty 2)
|
|
|
28
|
67444
|
Sear knob, Genesis II '19, qty. 1
|
|
|
29
|
6498
|
Drip pan (qty 10) Large Grills
|
Voir maintenant20,99 $
|
|
30
|
70379
|
Catch pan kit
|
|
|
31
|
69327
|
Catch pan panel, Genesis II 415/435, export
|
|
|
31
|
83320
|
Door magnet
|
|
|
32
|
66760
|
Bottom panel, Genesis II LX 440
|
|
|
33
|
67403
|
Front frame, Genesis II 4 burner '19, platinum
|
|
|
34
|
67066
|
Caster insert kit
|
|
|
34
|
67067
|
Casters (qty 2)
|
|
|
35
|
67431
|
LHS door w/label, Genesis II 4 burner '19, black
|
|
|
36
|
67433
|
RHS door, Genesis II 4 burner '19, black
|
|
|
37
|
69286
|
Door handle bezel set (qty 1)
|
|
|
38
|
69285
|
Door handle w/bezels (qty 1)
|
|
|
39
|
66438
|
Lid hardware, Genesis/Searwood
|
|
|
40
|
66401
|
Side burner lid, Genesis II LX series
|
|
|
41
|
66399
|
Side burner grate/trivet, Genesis II LX series
|
|
|
42
|
66400
|
Side burner cap
|
|
|
43
|
91173
|
Side burner ring
|
|
|
44
|
66397
|
Side burner tray, Genesis II LX series
|
|
|
45
|
67385
|
RHS side burner table, Genesis II, '19
|
|
|
45
|
68582
|
Hardware for fixed table, Genesis II '19
|
|
|
46
|
69313
|
Side burner igniter wires/electrode, Genesis II 430/435
|
|
|
47
|
67526
|
Valve/cup assembly for LP side burner, Genesis II, '19
|
|
|
48
|
66398
|
Control knob, side burner, Genesis II LX series
|
|
|
49
|
66396
|
Heat/water deflector, side burner, Genesis II LX series
|
|
|
49
|
67661
|
Wire clip w/adhesive for side burner/green wires
|
|
|
50
|
67334
|
iGrill cover w/snap
|
|
|
51
|
66457
|
Top trim for rear frame, SS, Genesis II/LX 440
|
|
|
52
|
67405
|
Rear frame, Genesis II 4 burner '19, platinum
|
|
|
53
|
66764
|
Rear panel, Genesis II LX 440
|
|
|
54
|
69328
|
RHS panel, Genesis II, '20
|
|
|
55
|
66232
|
Tank scale assembly
|
|
|
56
|
66681
|
Hardware, tank glide buttons
|
|
|
57
|
66226
|
Rear tank panel, Genesis II series
|
|
|
57
|
66679
|
Hardware, tank panel buttons
|
|
|
58
|
67419
|
Front tank panel, Genesis II series
|
|
|
58
|
66679
|
Hardware, tank panel buttons
|
|
|
59
|
69311
|
Igniter kit, Genesis II 430/435
|
|
|
59
|
69315
|
Igniter module
|
|
|
60
|
66165
|
Corrugated gas line, Genesis II E/SE-410/610
|
|
|
61
|
66519
|
Side burner gas line w/QD fitting, Genesis II LX series
|
|
|
62
|
66516
|
LP bulkhead assembly, Genesis II LX 440/640
|
|
|
63
|
67069
|
QCC1 Hose and Regulator, 21"
|
Voir maintenant55,99 $
|
|
64
|
67654
|
Wheel insert kit, Genesis II, '19
|
|
|
65
|
67445
|
Wheel w/insert, Genesis II, '19
|
|
|
66
|
66251
|
Axle w/hardware, Genesis II E/SE series
|
|
|
67
|
66346
|
Match stick holder, Genesis II E/SE-410/610
|
|
|
410
|
40441805
|
Literature kit, Genesis II 335/435 LP, US/CA
|
|
|
470
|
66679
|
Hardware, tank panel buttons
|
|
|
470
|
73041
|
Hardware Kit, CC LP , Genesis '20
|
|
|
470
|
73432
|
Hardware bag D, trim
|
|
|
470
|
73437
|
Hardware bag H, tank panels LP, '19
|
|
|
470
|
73034
|
Hardware Bag E Igniter module
|
|
|
470
|
73397
|
Hardware bag G, fixed table, '19
|
|
|
470
|
73434
|
Hardware bag B, frame/tank scale
|
|
|
470
|
73035
|
Hardware Bag F Doors Genesis II, '20
|
|
|
470
|
73415
|
Hardware bag A, frame/wheel '19
|
|
|
470
|
73435
|
Hardware bag C, cookbox '19
|
|
|
510
|
7137
|
Cover for 20 lb. propane tank
|
|
|
510
|
7212
|
iGrill Pro Ambient Probe
|
|
|
510
|
7653
|
Rotisserie, Genesis II/LX 400/600 series
|
|
|
510
|
6498
|
Drip pan (qty 10) Large Grills
|
Voir maintenant20,99 $
|
|
510
|
7204
|
Weber iGrill 3
|
|
|
510
|
7516
|
Weber Handle Light, 2015-2019
|
|
|
510
|
8854
|
Sear grate, Genesis II/LX 300/400/600
|
|
|
510
|
7131
|
Premium grill cover, Genesis II/LX 400
|
|
|
510
|
7211
|
iGrill Pro Meat Probe
|
Voir maintenant23,99 $
|
|
510
|
7599
|
Griddle, Genesis II 300/400/600 series
|
Voir maintenant126,99 $
|
