A
|
48454
|
Assembly Guide, Summit 670 LP '16
|
|
|
B
|
56205
|
Literature kit, Summit 670 NG '11, US/ES/F
|
|
|
A
|
59804
|
Literature kit, Summit 670 NG, '17
|
|
|
W
|
84280
|
Hardware kit, Summit '11
|
|
|
A
|
56826
|
Addendum for Mexico (Required for Mexico only)
|
|
|
W
|
84269
|
Table reinforcement plate kit
|
|
|

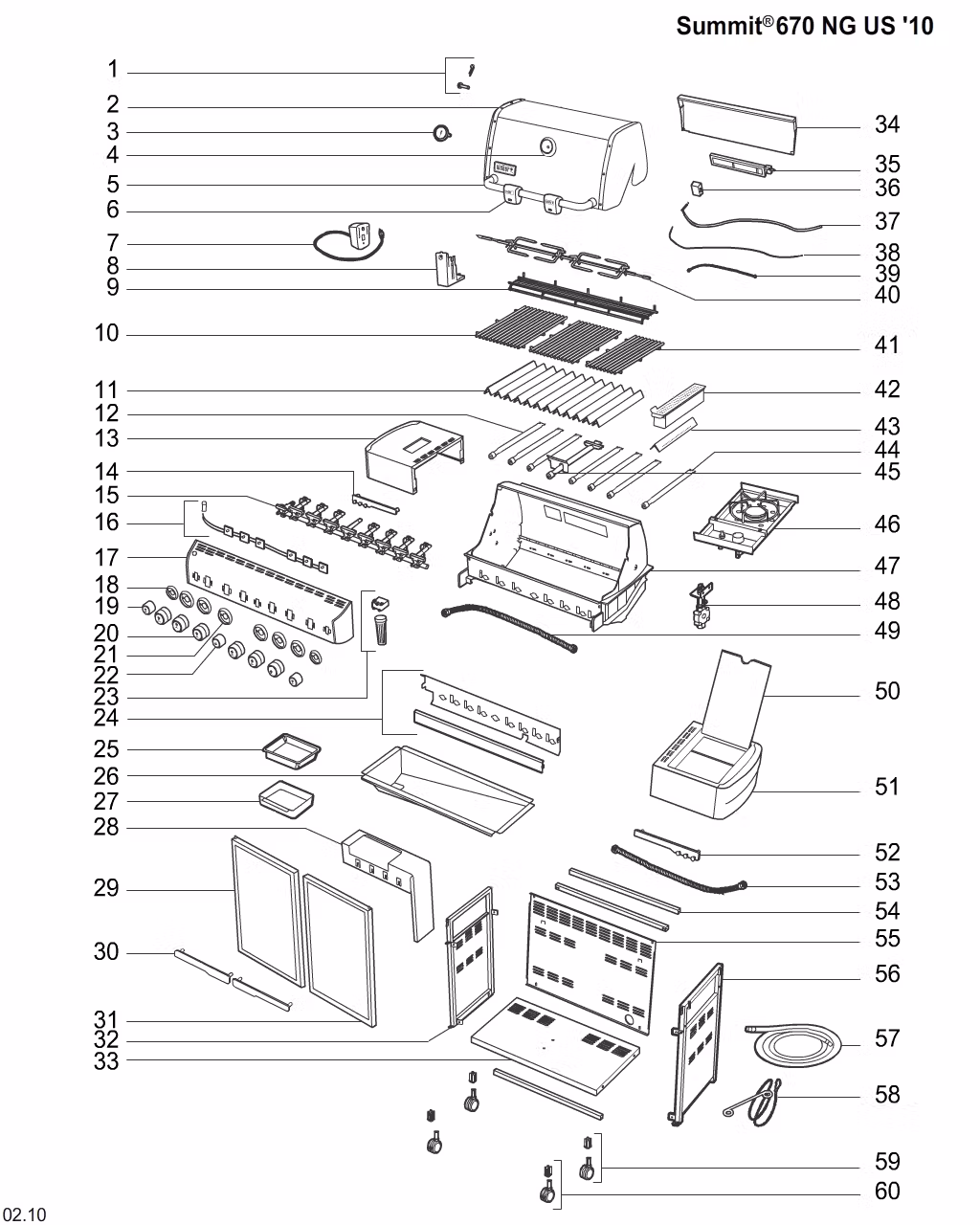

1
|
70302
|
Hardware kit, Summit Lid
|
|
|
2
|
66513
|
Logo plate, SS
|
|
|
2
|
66380
|
Lid assembly, SS, Summit 600 series
|
|
|
3
|
67088
|
Thermometer, '18
|
|
|
4
|
67717
|
Bezel for Genesis/Summit, '07
|
|
|
5
|
65908
|
Hardware pack for handle
|
|
|
5
|
70369
|
Handle with bezels/spacers/hardware, Summit 600 series
|
Voir maintenant66,99 $
|
|
6
|
69273
|
Handle light
|
|
|
7
|
65579
|
Rotisserie motor, Type B, '15
|
|
|
8
|
70888
|
Plastic latch w/spring
|
|
|
8
|
66339
|
Tuck away rotisserie bracket
|
|
|
9
|
70190
|
Warming rack, Summit 600 '07
|
Voir maintenant73,99 $
|
|
10
|
70372
|
Rod-style grate, SS, 11.8", qty. 1
|
|
|
10
|
67552
|
Set of stainless steel grates, Summit 640/650/660/670
|
|
|
11
|
67670
|
Stainless steel flavorizer bars, full set, Summit 640/650/660/670
|
|
|
11
|
70375
|
Flavorizer bars, SS, set of 4
|
|
|
12
|
70306
|
Single burner tube for main burner, Summit '07, qty 1
|
|
|
12
|
67558
|
Burner tube kit, Summit 660/670
|
|
|
13
|
66321
|
LHS table assembly, SS '17
|
|
|
13
|
62773
|
Hardware for table assembly, Genesis 300 series, '11
|
|
|
14
|
70312
|
LHS tool holder with hardware
|
|
|
14
|
81803
|
Small hardware pack
|
|
|
15
|
88067
|
Manifold hardware, Summit '07
|
|
|
15
|
79177
|
NG manifold assembly, Summit E/S 660/670
|
|
|
16
|
70882
|
Wiring harness, Summit 670
|
|
|
16
|
70189
|
Momentary light switch, Summit '11
|
|
|
17
|
66329
|
Control panel, Summit 670, '17
|
|
|
17
|
88231
|
Hardware kit for control panel, Summit '11
|
|
|
18
|
88208
|
Hardware for bezels/control panel
|
|
|
18
|
70883
|
Small bezel w/fasteners, Summit 470/670
|
|
|
19
|
70378
|
Control knob for IR burner/smoker burner, qty 1
|
|
|
20
|
91538
|
Lighted control knob assembly, qty 2 (2012 and later models)
|
|
|
20
|
67692
|
Control Knob Kit, Summit 660/670
|
Voir maintenant115,99 $
|
|
21
|
88208
|
Hardware for bezels/control panel
|
|
|
21
|
70318
|
Bezel for main burners with hardware
|
|
|
22
|
70868
|
Sear knob assembly
|
|
|
23
|
70880
|
Battery pack housing
|
|
|
23
|
70879
|
Battery pack head
|
|
|
24
|
70874
|
Heat shield/water baffle, Summit 670
|
|
|
24
|
88210
|
Hardware for burner tubes, Genesis/Summit '07
|
|
|
25
|
6498
|
Drip pan (qty 10) Large Grills
|
Voir maintenant20,99 $
|
|
26
|
70113
|
Grease tray, Summit 600 '11, SS
|
|
|
27
|
70379
|
Catch pan kit
|
|
|
28
|
88063
|
Hardware for tank blocker
|
|
|
28
|
70322
|
Tank blocker (catch pan holder), Summit 600 series
|
|
|
29
|
91357
|
Door magnet
|
|
|
29
|
66335
|
LHS door assembly, SS, Summit S-600 '17
|
|
|
30
|
70327
|
Door handles with hardware
|
Voir maintenant68,99 $
|
|
31
|
91357
|
Door magnet
|
|
|
31
|
66274
|
RHS door assembly, SS, Summit S-600 '17
|
|
|
32
|
70332
|
Adjustable door hinge
|
|
|
32
|
79494
|
LHS frame assembly, Summit E/S 400-600 series, '12
|
|
|
33
|
91316
|
Bottom panel, Summit Platinum 6 burner NG, '10
|
|
|
33
|
67762
|
Hardware kit for bottom panel
|
|
|
34
|
70392
|
Hardware for IR cover
|
|
|
34
|
67513
|
IR cover, Summit 6 burner, black
|
|
|
34
|
43291
|
IR Burner black plastic tubing/wire wrap, Summit '14
|
|
|
35
|
70389
|
IR burner with bracket
|
|
|
35
|
70385
|
NG Orifice for IR burner, with nut
|
|
|
36
|
70338
|
Cover box for IR burner
|
|
|
37
|
6021713
|
NUT M8 X 1 HEX BRASS
|
|
|
37
|
70390
|
Thermocouple with electrode and wire
|
|
|
38
|
70390
|
Thermocouple with electrode and wire
|
|
|
38
|
6021713
|
NUT M8 X 1 HEX BRASS
|
|
|
39
|
70398
|
Gas line for IR burner, 64"
|
|
|
40
|
70380
|
Screws for rotisserie forks, qty 4
|
|
|
40
|
84116
|
Rotisserie hardware for tuckaway rotisserie, w/forks, '10
|
|
|
40
|
80647
|
Rotisserie shaft, Summit E/S 600 series, '12
|
|
|
41
|
70373
|
Rod-style grate, SS, 8.1", qty. 1
|
|
|
42
|
70381
|
Smoker box assembly
|
|
|
43
|
70187
|
Chipper grate, Summit '07 smoker
|
|
|
44
|
70307
|
Smoker burner tube, Summit '07
|
|
|
45
|
70866
|
Sear burner tube kit, Summit 670
|
|
|
46
|
70397
|
NG side burner assembly, Summit '07
|
|
|
46
|
91174
|
Ignition assembly for side burner
|
|
|
46
|
67765
|
Hardware for side burner table, Genesis
|
|
|
46
|
91173
|
Side burner ring
|
|
|
46
|
30125801
|
Control knob, side burner, grey
|
|
|
46
|
81252
|
Rubber lid bumper for side burner (Qty 1)
|
|
|
46
|
91175
|
Side burner cap, Summit '03
|
|
|
47
|
60600
|
Hardware for cookbox, Summit '10
|
|
|
47
|
70339
|
Silicone bumpers, quantity 4
|
|
|
47
|
64849
|
Flavorizer bar brackets, Summit cookbox 6 burner
|
|
|
47
|
64847
|
Cookbox, Summit 660/670 '13
|
|
|
48
|
88212
|
Hardware for bulkhead, Summit '07
|
|
|
48
|
70345
|
NG bulkhead with regulator
|
|
|
49
|
70309
|
Corrugated gas line, main, Summit
|
|
|
50
|
67764
|
Hinge rod and clip for side burner lid, Genesis '07
|
|
|
50
|
66463
|
Side burner lid w/hardware, Summit '17
|
|
|
51
|
62773
|
Hardware for table assembly, Genesis 300 series, '11
|
|
|
51
|
66322
|
Side burner table assembly, SS '17
|
|
|
52
|
81803
|
Small hardware pack
|
|
|
52
|
70349
|
RHS tool holder with hardware
|
|
|
53
|
70371
|
Transfer line for side burner
|
|
|
54
|
62776
|
Hardware for frame/rear panel, Genesis '11
|
|
|
54
|
70351
|
Frame connector and hardware, Summit 6 burner
|
|
|
55
|
70353
|
Rear panel, NG Summit 600 series
|
|
|
55
|
70332
|
Adjustable door hinge
|
|
|
56
|
79498
|
RHS frame assembly, Summit E/S 400-600 NG, export
|
|
|
57
|
66349
|
Natural gas hose, 1/2"
|
Voir maintenant175,99 $
|
|
57
|
42144
|
1/2" Quick disconnect fitting
|
|
|
58
|
81544
|
Match holder
|
|
|
59
|
79499
|
Caster w/out lock, Genesis (2012-2016), Summit (2012-2019)
|
|
|
60
|
79500
|
Locking caster, Genesis (2012-2016), Summit (2012-2019)
|
Voir maintenant34,99 $
|
|
410
|
56826
|
Addendum for Mexico (Required for Mexico only)
|
|
|
410
|
52720
|
Literature Kit, Summit 670 NG, US/CA/MX
|
|
|
410
|
48454
|
Assembly Guide, Summit 670 LP '16
|
|
|
410
|
59804
|
Literature kit, Summit 670 NG, '17
|
|
|
470
|
62773
|
Hardware for table assembly, Genesis 300 series, '11
|
|
|
470
|
67764
|
Hinge rod and clip for side burner lid, Genesis '07
|
|
|
470
|
81803
|
Small hardware pack
|
|
|
470
|
88063
|
Hardware for tank blocker
|
|
|
470
|
88210
|
Hardware for burner tubes, Genesis/Summit '07
|
|
|
470
|
88231
|
Hardware kit for control panel, Summit '11
|
|
|
470
|
60600
|
Hardware for cookbox, Summit '10
|
|
|
470
|
67762
|
Hardware kit for bottom panel
|
|
|
470
|
70392
|
Hardware for IR cover
|
|
|
470
|
84280
|
Hardware kit, Summit '11
|
|
|
470
|
88208
|
Hardware for bezels/control panel
|
|
|
470
|
88212
|
Hardware for bulkhead, Summit '07
|
|
|
470
|
62776
|
Hardware for frame/rear panel, Genesis '11
|
|
|
470
|
67765
|
Hardware for side burner table, Genesis
|
|
|
470
|
84116
|
Rotisserie hardware for tuckaway rotisserie, w/forks, '10
|
|
|
470
|
88067
|
Manifold hardware, Summit '07
|
|
|
470
|
88211
|
Retainer clip for thermocouple/wires
|
|
|
480
|
91174
|
Ignition assembly for side burner
|
|
|
480
|
84269
|
Table reinforcement plate kit
|
|
|
480
|
70379
|
Catch pan kit
|
|
|
510
|
7404
|
Griddle for Summit E/S 420/670
|
|
|
510
|
7585
|
Gourmet BBQ System Cooking Grate, Summit series
|
|
|
510
|
7617
|
Weber Elevations Tiered Cooking System Expansion Rack
|
|
|
510
|
8836
|
Weber Original Gourmet BBQ System Pizza Stone
|
|
|
510
|
7109
|
Cover, Summit 600 series
|
|
|
510
|
7577
|
Weber Style Premium Cast-Iron Plancha Summit 400/600 Series
|
|
|
510
|
7616
|
Weber Elevations Tiered Cooking System Basket with Frame
|
|
|
510
|
8834
|
Weber Original Gourmet BBQ System Sear Grate
|
|
|
510
|
8841
|
Weber Original Gourmet BBQ System Ebelskiver - discontinued
|
|
|
510
|
6498
|
Drip pan (qty 10) Large Grills
|
Voir maintenant20,99 $
|
|
510
|
7421
|
Weber Original Gourmet BBQ System Griddle
|
|
|
510
|
7615
|
Weber Elevations Tiered Cooking System Grill Rack and Skewer Set
|
|
|
510
|
7618
|
Weber Elevations Tiered Cooking System 4-Piece Skewer Set
|
|
|
510
|
8838
|
Weber Original Gourmet BBQ System Poultry Roaster
|
|
