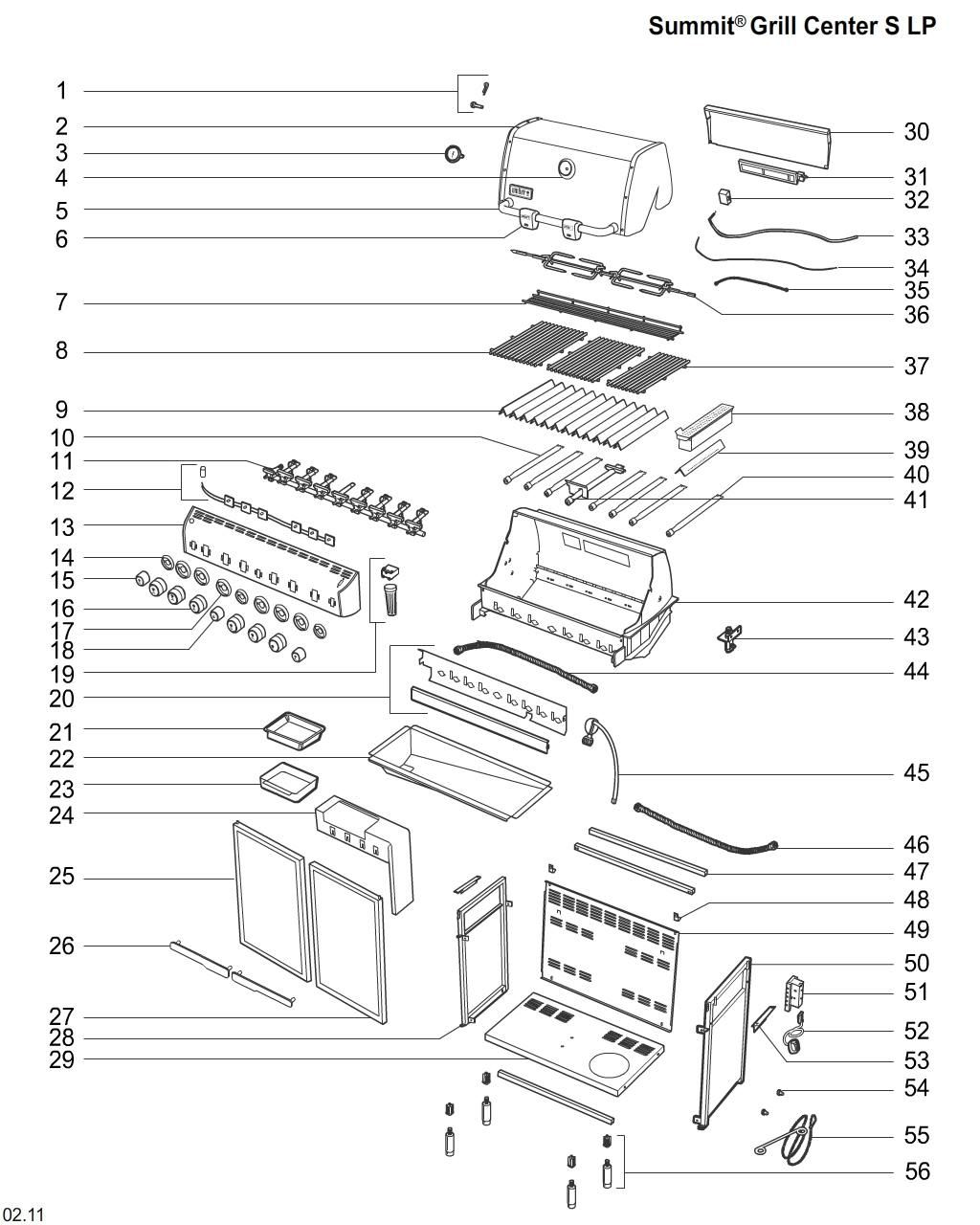

  • Schematic Image 9291001

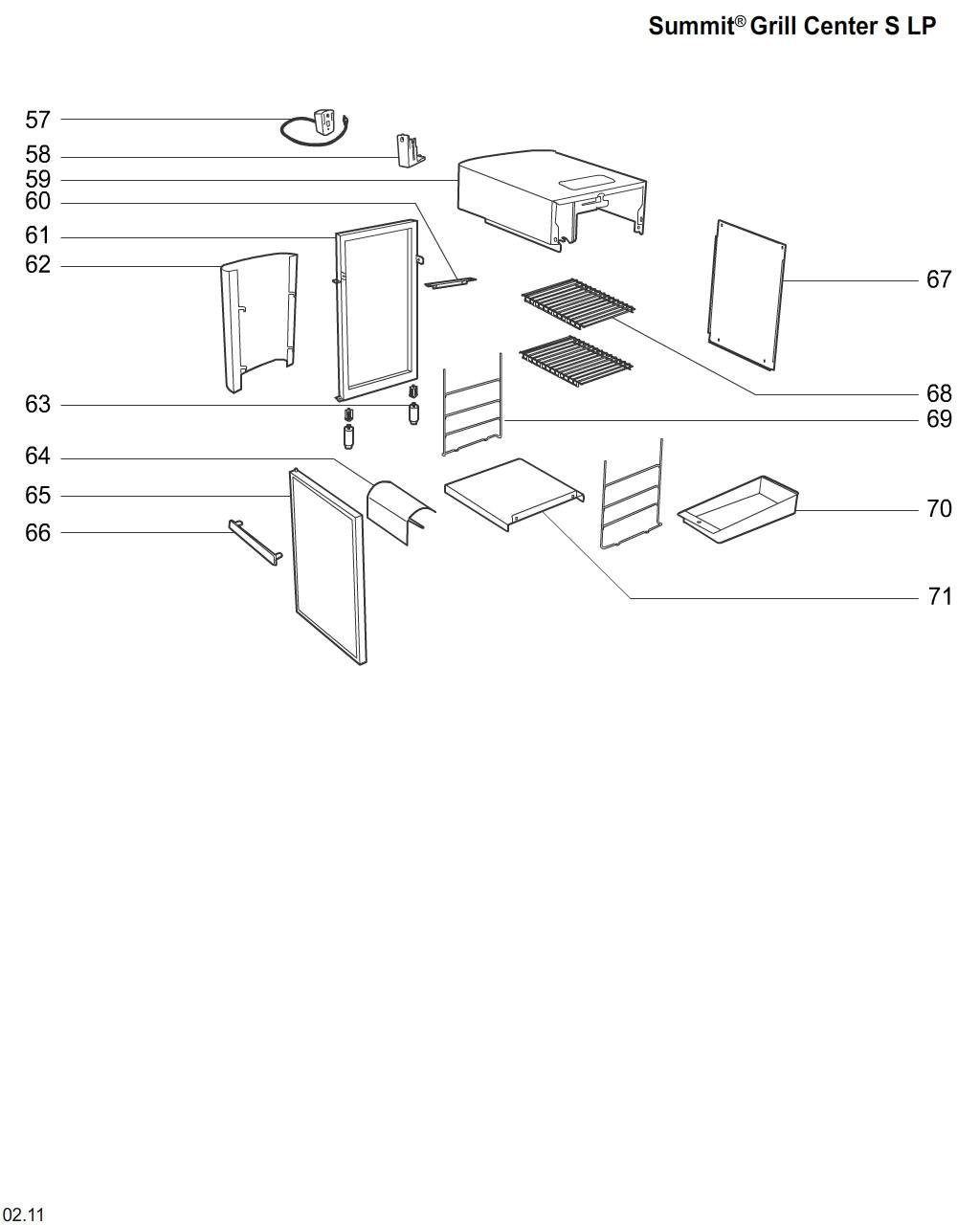

  • Schematic Image 9291001

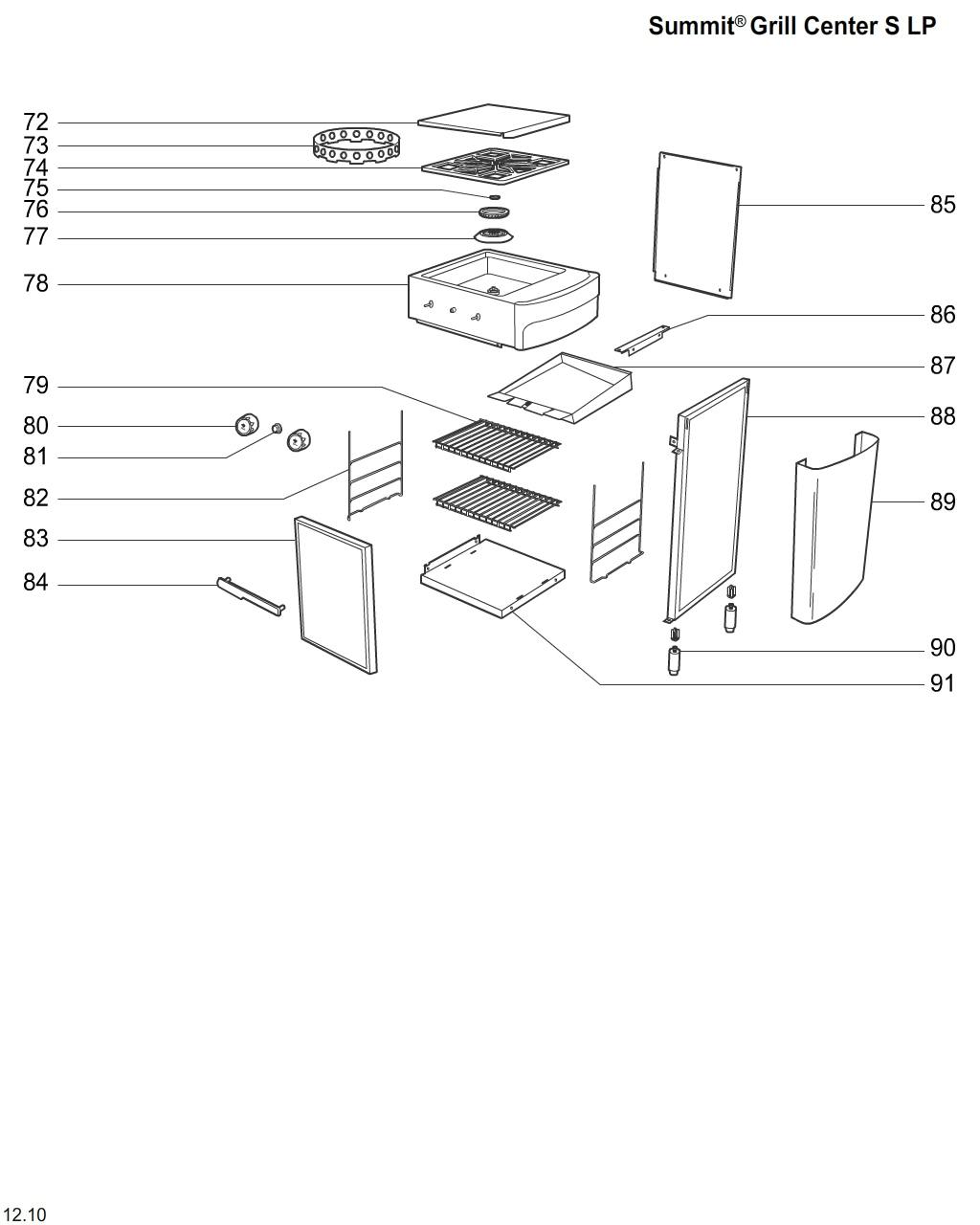

  • Schematic Image 9291001
  • Summit Grill Center LP SS
  • 9291001

Additional Parts

Seq Part # Description View Online
A 48972 Literature Kit, Summit Grill Center LP, US/CA '15
B 60600 Hardware for cookbox, Summit '10
B 67764 Hinge rod and clip for side burner lid, Genesis '07
B 81315 Ignition module, Genesis
B 85630 Hardware (.035 plastic plug/screw)
B 85639 Hardware for side burner, Summit Grill Center (4 pack)
A 48588 Literature Kit, Summit Grill Center LP '16
A 56563 Literature kit, Summit Grill Center LP, '11
B 62776 Hardware for frame/rear panel, Genesis '11
B 70392 Hardware for IR cover
B 85628 Hardware (J-nut/washer/screw, ss)
B 85632 Hardware for side burner/tuck away rotisserie table, Summit Grill Center, '11
A 56559 Assembly guide, Summit Grill Center LP, '11
B 62366 Hardware for shelf bracket, Genesis module '11
B 70379 Catch pan kit
B 85631 Hanger for rotisserie shaft, Summit Grill Center, '11
B 85644 Hardware for knob hanger, Summit Grill Center
B 88065 Glide buttons and hardware
B 88212 Hardware for bulkhead, Summit '07
B 88968 Hardware, Summit rotisserie, including forks, '10
B 88063 Hardware for tank blocker
B 88210 Hardware for burner tubes, Genesis/Summit '07
B 88231 Hardware kit for control panel, Summit '11
B 88067 Manifold hardware, Summit '07
B 88229 Hardware kit for LED sensor, Summit '11
1 70302 Hardware kit, Summit Lid
2 66513 Logo plate, SS
2 66380 Lid assembly, SS, Summit 600 series
3 67088 Thermometer, '18
4 67717 Bezel for Genesis/Summit, '07
5 70369 Handle with bezels/spacers/hardware, Summit 600 series
5 65908 Hardware pack for handle
6 69273 Handle light
7 70190 Warming rack, Summit 600 '07 View Now$73.99
8 70372 Rod-style grate, SS, 11.8", qty. 1
9 70375 Flavorizer bars, SS, set of 4
10 70306 Single burner tube for main burner, Summit '07, qty 1
11 79175 LP manifold assembly, Summit 670/Summit Grill Center
11 88067 Manifold hardware, Summit '07
12 70882 Wiring harness, Summit 670
12 70189 Momentary light switch, Summit '11
13 88231 Hardware kit for control panel, Summit '11
13 66328 Control panel, SS, Summit 670/Grill Center '17
14 70883 Small bezel w/fasteners, Summit 470/670
14 88208 Hardware for bezels/control panel
15 91538 Lighted control knob assembly, qty 2 (2012 and later models)
16 70867 Lighted control knob assembly, qty. 2 (pre-2012 models)
17 88208 Hardware for bezels/control panel
17 70318 Bezel for main burners with hardware
18 70868 Sear knob assembly View Now$22.99
19 70880 Battery pack housing
19 70879 Battery pack head
20 70874 Heat shield/water baffle, Summit 670
20 88210 Hardware for burner tubes, Genesis/Summit '07
21 6498 Drip pan (qty 10) Large Grills
22 70113 Grease tray, Summit 600 '11, SS
23 70379 Catch pan kit
24 88063 Hardware for tank blocker
24 70322 Tank blocker (catch pan holder), Summit 600 series
25 66336 LHS door assembly, SS, Summit S-600 '17
26 70327 Door handles with hardware
27 66274 RHS door assembly, SS, Summit S-600 '17
28 85690 LHS frame assembly for storage area, Summit Grill Center
28 70332 Adjustable door hinge
29 85628 Hardware (J-nut/washer/screw, ss)
29 91318 Bottom panel, Summit 6 burner LP, '10
30 67513 IR cover, Summit 6 burner, black
30 43291 IR Burner black plastic tubing/wire wrap, Summit '14
30 70392 Hardware for IR cover
31 70389 IR burner with bracket
31 70384 LP Orifice for IR burner, with nut, 30mb
32 70338 Cover box for IR burner
33 6021713 NUT M8 X 1 HEX BRASS
33 70390 Thermocouple with electrode and wire
34 6021713 NUT M8 X 1 HEX BRASS
34 70390 Thermocouple with electrode and wire
35 70398 Gas line for IR burner, 64"
36 88968 Hardware, Summit rotisserie, including forks, '10
36 80647 Rotisserie shaft, Summit E/S 600 series, '12
36 70380 Screws for rotisserie forks, qty 4
37 70373 Rod-style grate, SS, 8.1", qty. 1
38 70381 Smoker box assembly
39 70187 Chipper grate, Summit '07 smoker
40 70307 Smoker burner tube, Summit '07
41 70866 Sear burner tube kit, Summit 670
42 60600 Hardware for cookbox, Summit '10
42 70339 Silicone bumpers, quantity 4
42 64849 Flavorizer bar brackets, Summit cookbox 6 burner
42 64847 Cookbox, Summit 660/670 '13
43 88212 Hardware for bulkhead, Summit '07
43 70344 LP bulkhead assembly
44 70309 Corrugated gas line, main, Summit
45 65572 QCC1 Hose & Regulator LP, 37"
46 84206 Transfer line for side burner, Summit Grill Center
47 62776 Hardware for frame/rear panel, Genesis '11
47 70351 Frame connector and hardware, Summit 6 burner
48 85631 Hanger for rotisserie shaft, Summit Grill Center, '11
49 70354 Rear panel, LP Summit 600 series
49 85628 Hardware (J-nut/washer/screw, ss)
50 85689 RHS frame assembly for storage area, Summit Grill Center
50 70332 Adjustable door hinge
51 70199 Tank scale assembly with magnet, '11
52 88229 Hardware kit for LED sensor, Summit '11
52 70983 LED display and sensor, Summit '11
53 62366 Hardware for shelf bracket, Genesis module '11
53 62354 Bracket for top shelf, Genesis module '11
54 88065 Glide buttons and hardware
55 81544 Match holder
56 85691 Adjustable leg w/insert, Summit Grill Center, '12
57 65579 Rotisserie motor, Type B, '15
58 66339 Tuck away rotisserie bracket
59 85632 Hardware for side burner/tuck away rotisserie table, Summit Grill Center, '11
59 66341 Tuck away rotisserie table, SS , Summit Grill Center '17
59 85644 Hardware for knob hanger, Summit Grill Center
60 62366 Hardware for shelf bracket, Genesis module '11
60 62354 Bracket for top shelf, Genesis module '11
61 85692 Frame for LHS storage area, Summit Grill Center, '12
61 85628 Hardware (J-nut/washer/screw, ss)
62 66331 LHS skirt end, Summit Grill Center '17
63 85691 Adjustable leg w/insert, Summit Grill Center, '12
64 85630 Hardware (.035 plastic plug/screw)
64 85600 Paper towel rack, Summit Grill Center '11
65 66381 LHS door assembly, SS, Summit Grill Center '17
66 70327 Door handles with hardware
67 85591 Rear panel for Summit Grill Center w/RHS or LHS Social Area, gray
67 85669 Rear panel for LHS storage area, Summit Grill Center, SS
67 85628 Hardware (J-nut/washer/screw, ss)
68 85607 Wire shelf (set of 2), Summit Grill Center
69 85601 Shelf rack (set of 2), Summit Grill Center
69 62366 Hardware for shelf bracket, Genesis module '11
70 85570 Rain baffle for tuck-away rotisserie, Summit Grill Center, '11
70 85628 Hardware (J-nut/washer/screw, ss)
71 85628 Hardware (J-nut/washer/screw, ss)
71 85584 Bottom panel for LHS storage area, Summit Grill Center, '11
72 66333 Side burner lid, SS, Summit Grill Center
73 85603 Wok ring, Summit Grill Center
74 85578 Porcelain-enameled cast iron grate for side burner, Summit Grill Center
78 85632 Hardware for side burner/tuck away rotisserie table, Summit Grill Center, '11
78 85605 LP side burner assembly, Summit Grill Center
78 85644 Hardware for knob hanger, Summit Grill Center
78 66338 Side burner table, SS, Summit Grill Center
78 85639 Hardware for side burner, Summit Grill Center (4 pack)
79 85607 Wire shelf (set of 2), Summit Grill Center
80 30128803 Control knob assembly for dual ring side burner, Summit Grill Center
80 70883 Small bezel w/fasteners, Summit 470/670
81 65070 Side burner igniter kit, Summit Grill Center
81 81316 Button for ignition module, gray (snap-fit style)
81 81315 Ignition module, Genesis
82 62366 Hardware for shelf bracket, Genesis module '11
82 85601 Shelf rack (set of 2), Summit Grill Center
83 66262 RHS door assembly, SS, Summit Grill Center '17
84 70327 Door handles with hardware
85 85628 Hardware (J-nut/washer/screw, ss)
85 85591 Rear panel for Summit Grill Center w/RHS or LHS Social Area, gray
86 62354 Bracket for top shelf, Genesis module '11
86 62366 Hardware for shelf bracket, Genesis module '11
87 85628 Hardware (J-nut/washer/screw, ss)
87 85569 Rain baffle for side burner, Summit Grill Center
88 85693 Frame for RHS storage area, Summit Grill Center, '12
88 85628 Hardware (J-nut/washer/screw, ss)
89 66332 RHS skirt end, Summit Grill Center '17
90 85691 Adjustable leg w/insert, Summit Grill Center, '12
91 85628 Hardware (J-nut/washer/screw, ss)
91 85585 Bottom panel for RHS storage area, Summit Grill Center, '11
410 56563 Literature kit, Summit Grill Center LP, '11
410 56559 Assembly guide, Summit Grill Center LP, '11
410 58916 Assembly Guide, Summit Grill Center Module
410 48972 Literature Kit, Summit Grill Center LP, US/CA '15
470 60600 Hardware for cookbox, Summit '10
470 70392 Hardware for IR cover
470 85630 Hardware (.035 plastic plug/screw)
470 85644 Hardware for knob hanger, Summit Grill Center
470 88208 Hardware for bezels/control panel
470 88212 Hardware for bulkhead, Summit '07
470 88968 Hardware, Summit rotisserie, including forks, '10
470 62776 Hardware for frame/rear panel, Genesis '11
470 85628 Hardware (J-nut/washer/screw, ss)
470 85639 Hardware for side burner, Summit Grill Center (4 pack)
470 88067 Manifold hardware, Summit '07
470 88211 Retainer clip for thermocouple/wires
470 88231 Hardware kit for control panel, Summit '11
470 62366 Hardware for shelf bracket, Genesis module '11
470 84116 Rotisserie hardware for tuckaway rotisserie, w/forks, '10
470 85632 Hardware for side burner/tuck away rotisserie table, Summit Grill Center, '11
470 88065 Glide buttons and hardware
470 88210 Hardware for burner tubes, Genesis/Summit '07
470 88229 Hardware kit for LED sensor, Summit '11
480 70379 Catch pan kit
510 7421 Weber Original Gourmet BBQ System Griddle View Now$71.99
510 8834 Weber Original Gourmet BBQ System Sear Grate View Now$72.99
510 8841 Weber Original Gourmet BBQ System Ebelskiver - discontinued
510 7404 Griddle for Summit E/S 420/670
510 7585 Gourmet BBQ System Cooking Grate, Summit series
510 8838 Weber Original Gourmet BBQ System Poultry Roaster View Now$98.99
510 7561 Cover for Summit Grill Center
510 8836 Weber Original Gourmet BBQ System Pizza Stone View Now$72.99
